Payment & Shipping Terms:
|AC Inlet::||C14, C8, C6, C18||Watt:||90-130W|
|Standard:||UL/cUL UL60601, TUV EN60601, CB IEC60601, CE, FCC||Dimensions (L X W X H)::||137L X 59W X 34H(mm)|
|Weight::||450g||Universal AC Input:||100 To 240 VAC|
UL60601, EN60601, IEC60601 Standard 90~130W Series Desktop Medical Power Supply For Medical Ventilator
．Power range: 80~130W
．Universal AC input 100 to 240 VAC
．Frequency: 50 to 60Hz
．Output voltage available from 5 to 48 VDC
[Class II]: UL/cUL UL60601, TUV EN60601, CB IEC60601, CE, FCC
[Class I ]: UL/cUL UL60601
．All models meet RoHS and WEEE
．Case Size: 137L x 59W x 34H(mm)

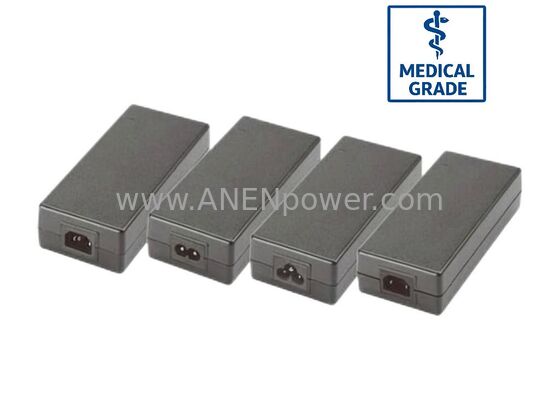

．AC Inlet: C14, C8, C6, C18
• Active PFC Function
• DoE Compliance
• RoHS Compliance
• Over Voltage Protective Installation
• Over Current Protective Installation
• Over Temperature Protective Installation
• Short Circuit Protective Installation
• LED Indication
• MTBF > 50,000 hours
|MODEL No.||Max. Output Power (W)||Output Voltage (vo)||Min.Load (io)||Max. Load (io)||Load Regulation||Line Regulation||Ripple& Noise|
|EM1101xB||90W||12~16V||0A||7.5A||± 5%||± 1%||240mV|
|EM1101xC||90W||19~24V||0A||4.73A||± 5%||± 1%||360mV|
|EM1101xD||100W||12~16V||0A||8.33A||± 5%||± 1%||240mV|
|EM1101xE||100W||19~24V||0A||5.26A||± 5%||± 1%||360mV|
|EM1101xF||110W||12~16V||0A||9.16A||± 5%||± 1%||240mV|
|EM1101xG||110W||19~24V||0A||5.78A||± 5%||± 1%||360mV|
|EM1101xH||120W||12~16V||0A||10A||± 5%||± 1%||240mV|
|EM1101xM||120W||19~24V||0A||6.31A||± 5%||± 1%||360mV|
|EM1101xN||100W||48~56V||0A||2.08A||± 5%||± 1%||840mV|
|EM1101xP||130W||48~56V||0A||2.70A||± 5%||± 1%||840mV|
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) = Vo x Io
4 : LED according to customer needs.
1, Custom designed power supply developed and manufactured by us, Our main products including: Medical Power Supplies, Switching Power Supplies, AC/DC Adapters, Waterproof LED Power Supplies, USB-PD Adapters, Battery Chargers,etc.
2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.
3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.
4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.
5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.
6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.
5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It’s 2 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us: firstname.lastname@example.org
