15W Medical Power Adapter 5V3A / 12V1.25A IEC60601-1 Approved for Medical Devices

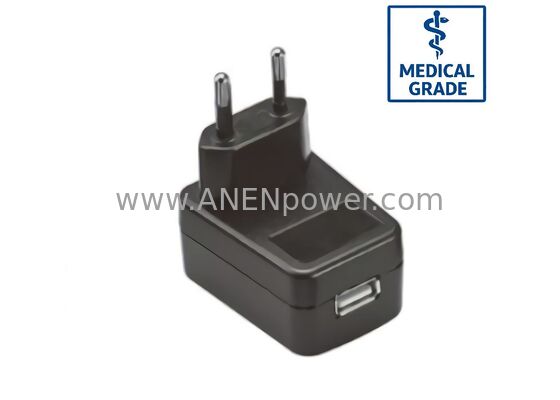

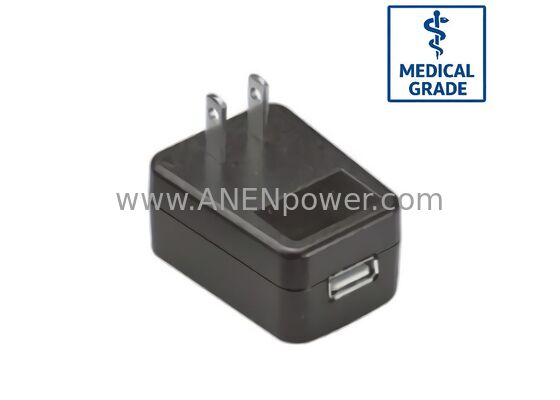

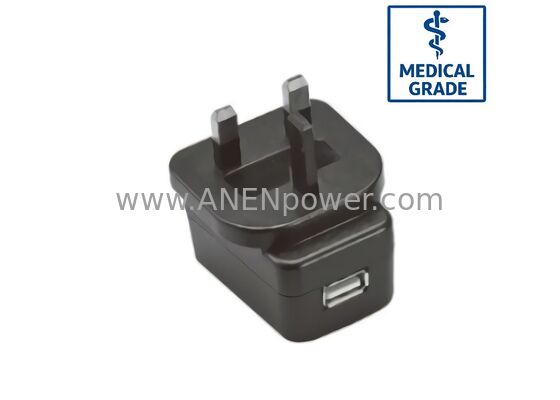

15W Medical Wall-Plug AC/DC Adapter: 5V 3A / 12V 1.25A Ultra-Safe Power Solution

Product Overview

The 15W Medical Wall-Plug AC/DC Adapter is a precision-engineered, clinical-grade power solution designed to support the high-reliability demands of modern healthcare electronics. Delivering a high-current 5V 3A or a stable 12V 1.25A output, this adapter is the premier power choice for Portable Patient Monitors, Medical Tablets, and Digital Diagnostic Imaging Hubs.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). Its advanced safety architecture ensures double-layered reinforced insulation and an ultra-low leakage current design, providing absolute safety for patients and clinicians during active monitoring or treatment. Its compact, wall-plug form factor is optimized for space-constrained clinical workstations and home-care environments, providing a secure, interference-free link between the power grid and sensitive medical electronics.

Key Specifications

Our 15W medical series maximizes patient protection while ensuring consistent power delivery for high-current digital processors and sensitive sensor arrays.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 15W Continuous Maximum.

• Standard Output Options:

  • 5V 3A (Optimized for USB-C and logic-heavy medical tablets).

  • 12V 1.25A (Ideal for desktop oximetry hubs and monitoring logic).

• Other Available Outputs:

  • 9V 1.66A

  • 15V 1A

  • 18V 0.83A

  • 24V 0.62A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Home Healthcare Standard: Certified to IEC 60601-1-11 (Safety for home-use medical equipment).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care zones.

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring long-term durability for clinical environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 15W medical-grade output is optimized for high-sensitivity diagnostic and therapeutic electronics:

• Patient Monitoring: Portable vital signs monitors, bedside telemetry systems, and mobile nursing displays.

• Diagnostic Devices: Handheld ultrasound displays, portable ECG recorders, and digital capnography units.

• Therapy Equipment: Mid-power TENS Therapy Units and clinical Therapy Units.

• Rehabilitation: Advanced motorized Rehabilitation Devices and massage controllers.

• Home Healthcare: Automated health tracking stations and remote patient monitoring (RPM) gateways.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Digital-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting the integrity of high-speed digital signals and sensitive physiological data.

• High-Current Stability: Engineered to maintain precise voltage regulation even during the peak power spikes of wireless data transmission (Wi-Fi/Bluetooth).

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
