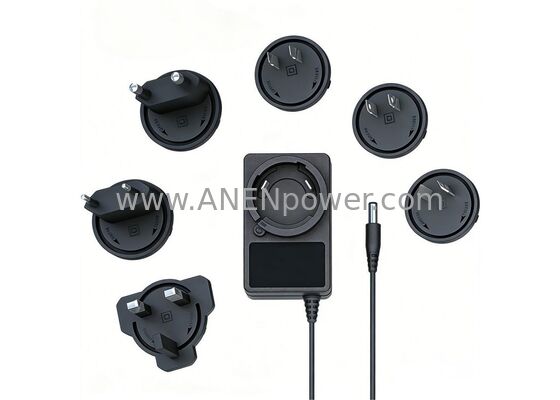

24W Max Removeable Plug SMPS 12V 2A AC Adapter 24V 36VA Wall Transformer 48V Power Supply
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 To 240V AC , 50 / 60Hz | Output Power: | 24W Max |
|---|---|---|---|
| Output Range: | 5 ~ 48V / 500mA ~ 3000mA | MTBF: | 100,000 Calculated Hours |
| Certificates: | UL/cUL, FCC, CB, GS, CE, TUV, PSE, KC, KCC, SAA, RCM, UKCA | Application: | Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments |
24W Max Removeable Plug SMPS 12V 2A AC Adapter 24V 36VA Wall Transformer 48V Power Supply
APS24H is a 24W compact size highly reliable Detachable style single-output green adaptor series, which is compact and convenient for carry. APS24H is a class II power unit, accepting the input range from 100VAC to 240VAC. The whole series provides different models with output voltages ranging between 5VDC and 48VDC that it can satisfy the demands for various types of consumer electronic devices.
APS24H is compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
1, Extreme small and space-saving, takes up one spot on power strip
2, AC input power suitable for the world
3, Meet DOE/CEC/ERP Level VI
4, Over voltage, over current, short circuit and over load protection
5, Per pieces adapter is 100% full load -burn in test (4 hours)
6, All the products have passed the full load test process aging
7, Low interference & noise
8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347
9, Certification: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA
| Datasheet | |
| Input | 100 to 240V AC , 50 / 60Hz |
| Output power | 24W max |
| Output Range | 5 ~ 48V / 500mA ~ 3000mA |
| Protection | Overload protection |
| Over voltage protection | |
| Short circuit protection | |
| Safety Approvals | UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA |
| Standard | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 |
| Efficiency | Level VI |
| AC plug | EU / US / UK / AU and Others for your selection |
| Standard DC Connector | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside |
| Operating Temperature Range | 0--40°C |
| Storage Temperature Range | -20 --- 85°C |
| High Humidity Operation | + 40 °C and 90 ~ 95% Humidity |
| Net weight | About 120g per unit |
| MTBF | 100,000 hours |
| Application | Water purifier, LED, Medical machine, CCTV camera, LCD, Set-top box, DVR, Router, Modem, etc . |
| Packing | PE bag + Carton or White Box + Carton or As your Request |
