12W Medical Power Adapter 5V2.4A / 24V0.5A IEC60601 Certified Low Leakage Current

12W Medical Wall-Plug AC/DC Adapter: 5V 2.4A / 24V 0.5A Ultra-Safe Power Solution

Product Overview

The 12W Medical Wall-Plug AC/DC Adapter is a high-performance, clinical-grade power solution specifically engineered for the reliability and patient-safety demands of modern diagnostic and monitoring systems. Delivering either high-current 5V 2.4A or high-voltage 24V 0.5A stability, this adapter is the premier power choice for Handheld Diagnostic Devices, Portable Patient Monitors, and Micro-Actuator Systems.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). Its specialized internal architecture achieves an Ultra-Low Leakage Current, ensuring absolute safety for patients in direct contact with medical sensors. Its compact, wall-plug form factor is optimized for space-constrained clinical workstations and home-care environments, providing a secure, interference-free link between the power grid and sensitive digital electronics.

Key Specifications

Our 12W medical series maximizes patient protection while ensuring consistent power delivery for high-sensitivity digital sensors and micro-controllers.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 12W Continuous Maximum.

• Standard Output Options:

  • 5V 2.4A (Optimized for USB-powered medical logic and tablets).

  • 24V 0.5A (Ideal for high-precision micro-motors and sensors).

• Other Available Outputs:

  • 5V 2A

  • 9V 1.33A

  • 12V 1A

  • 15V 0.8A

  • 18V 0.66A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Home Healthcare Standard: Certified to IEC 60601-1-11 (Safety for home-use medical equipment).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care zones.

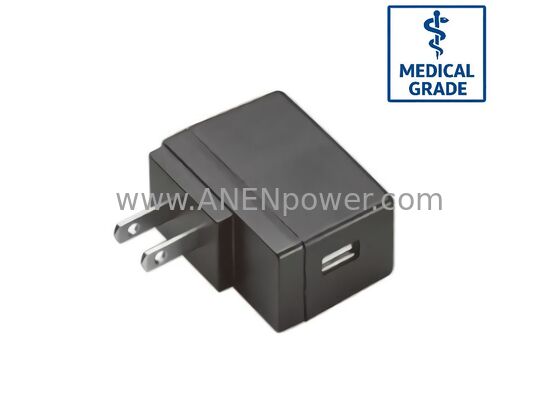

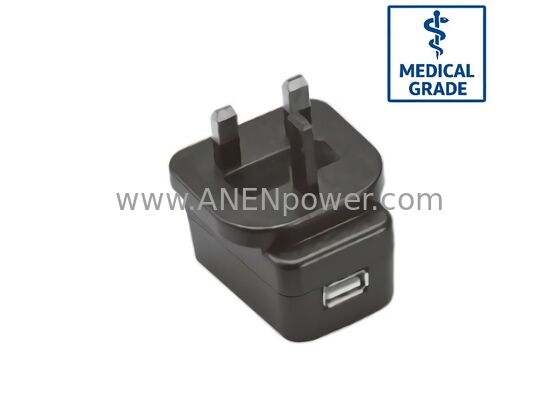

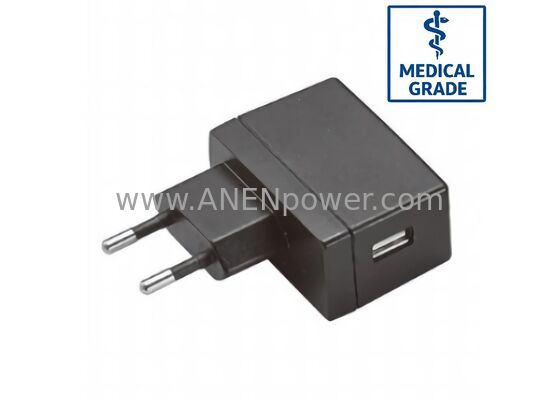

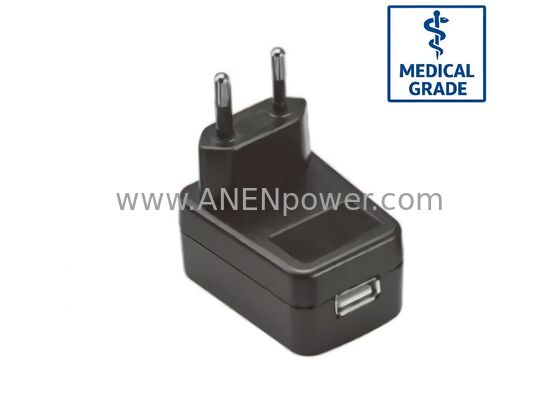

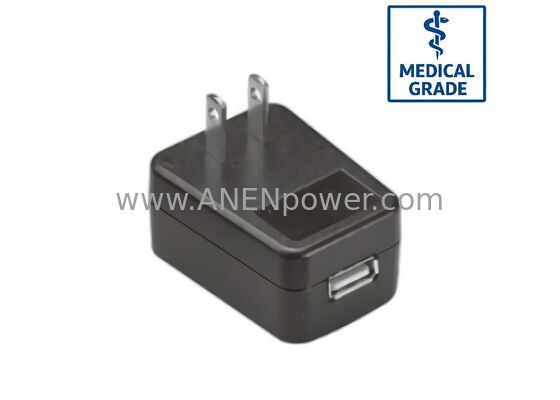

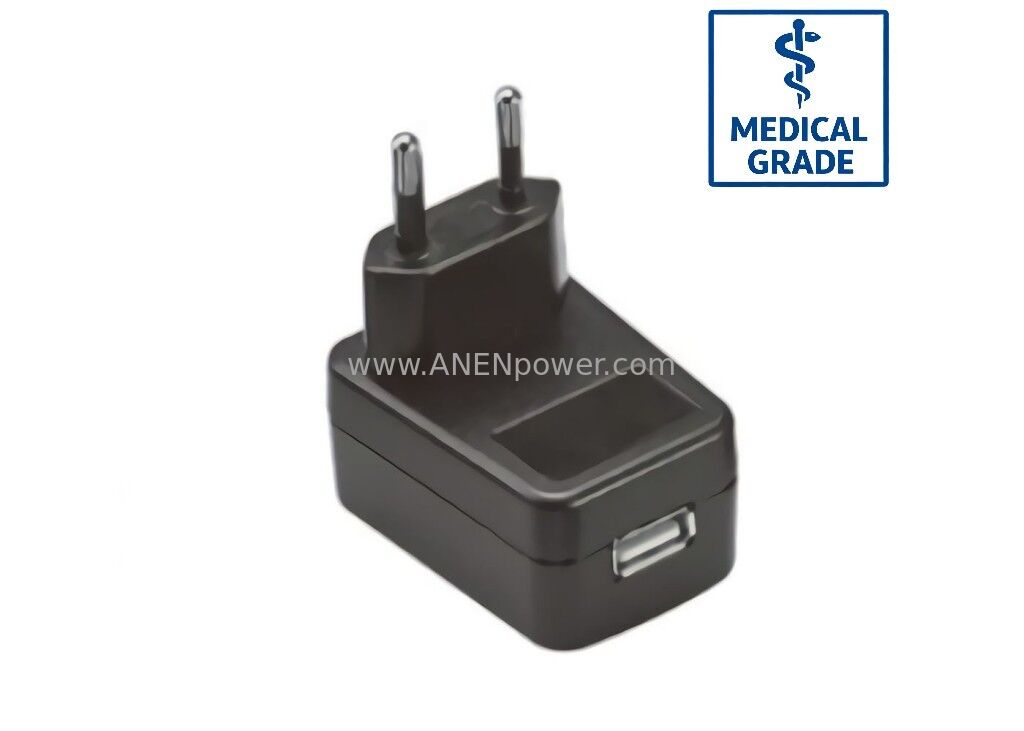

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring long-term durability for clinical environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 12W medical-grade output is optimized for high-sensitivity diagnostic and therapeutic electronics:

• Monitoring Devices: Portable pulse oximeters, handheld blood pressure monitors, and bedside telemetry hubs.

• Diagnostic Monitoring: Handheld ECG recorders, digital thermometers, and smart wearable trackers.

• Therapy Equipment: Mid-power TENS Therapy Units and clinical Therapy Units.

• Rehabilitation: Portable massage controllers and micro Rehabilitation Devices.

• Infusion Systems: Control logic for micro-syringe pumps and enteral feeding hubs.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical or home-care use.

• Sensor-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive physiological data and digital conversions.

• Precision Voltage Regulation: Engineered to maintain tight output tolerances, essential for high-accuracy diagnostic imaging and measurement.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
