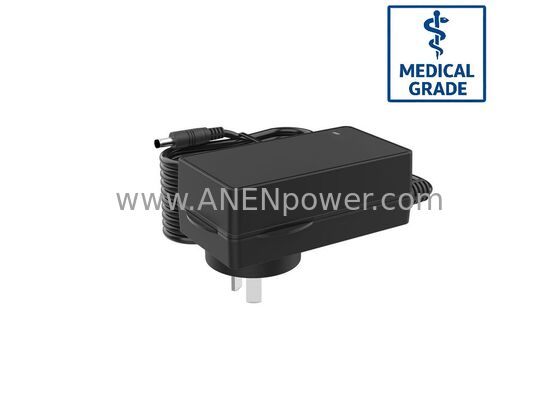

48W Medical Power Supply Adapter, 48V 1A Output for Medical Imaging System

48W Medical Wall-Plug AC/DC Adapter: 48V 1A Ultra-Safe Power Solution

Product Overview

The 48W Medical Wall-Plug AC/DC Adapter is a high-precision, clinical-grade power solution specifically engineered for the rigorous performance and safety demands of advanced diagnostic imaging. Delivering a stable 48V 1A output, this adapter is the premier power choice for Medical Imaging Systems, Portable Ultrasound Scanners, and Advanced Clinical Sensors.

Built to the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). It provides double-layered reinforced insulation and an ultra-low leakage current design, ensuring absolute safety for both patients and clinicians, even in high-acuity environments. Its high-voltage 48V rail is optimized to provide the clean, consistent power required by sensitive analog-to-digital conversion circuits and imaging transducers, ensuring maximum diagnostic clarity.

Key Specifications

Our 48W medical series maximizes patient protection while ensuring the high-voltage stability required for high-resolution medical data acquisition.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 48W Continuous Maximum.

• Standard Output: 48V 1A (Optimized for high-voltage imaging rails and PoE-enabled medical devices).

• Other Available Outputs: 12V 4A, 24V 2A, 19V 2.52A.

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in the patient vicinity.

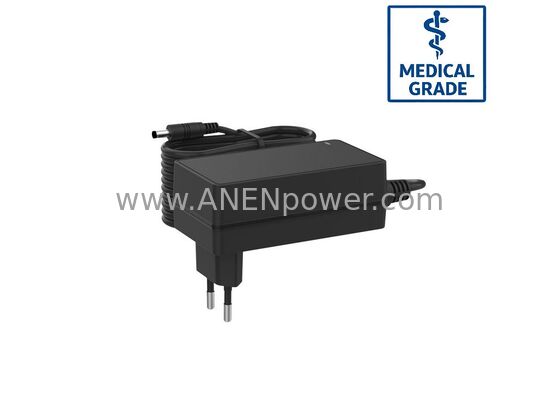

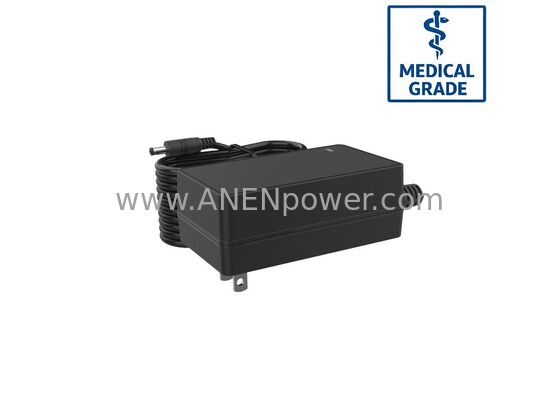

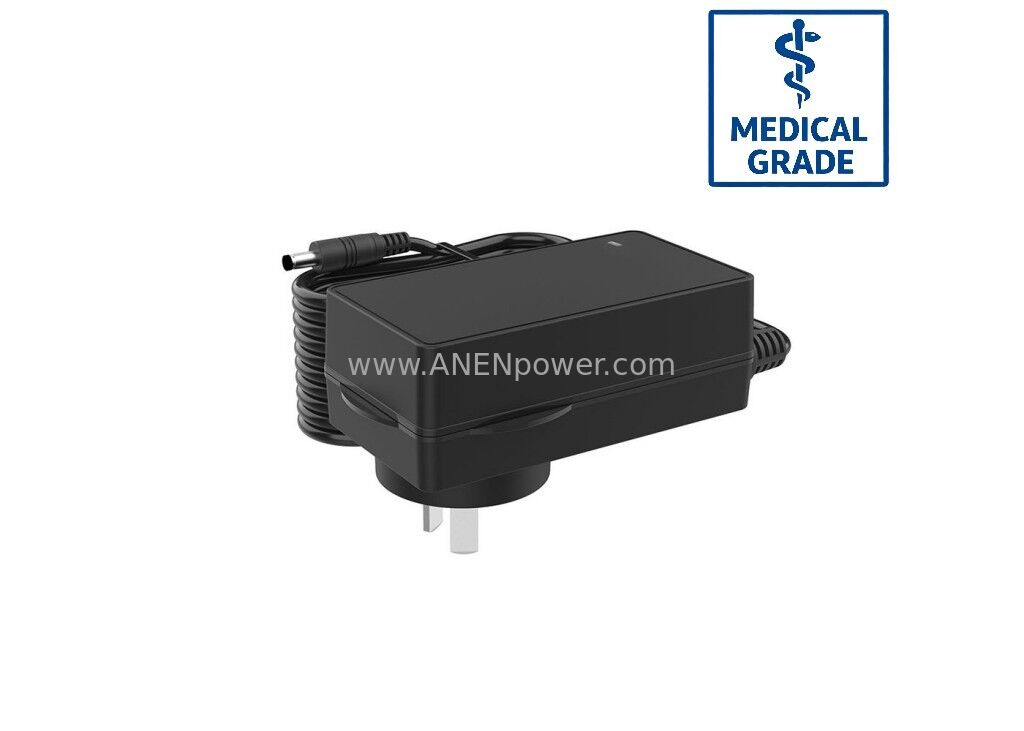

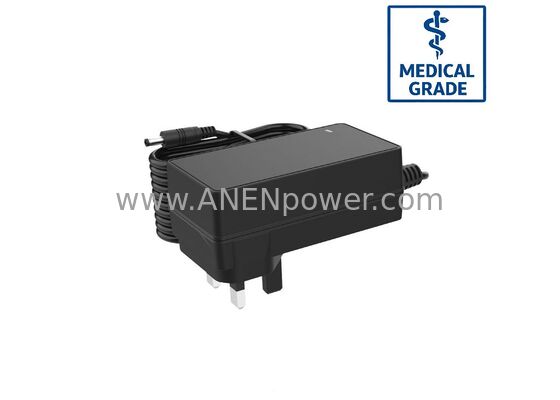

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime for heavy-duty diagnostic use.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 48W medical-grade output is optimized for high-sensitivity imaging and therapeutic electronics:

• Medical Imaging Systems: Portable ultrasound machines, dental X-ray imaging hubs, and optical coherence tomography (OCT) displays.

• Advanced Sensors: High-voltage power for digital radiography detectors and specialized physiological sensors.

• Therapy Equipment: Control logic for laser-based Therapy Units and automated wound therapy systems.

• Rehabilitation: Motorized limb trainers and professional Rehabilitation Devices.

• Clinical Monitoring: High-resolution bedside patient monitors and telemetry base stations.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical imaging procedures.

• Imaging-Grade Noise Suppression: Specialized output filtering to ensure Ultra-Low Ripple & Noise, preventing electronic artifacts from degrading the quality of high-resolution medical scans.

• High-Voltage Stability: Engineered to maintain a precise 48V rail even during the transient load demands of imaging transducers.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
