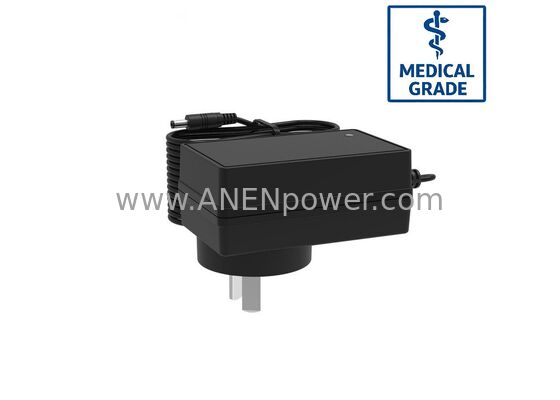

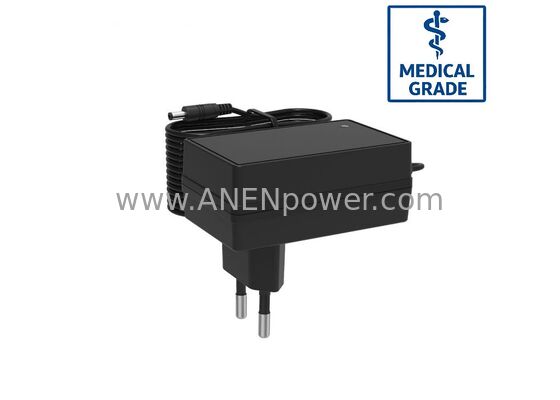

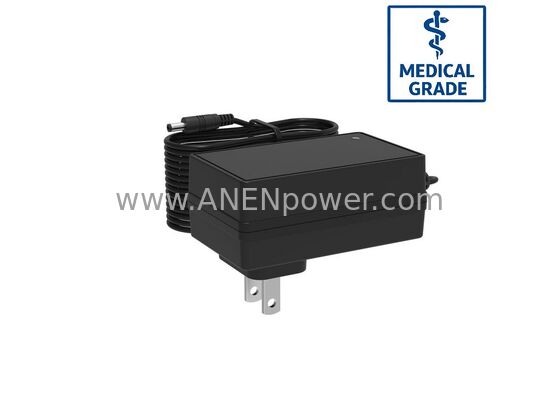

IEC/EN 60601 CE GS certified 36W 12V Medical AC Adapter 24V EU Plug Switching Power Supply

China IEC/EN 60601 CE GS certified 36W 12V Medical AC Adapter 24V EU Plug Switching Power Supply supplier
IEC/EN 60601 CE GS certified 36W 12V Medical AC Adapter 24V EU Plug Switching Power Supply supplier IEC/EN 60601 CE GS certified 36W 12V Medical AC Adapter 24V EU Plug Switching Power Supply supplier IEC/EN 60601 CE GS certified 36W 12V Medical AC Adapter 24V EU Plug Switching Power Supply supplier IEC/EN 60601 CE GS certified 36W 12V Medical AC Adapter 24V EU Plug Switching Power Supply supplier

Large Image :  IEC/EN 60601 CE GS certified 36W 12V Medical AC Adapter 24V EU Plug Switching Power Supply

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENPOWER
Certification: UL/cUL (Medical), CE (MDD/MDR), TUV-GS, CB, FCC, RoHS, REACH
Model Number: APM036

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Contact Now
Detailed Product Description
Input: 100-240Vac, 50/60Hz Output: 36W Max
Isolation Protection: 2 X MOPP Leakage Current: < 100μA
Medical Safety: IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition) Efficiency: DoE Level VI And CoC Tier 2 Energy Standards
MTBF: > 100,000 Hours Certifications: UL/cUL (Medical), CE (MDD/MDR), TUV-GS, CB, FCC, RoHS, REACH

EN 60601 Certified Medical Power Supply 12V 3A 24V 1.5A 36V EU Plug for Portable Ultrasound Diagnostic Devices



EN/IEC 60601 certified medical-grade power supply delivering triple voltage output: 12V 3A, 24V 1.5A, and 36V with EU plug compatibility specifically engineered for portable ultrasound diagnostic systems. This CE certified adapter provides stable, uninterrupted power for critical imaging equipment including ultrasound probes, transducers, and portable scanners requiring hospital-grade reliability. Engineered with medical isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure accurate diagnostics and safe operation in clinical environments. The compact design features thermal protection and precise voltage regulation for continuous use in emergency medical services, point-of-care diagnostics, and field healthcare settings where power stability directly impacts patient imaging quality and diagnostic accuracy. Built to meet stringent European medical safety standards for healthcare professionals requiring certified performance in life-critical ultrasound applications.



• Power Range: 16~36W

• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC

• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 76L x 43W x 30H (mm)
• Weight: 200g



Model NO. MAX OUTPUT POWER OUTPUT VOLTAGE MIN LOAD MAX LOAD LOAD REGULATION LINE REGULATION RIPPLE & NOISE
APM024EA 16W 5-8V 0A 2.0A ±5% ±1% 100mV
APM024EB 18W 5-8V 0A 3.0A ±5% ±1% 100mV
APM024EC 20W 5-8V 0A 4.0A ±5% ±1% 100mV
APM024ED 24W 9-11V 0A 1.5A ±5% ±1% 250mV
APM024EE 27W 9-11V 0A 2.0A ±5% ±1% 250mV
APM024EF 20W 9-11V 0A 3.0A ±5% ±1% 250mV
APM024EG 30W 12-17V 0A 1.66A ±5% ±1% 250mV
APM024EH 24W 12-17V 0A 2.5A ±5% ±1% 250mV
APM024EJ 30W 18-24V 0A 1.33A ±5% ±1% 350mV
APM024EK 30W 18-24V 0A 1.66A ±5% ±1% 350mV
APM024EL 20W 36-48V 0A 0.55A ±5% ±1% 480mV
APM024EM 30W 36-48V 0A 0.83A ±5% ±1% 480mV
APM024EN 36W 12V 0A 3.0A ±5% ±1% 250mV
APM024EP 24W 12V 0A 2.0A ±5% ±1% 250mV
APM024EQ 36W 24V 0A 1.5A ±5% ±1% 350mV
NOTED:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) = Vo x Io
