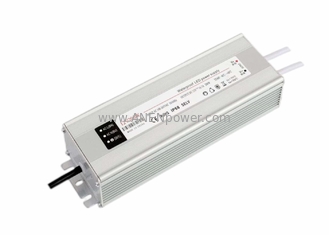

12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100~277Vac, 50/60Hz | Output Power: | 200W Max |
|---|---|---|---|
| Output Voltage: | 12V/ 24V/ 36V /48V | Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
| Standard: | EN/IEC 61347, UL 1310 | Applicants: | LED Lighting Advertising, LED Display, LED Strips, Etc. |
| Warranty: | 3~5 Years | Waterproof Grade: | IP67 / IP68 |
12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
Our 12V/24V/36V/48V Waterproof LED Power Supply is designed to provide reliable power for outdoor lighting applications, featuring a 200W output and an IP67 waterproof rating. Whether for street lighting, garden illumination, or industrial use, this LED driver ensures consistent and stable performance, even in harsh weather conditions.
Built to withstand the toughest environments, this power supply is fully protected against dust and water, making it ideal for outdoor installations. The IP67 rating ensures long-lasting durability, so your LED lighting systems can perform continuously, regardless of rain, snow, or dust.
With multiple voltage options and a 200W output, this LED power supply is versatile enough to support a wide range of lighting needs. It delivers reliable power to high-performance LED fixtures, ensuring smooth operation and extended lifespan for any outdoor lighting project.
| MODEL DETAIL SPEC. | APL200W-12016660 | APL200W-2408330 | APL200W-3605550 | APL200W-4804160 | |
| INPUT | Input Voltage: | 100-240VAC/200-240VAC | |||
| Input Frequency: | 50/60Hz | ||||
| Inrush Current: | 65A/230VAC at full load | ||||
| AC Current: | 2.27A/115VAC 1.14A/230VAC | ||||
| Leakage Current: | ＜0.25mA/240VAC | ||||
| Efficiency: | 88% | ||||
| OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 16.66A | 8.33A | 5.55A | 4.16A | |
| Rated Power: | 200W | ||||
| Voltage Tolerance: | ±5.0% | ||||
| Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
| Line Regulation: | ±3% | ||||
| Load Regulation: | ±5% | ||||
| Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +50 (Refer to "Derating Curve") | |||
| Storage Temp: | -40℃ ~ 85℃ | ||||
| Storage Humidity: | 20 ~ 95% RH | ||||
| Working Humidity: | 20 ~ 95% RH non-condensing | ||||
| PROTECTION | Over Load: | Above 105%-130% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage: | 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V 36V:41.4 ~ 48.6V 48V:55.2~64.8V |
||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
| Withstand Voltage: | I/P-O/P:3.75KVAC | ||||
| Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
| EMI: | Compliance to EN55015 | ||||
| EMS: | compliance to 61547:2009 | ||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
| Size: | 220*70*42mm | ||||
| Weight: | 2600g / pcs | ||||
| Packaging: | 5PCS/CTN | ||||
