|Input Range:||100 ~ 240Vac, 50 / 60Hz||Power Range:||12W Max|
|Certificates:||UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA||Application:||Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc.|
|MTBF:||100,000 Calculated Hours||Case Size:||55L X 27W X 55H (mm)|

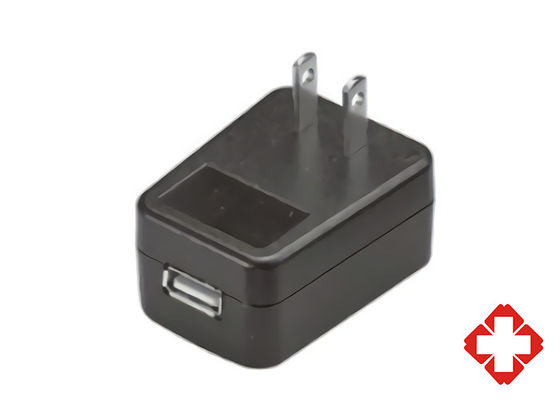

UL 60601 certified 12W Max 5V 24V Medical AC Adapter 12V 1A Switching Power Supply
The APM12U series is a family of wall mount Medical AC adapters (wall adapters/wall warts) equipped with U.S plug that are designed to offer 12W continuous output power with a single output of either 5V, 12V, or 24V (coming with a universal input of 100~240 Vac).
APM12U are burn-in test conducted and offer class II operation, low leakage current, over load protection (OLP), crowbar mode over voltage protection (OVP), and 2 x MOPP (Means of Patient Protection) classification to ensure the safety of the patient, caregiver, and device to which the power supply is applied. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including IEC/EN 60601-1. All modules are fully compliant with the Level VI efficiency standard and RoHS directive.
APM12U switching power supplies are designed for medical applications and are ideal for breath detectors/testers, ECG, EEG, portable medical devices, medical tablets, digital blood pressure monitors, etc.
• Power Range: 12W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz

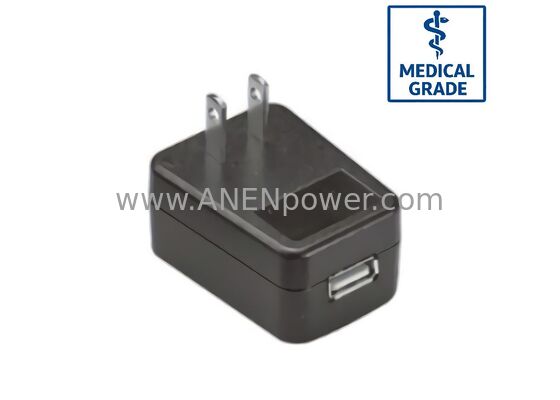

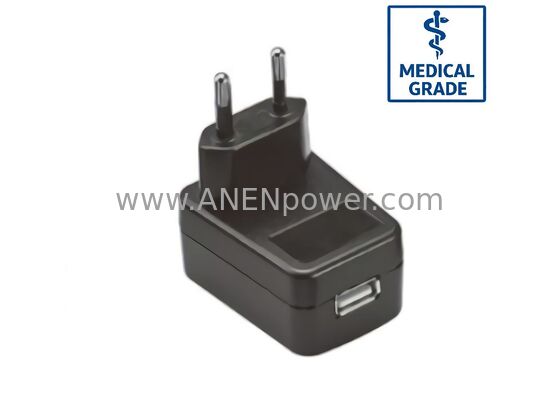

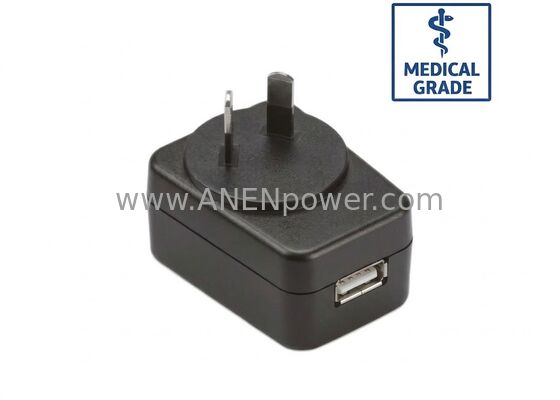

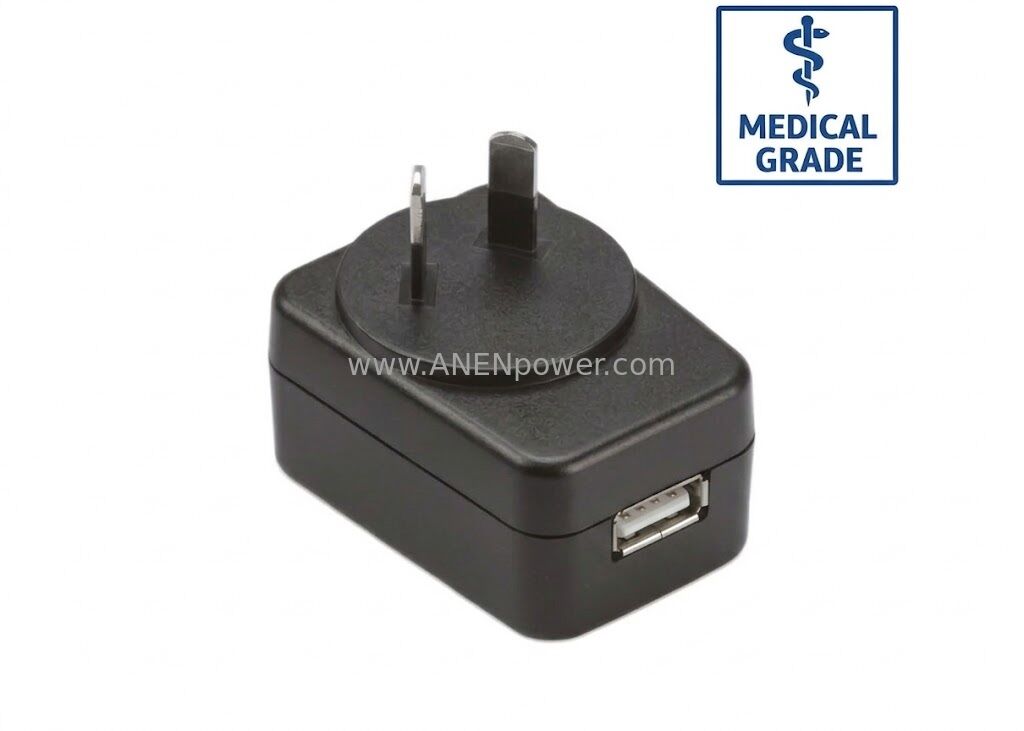

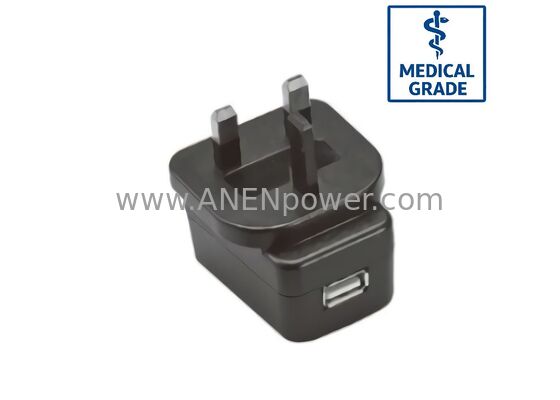

• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~24 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 55L x 27W x 55H (mm)
• Weight: 70g
|Model NO.||MAX OUTPUT POWER||OUTPUT VOLTAGE||MIN LOAD||MAX LOAD||LOAD REGULATION||LINE REGULATION||RIPPLE & NOISE|
