12W Medical Grade AC DC Power Supply 9V1.33A / 12V1A Isolated Safety Standard

12W Medical Wall-Plug AC/DC Adapter: 9V 1.33A / 12V 1A Ultra-Safe Power Solution

Product Overview

The 12W Medical Wall-Plug AC/DC Adapter is a precision-engineered, clinical-grade power solution designed to meet the most rigorous safety and isolation standards in modern healthcare. Delivering a stable 9V 1.33A or 12V 1A output, this adapter is the premier power choice for Handheld Diagnostic Devices, Bedside Patient Monitors, and Portable Therapeutic Gear.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). Its advanced isolation architecture ensures a high dielectric withstand voltage and ultra-low leakage current, providing absolute safety for both patients and medical staff. Its compact, wall-plug form factor is optimized for space-constrained clinical workstations and home-care environments, providing a secure, interference-free link between the power grid and sensitive medical electronics.

Key Specifications

Our 12W medical series maximizes patient protection while offering a versatile range of voltage outputs to suit various medical device architectures.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 12W Continuous Maximum.

• Standard Output Options:

  • 9V 1.33A (Optimized for handheld diagnostic tools and testers).

  • 12V 1A (Ideal for desktop oximetry hubs and patient monitors).

• Other Available Outputs:

  • 5V 2.4A

  • 15V 0.8A

  • 18V 0.66A

  • 24V 0.5A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Home Healthcare Standard: Certified to IEC 60601-1-11 (Safety for home-use medical equipment).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in the patient vicinity.

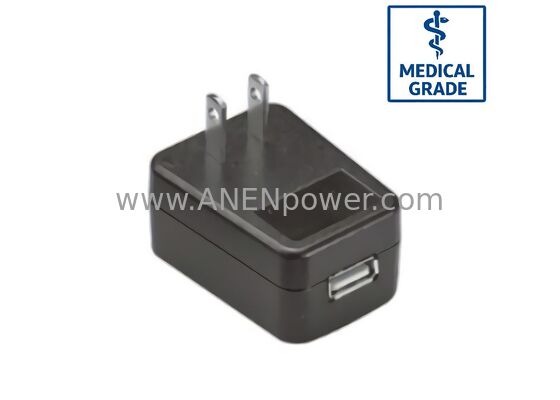

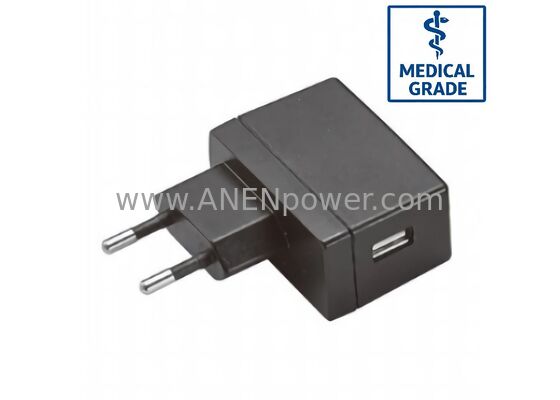

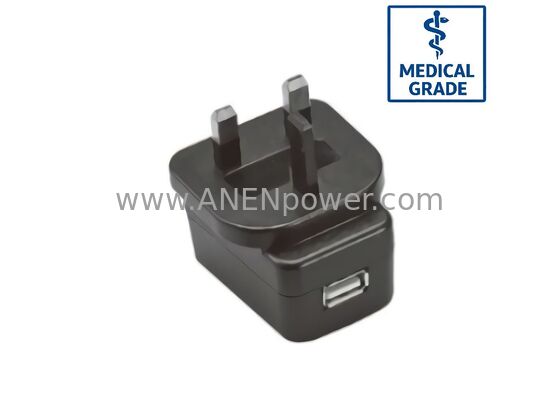

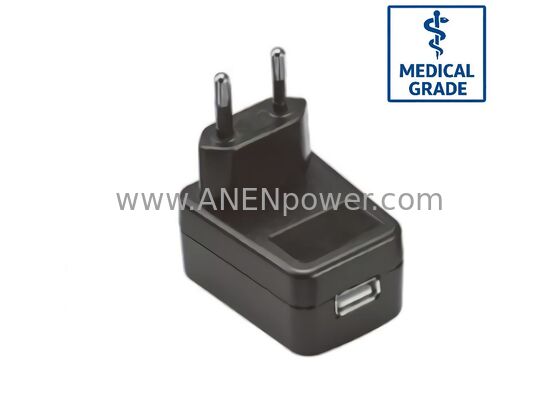

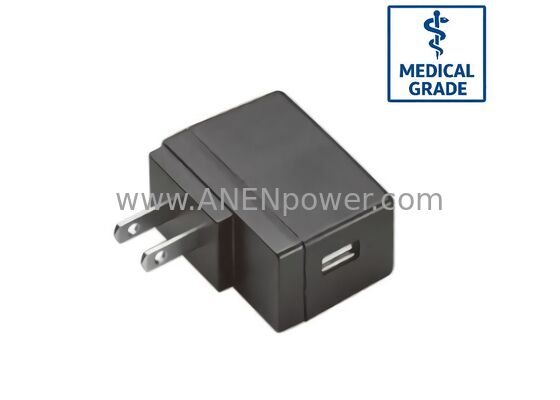

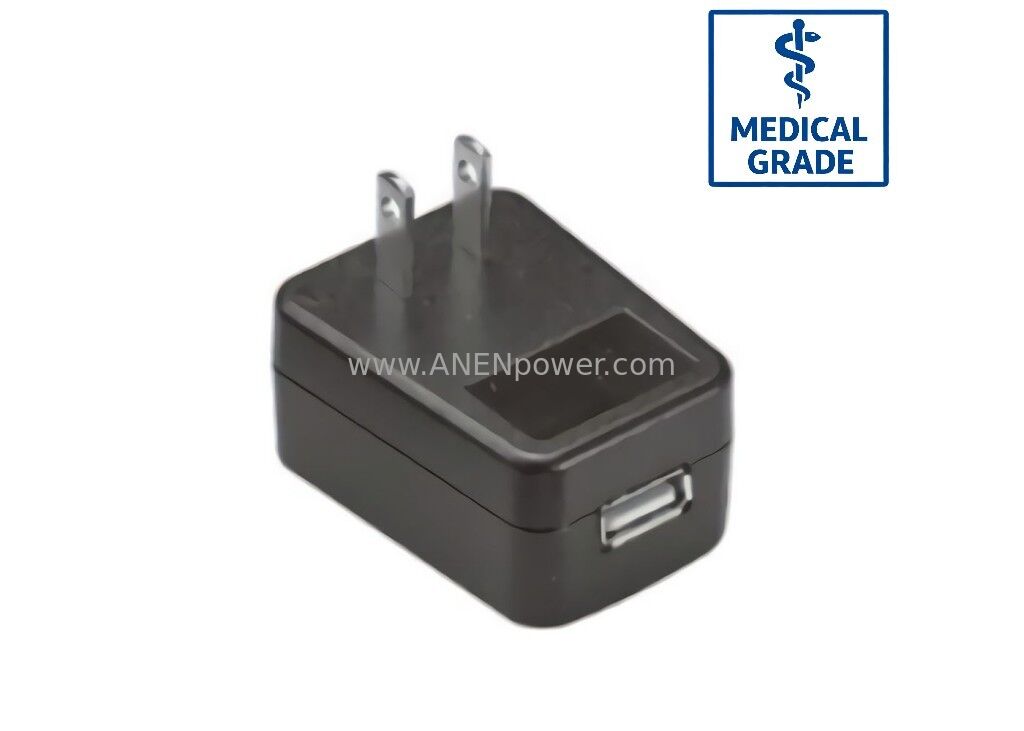

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring long-term durability for clinical environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 12W medical-grade output is optimized for high-sensitivity diagnostic and therapeutic electronics:

• Diagnostic Monitoring: Portable ECG recorders, digital thermometers, and blood glucose meters.

• Monitoring Devices: Bedside pulse oximeters, handheld blood pressure monitors, and telemetry hubs.

• Therapy Equipment: Mid-power TENS Therapy Units and clinical Therapy Units.

• Rehabilitation: Portable massage controllers and micro Rehabilitation Devices.

• Respiratory Care: Control logic for smart sleep therapy (CPAP) and portable nebulizer modules.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Signal-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive physiological data and analog-to-digital conversions.

• Isolated Safety Standard: High-reliability internal components selected for superior thermal performance and long-term voltage stability.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
