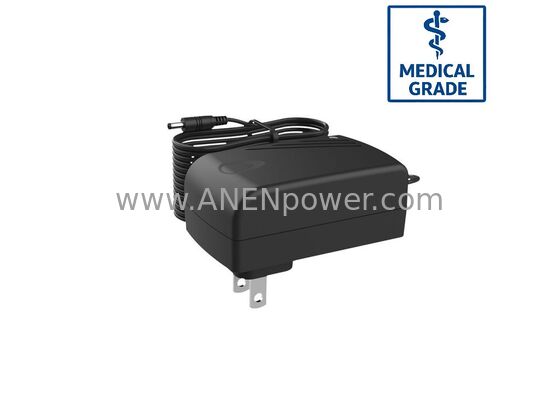

UL 60601 Certified 12V 2A Medical Grade AC Adapter | 5V 24V Switching Power Supply with US Plug
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 15 ~ 24W |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 60.5L X 39W X 34H(mm) |
UL 60601 Certified 12V 2A Medical Grade AC Adapter | 5V 24V Switching Power Supply with US Plug
The UL 60601 Certified 12V 2A Medical Grade AC Adapter is a reliable power solution designed for medical applications. With a 5V and 24V switching power supply, this adapter features a US plug for easy integration into healthcare settings.
- Safety Certified: Complies with UL 60601 standards for medical device safety.
- Versatile Output: Delivers stable 12V 2A power and supports 5V and 24V outputs, suitable for various healthcare devices.
- Built-in Protection: Includes over-voltage, over-current, and short-circuit protections for safe operation.
- Efficient Design: Optimized for high efficiency and minimal heat generation.
- Ideal Use: Perfect for powering medical devices like diagnostic and monitoring equipment.
This medical-grade AC adapter is essential for healthcare professionals seeking safety and reliability in their power solutions.
• Power Range: 15~24W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz

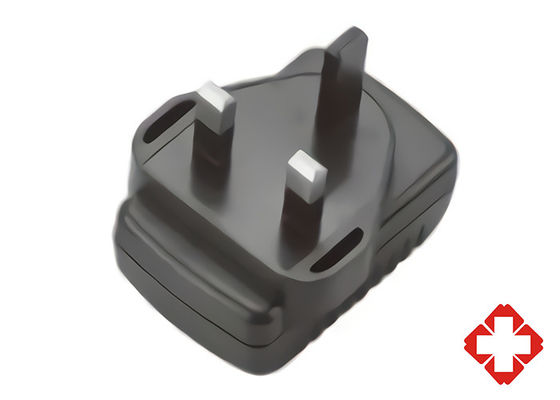

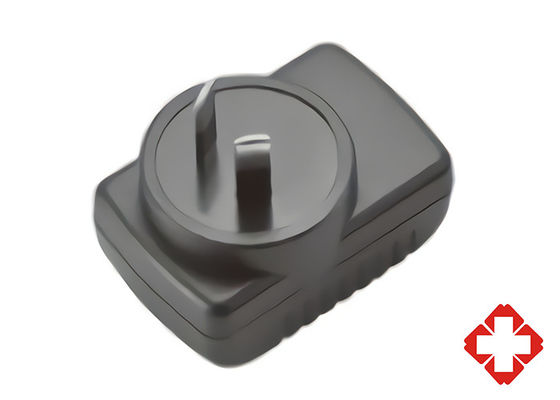

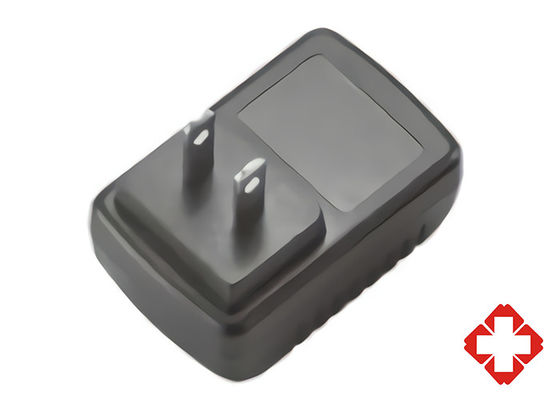

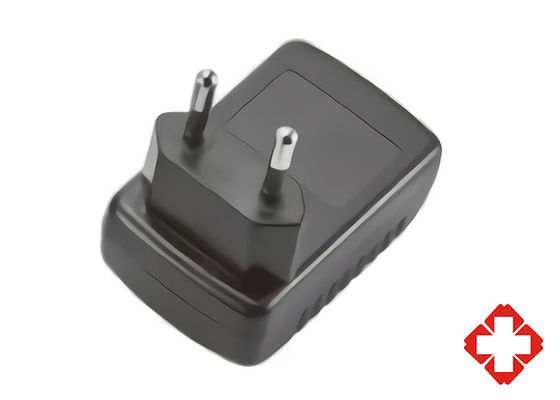

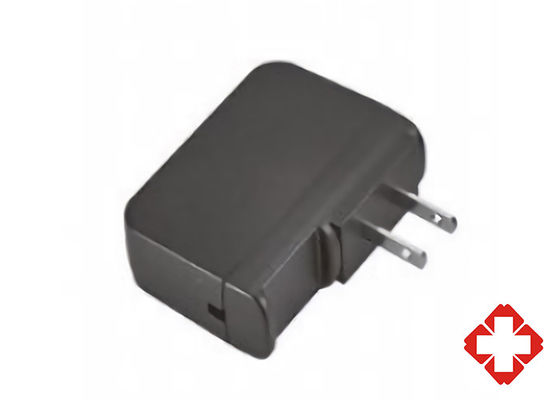

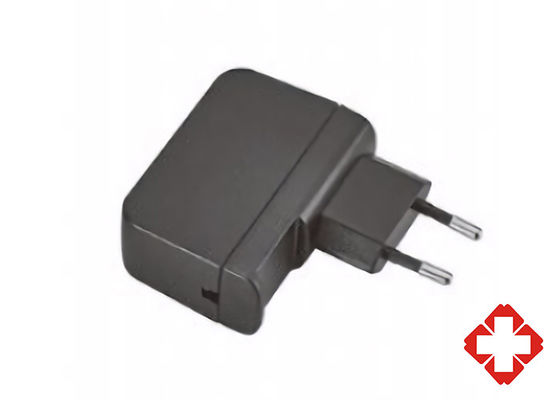

• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 60.5L x 39W x 34H(mm)
• Weight: 120g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM19UA | 15W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM19UB | 20W | 9-13V | 0A | 2.0A | ±5% | ±1% | 180mV |
| APM19UC | 20W | 14-19V | 0A | 1.42A | ±5% | ±1% | 200mV |
| APM19UD | 20W | 20-27V | 0A | 1.0A | ±5% | ±1% | 250mV |
| APM19UE | 20W | 28-35V | 0A | 0.71A | ±5% | ±1% | 280mV |
| APM19UF | 20W | 36-48V | 0A | 0.55A | ±5% | ±1% | 360mV |
| APM19UG | 18W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM19UH | 24W | 9-13V | 0A | 2.0A | ±5% | ±1% | 180mV |
| APM19UJ | 24W | 14-19V | 0A | 1.71A | ±5% | ±1% | 200mV |
| APM19UK | 24W | 20-27V | 0A | 1.2A | ±5% | ±1% | 250mV |
| APM19UL | 24W | 28-35V | 0A | 0.85A | ±5% | ±1% | 280mV |
| APM19UM | 24W | 36-48V | 0A | 0.66A | ±5% | ±1% | 360mV |
| NOTED: | |||||||
| 1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. | |||||||
| 2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. | |||||||
| 3 : Max. Power (W) = Vo x Io | |||||||
