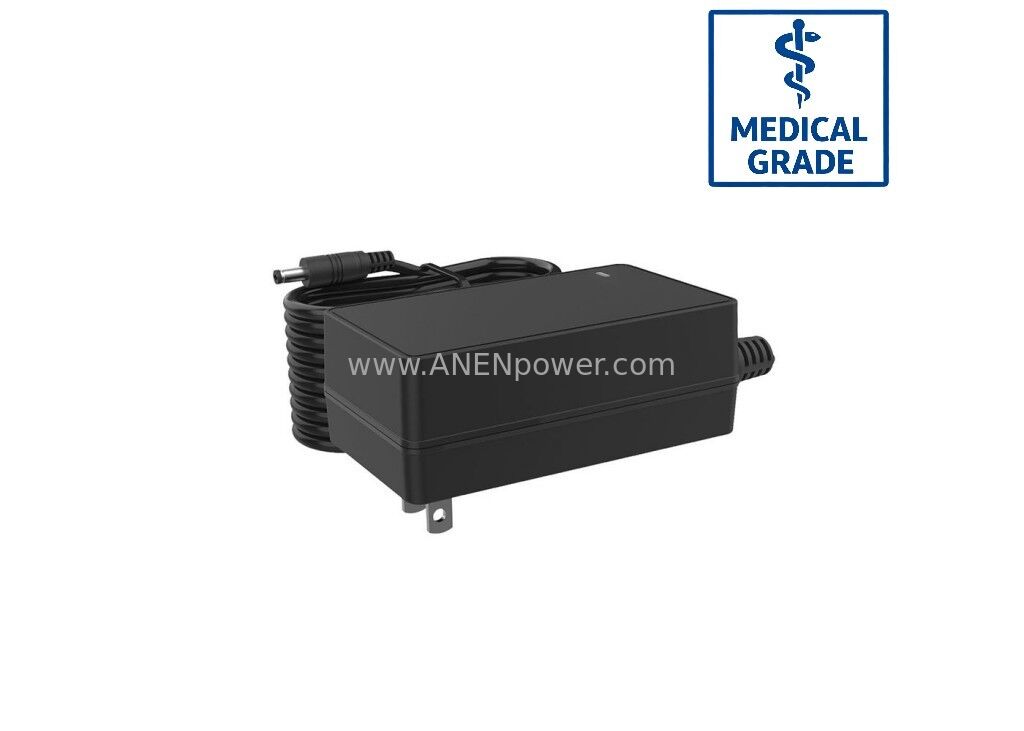

48W Medical Power Supply, 24V 2A Output AC Adapter for Therapy Equipment

48W Medical Wall-Plug AC/DC Adapter: 24V 2A Ultra-Safe Power Solution

Product Overview

The 48W Medical Wall-Plug AC/DC Adapter is a high-performance, clinical-grade power solution specifically engineered for the rigorous safety and durability demands of active clinical treatment. Delivering a robust and stable 24V 2A output, this adapter is the premier power choice for Advanced Therapy Equipment, Clinical Laser Systems, and Motorized Rehabilitation Workstations.

Built to the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). It provides double-layered reinforced insulation and an ultra-low leakage current design, ensuring absolute safety for both patients and clinicians during high-intensity therapy sessions. Its high-wattage capability in a compact wall-plug form factor is optimized for busy clinical environments, providing a secure, interference-free link between the power grid and sensitive therapeutic electronics.

Key Specifications

Our 48W medical series maximizes patient protection while ensuring the consistent torque and voltage stability required for high-precision medical actuators.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 48W Continuous Maximum.

• Standard Output: 24V 2A (Optimized for 24V-system therapeutic drivers and clinical actuators).

• Other Available Outputs: 12V 4A, 15V 3.2A, 18V 2.6A.

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety during skin-contact or invasive therapy.

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime for heavy-duty therapy applications.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 48W medical-grade output is optimized for high-power therapeutic and diagnostic electronics:

• Therapy Equipment: High-power automated wound therapy (NPWT) units, clinical Therapy Units, and phototherapy systems.

• Rehabilitation: Motorized limb exercise machines and professional Rehabilitation Devices.

• Infusion Systems: High-capacity volumetric infusion pumps and clinical feeding hubs.

• Respiratory Care: Control logic for high-flow ventilators and clinical CPAP workstations.

• Patient Handling: Power for motorized clinical stretchers and exam table controllers.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Dynamic Load Management: Specifically engineered to handle the fluctuating current demands of DC motors without voltage drops or electronic noise.

• Clinical-Grade EMI/EMC: Advanced noise suppression to prevent electromagnetic interference with sensitive physiological sensors or cardiac monitors nearby.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
