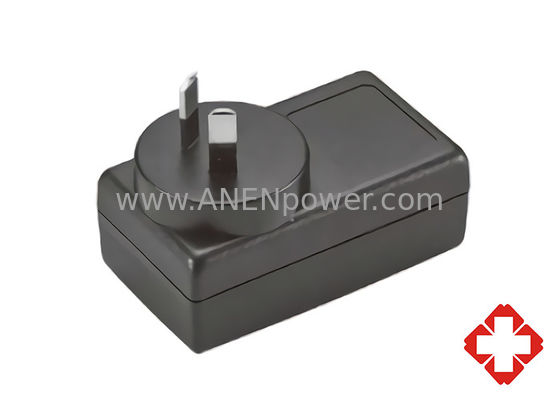

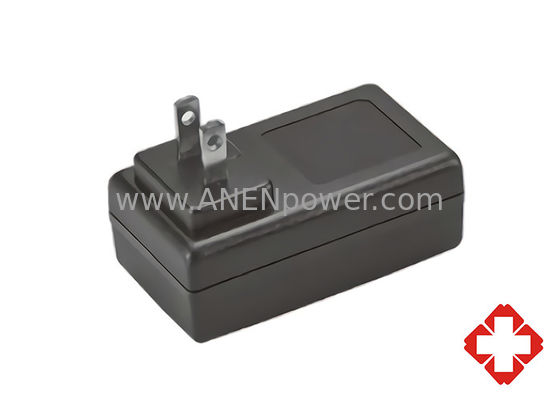

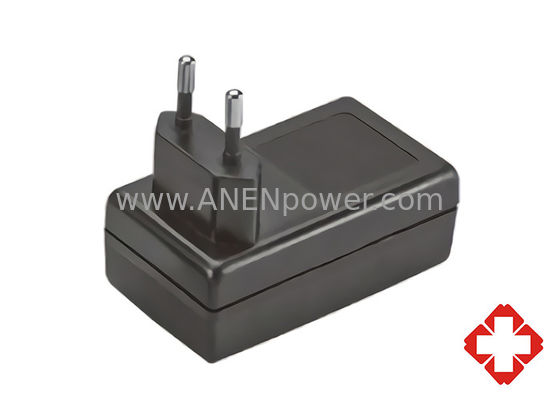

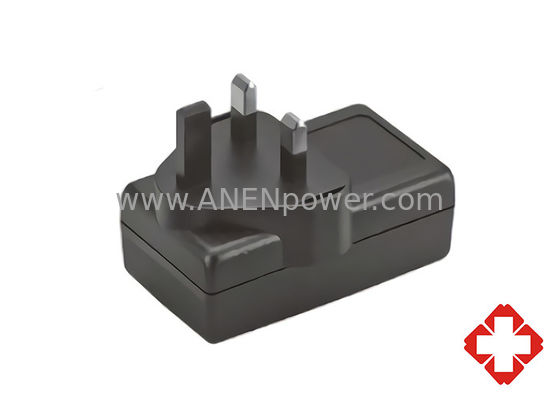

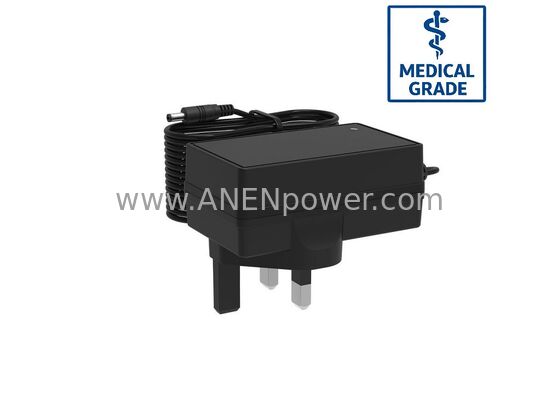

EN 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V UK Plug for Blue Light Therapy Equipment Devices
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 16 ~ 36W |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 76L X 43W X 30H (mm) |
EN 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V UK Plug for Blue Light Therapy Equipment Devices
EN/IEC 60601 certified medical-grade power adapter delivering precise triple voltage output: 12V 3A, 24V 1.5A, and 36V specifically engineered for professional blue light therapy systems. This UK plug adapter features medical-grade isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure safe, uninterrupted operation in clinical environments including dermatology clinics, psoriasis treatment centers, and phototherapy facilities. Designed with thermal protection and stable voltage regulation for consistent light intensity and treatment effectiveness during extended therapy sessions. The compact CE certified design meets stringent European medical safety standards for healthcare professionals requiring reliable power delivery where treatment accuracy and patient safety depend on certified performance in medical light therapy applications.
• Power Range: 16~36W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 76L x 43W x 30H (mm)
• Weight: 200g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM24KA | 16W | 5-8V | 0A | 2.0A | ±5% | ±1% | 100mV |
| APM24KB | 18W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM24KC | 20W | 5-8V | 0A | 4.0A | ±5% | ±1% | 100mV |
| APM24KD | 24W | 9-11V | 0A | 1.5A | ±5% | ±1% | 250mV |
| APM24KE | 27W | 9-11V | 0A | 2.0A | ±5% | ±1% | 250mV |
| APM24KF | 20W | 9-11V | 0A | 3.0A | ±5% | ±1% | 250mV |
| APM24KG | 30W | 12-17V | 0A | 1.66A | ±5% | ±1% | 250mV |
| APM24KH | 24W | 12-17V | 0A | 2.5A | ±5% | ±1% | 250mV |
| APM24KJ | 30W | 18-24V | 0A | 1.33A | ±5% | ±1% | 350mV |
| APM24KK | 30W | 18-24V | 0A | 1.66A | ±5% | ±1% | 350mV |
| APM24KL | 20W | 36-48V | 0A | 0.55A | ±5% | ±1% | 480mV |
| APM24KM | 30W | 36-48V | 0A | 0.83A | ±5% | ±1% | 480mV |
| APM24KN | 36W | 12V | 0A | 3.0A | ±5% | ±1% | 250mV |
| APM24KP | 24W | 12V | 0A | 2.0A | ±5% | ±1% | 250mV |
| APM24KQ | 36W | 24V | 0A | 1.5A | ±5% | ±1% | 350mV |
| NOTED: | |||||||
| 1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. | |||||||
| 2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. | |||||||
| 3 : Max. Power (W) = Vo x Io | |||||||
