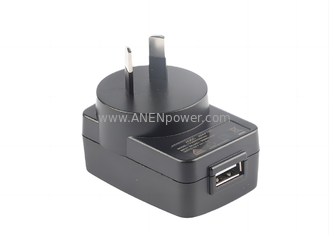

15W EN/IEC 62368 RCM Certified 3A 2.4A 5V Power Supply 12V AC Adapter 9V Wall Transformer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 To 240V AC , 50 / 60Hz | Output Power: | 15W Max |
|---|---|---|---|
| Output Range: | 5 ~ 36V / 500mA ~ 3000mA | Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
| Standard: | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 | Warranty: | 3~5 Years |
| AC Plug: | EU / US / UK / AU And Others For Your Selection | Application: | Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments |
EN/IEC 62368 RCM Certified 3A 2.4A 5V Power Supply 12V AC Adapter 9V Wall Transformer
APS15A is a 6W compact size highly reliable wall-mounted style single-output green adaptor series, which is compact and convenient for carry. APS15A is a class II power unit equipped with the standard 2-Pin AU plug, accepting the input range from 100VAC to 240VAC. The whole series provides different models with output voltages ranging between 5VDC and 48VDC that it can satisfy the demands for various types of consumer electronic devices.
APS15A is compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
1, Extreme small and space-saving, takes up one spot on power strip
2, AC input power suitable for the world
3, Meet DOE/CEC/ERP Level VI
4, Over voltage, over current, short circuit and over load protection
5, Per pieces adapter is 100% full load -burn in test (4 hours)
6, All the products have passed the full load test process aging
7, Low interference & noise
8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347
9, Certification: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA
| Datasheet | |
| Input: | 100 to 240V AC , 50 / 60Hz |
| Output power: | 15W max |
| Output Range: | 5 ~ 36V / 500mA ~ 3000mA |
| Protection: | Over load protection |
| Over voltage protection | |
| Short circuit protection | |
| Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
| Standard: | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 |
| Efficiency: | Compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5 |
| AC plug: | EU / US / UK / AU and Others for your selection |
| Standard DC Connector: | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside |
| Operating Temperature Range: | 0--40°C |
| Storage Temperature Range: | -20 --- 85°C |
| High Humidity Operation: | + 40 °C and 90 ~ 95% Humidity |
| Net weight: | About 100g per unit |
| MTBF: | 50,000 hours |
| Application: | Consumer electronic devices · Telecommunication devices · Office facilities · Industrial equipments |
| Packing: | PE bag + Carton or White Box + Carton or As your Request |
