Power: | 75W Max. | Input: | 100~240VAC 50/60Hz |
---|---|---|---|
Output Voltage: | 12V Or 24V Or 36V Or 48V | Output Current: | 100MA-6250MA |
Dimension: | 158*51*18mm | Package: | 100pcs/CTN37*31.5*23.5cm |

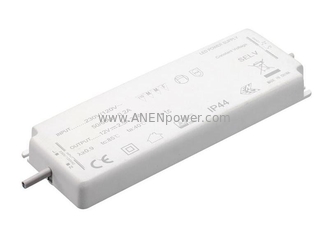

UL FCC Certified 75W Max 36V 24V Ultra Thin LED Driver Transformer 12V 48V Constant Voltage Power Supply
The APL75M power supply is a device designed to provide reliable and safe power to LED lighting systems. This power supply is suitable for use in a wide range of indoor and outdoor environments, including harsh and wet conditions.
This typically features a compact and robust design, with high efficiency and low power consumption. It can operate over a wide input voltage range and is capable of providing a stable output voltage and current to ensure optimal performance of the LED lighting system. Additionally, this power supply include various protection features such as overvoltage and short-circuit protection to prevent damage to the LED lighting system and ensure long-term reliability.
Overall, APL75M LED power supply is an essential component for any LED lighting system that requires reliable and safe power in harsh and demanding environments.
- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP44 protection rating
MODEL DETAIL SPEC. | APL75M-1206250 | APL75M-2403125 | APL75M-3602080 | APL75M-4801560 | |
INPUT | Input Voltage: | 100-240VAC/200-240VAC | |||
Input Frequency: | 50/60Hz | ||||
Inrush Current: | 65A/230VAC at full load | ||||
AC Current: | 0.85A/115VAC 0.43A/230VAC | ||||
Leakage Current: | <0.25mA/240VAC | ||||
Efficiency: | 88% | ||||
OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
Rated Current: | 6250mA | 3125mA | 2080mA | 1560mA | |
Rated Power: | 75W | ||||
Voltage Tolerance: | ±5.0% | ||||
Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
Line Regulation: | ±3% | ||||
Load Regulation: | ±5% | ||||
Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
ENVIRONMENTAL | Operating Temperature: | -20 ~ +50 (Refer to "Derating Curve") | |||
Storage Temp: | -40℃ ~ 85℃ | ||||
Storage Humidity: | 20 ~ 95% RH | ||||
Working Humidity: | 20 ~ 95% RH non-condensing | ||||
PROTECTION | Over Load: | Above 105%-130% rated output power | |||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
Over Voltage: | 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V 36V:41.4 ~ 48.6V 48V:55.2~64.8V |
||||
Protection type: Shut down o/p voltage, re-power on to recover | |||||
Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
Withstand Voltage: | I/P-O/P:3.75KVAC | ||||
Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
EMI: | Compliance to EN55015 | ||||
EMS: | compliance to 61547:2009 | ||||
OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
Size: | 158*51*18mm | ||||
Weight: | 150g / pcs | ||||
Packaging: | 100PCS/CTN |
