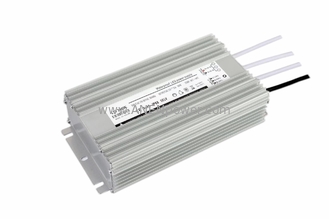

12V/24V/36V/48V Waterproof LED Power Supply - 300W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100~277Vac, 50/60Hz | Output Power: | 300W Max |
|---|---|---|---|
| Output Voltage: | 12V/ 24V/ 36V /48V | Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
| Standard: | EN/IEC 61347, UL 1310 | Applicants: | LED Lighting Advertising, LED Display, LED Strips, Etc. |
| Warranty: | 3~5 Years | Waterproof Grade: | IP67 / IP68 |
12V/24V/36V/48V Waterproof LED Power Supply - 300W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
Our 12V/24V/36V/48V Waterproof LED Power Supply offers an impressive 300W output, providing consistent and reliable power for your outdoor lighting systems. Built to withstand the most demanding environments, this LED driver features an IP67 waterproof rating, ensuring protection against water, dust, and other harsh elements.
Ideal for outdoor applications, this power supply is engineered to endure challenging conditions, making it perfect for garden lighting, street lighting, signage, and industrial uses. The IP67 rating guarantees that your lighting systems will remain operational even in rain, snow, or extreme weather.
With multiple voltage options—12V, 24V, 36V, and 48V—and a 300W high output, this LED power supply can handle large-scale outdoor lighting projects. Its durable design ensures long-lasting performance, providing efficient power to your LED lights for superior illumination in any outdoor setting.
| MODEL DETAIL SPEC. | APL300-12025000 | APL300-24022500 | APL300-36083333 | APL300-48062500 | |
| INPUT | Input Voltage: | 100-240VAC/200-240VAC | |||
| Input Frequency: | 50/60Hz | ||||
| Inrush Current: | 65A/230VAC at full load | ||||
| AC Current: | 2.27A/115VAC 1.14A/230VAC | ||||
| Leakage Current: | ＜0.25mA/240VAC | ||||
| Efficiency: | 88% | ||||
| OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 25A | 22.5A | 8.33A | 6.25A | |
| Rated Power: | 300W | ||||
| Voltage Tolerance: | ±5.0% | ||||
| Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
| Line Regulation: | ±3% | ||||
| Load Regulation: | ±5% | ||||
| Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +50 (Refer to "Derating Curve") | |||
| Storage Temp: | -40℃ ~ 85℃ | ||||
| Storage Humidity: | 20 ~ 95% RH | ||||
| Working Humidity: | 20 ~ 95% RH non-condensing | ||||
| PROTECTION | Over Load: | Above 105%-130% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage: | 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V 36V:41.4 ~ 48.6V 48V:55.2~64.8V |
||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
| Withstand Voltage: | I/P-O/P:3.75KVAC | ||||
| Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
| EMI: | Compliance to EN55015 | ||||
| EMS: | compliance to 61547:2009 | ||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
| Size: | 230*127*58mm | ||||
| Weight: | 2800g / pcs | ||||
| Packaging: | 5PCS/CTN | ||||
