36W Open Frame Power Supply 12V 3A for Industrial Control Boards and Embedded Systems

36W Open Frame Industrial Power Supply: 12V 3A High-Density Solution

Product Overview

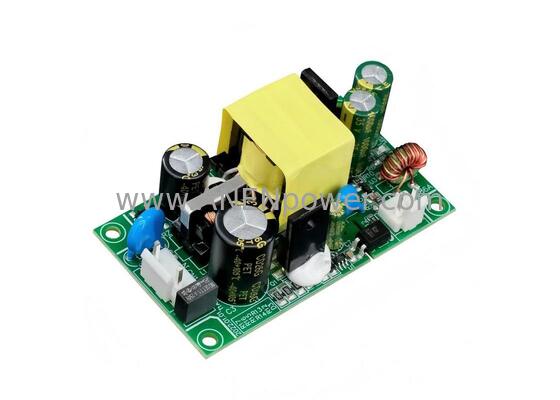

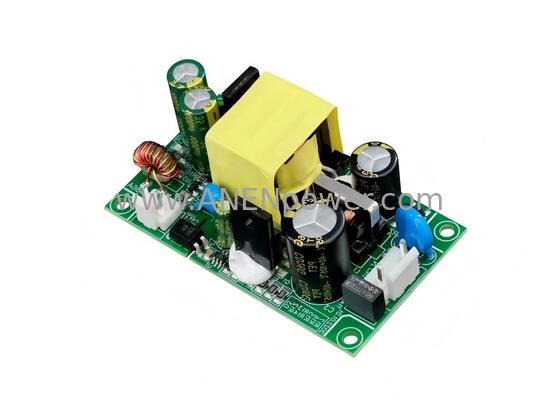

The 36W Industrial Open Frame Power Supply is a compact, high-efficiency AC/DC converter engineered for seamless integration into professional-grade embedded systems and automated control environments. Delivering a precise 12V 3A output, this unit provides a stable, low-noise power foundation for ARM/X86 Industrial PCs, PLC Controllers, and IoT Edge Gateways that operate in space-constrained or high-temperature enclosures.

Featuring an ultra-compact standard footprint of 70 x 40 x 22 mm, this power supply maximizes spatial efficiency while maintaining superior thermal management. Recognizing that unique hardware designs often require specific mechanical constraints, we also offer Comprehensive Dimension Customization Services, allowing the PCB layout and profile to be tailored to your specific enclosure requirements.

Key Specifications

Our industrial open frame series focuses on reliability, long lifecycle, and global compatibility.

• Input Voltage: 90-264V AC (Full Range), 47-63Hz (Global Industrial Ready).

• Total Output Power: 36W Continuous.

• Output Voltage & Current Range:

  • 12V Series: 12V 3A (36W Max - Optimized for Industrial Control)

  • 24V Series: 24V 1.5A (36W Max - For Small Actuators)

  • 5V Series: 5V 5A (25W Max - For Logic Power)

• Efficiency: > 88% (Typical) – Minimizing internal heat dissipation in closed enclosures.

• No-Load Power Consumption: < 0.1W (Meets global green energy standards).

• Dimensions: 70 x 40 x 22 mm (Standard) or Fully Customizable per client specifications.

• Safety Standards: Compliant with IEC/EN/UL 62368-1 (ICT/Industrial Equipment).

• Operating Temperature: -20°C to +70°C (With derating above 50°C).

• Ripple & Noise: < 120mVp-p – Essential for high-speed digital logic and sensitive analog inputs.

• MTBF: > 300,000 Hours (MIL-HDBK-217F) for 24/7 industrial duty cycles.

Ideal Applications

The 36W open frame series is optimized for high-reliability industrial ecosystems:

• Embedded Computing: Industrial motherboards, single-board computers (SBCs), and compact human-machine interfaces (HMI).

• Industrial Automation: PLC sub-modules, remote I/O stations, and precision motion controller logic.

• Telecommunications: Network routers, 5G micro-base station controllers, and high-speed fiber-optic gateways.

• Smart Security: Multi-channel NVR/DVR systems, IP-based surveillance hubs, and biometric access controllers.

• Point-of-Sale (POS): Self-service kiosks, automated ticket dispensers, and retail payment terminals.

Professional Reliability & Performance Suite

• Ultra-Compact & Tailorable Footprint: The standard 70mm length fits most SFF (Small Form Factor) designs, while our Custom PCB Engineering ensures the power supply can be adapted to circular, L-shaped, or ultra-slim enclosures.

• Superior Transient Response: Specifically tuned to handle the rapid load changes of embedded processors and communication modules without voltage dips or system reboots.

• Industrial-Grade EMI/EMC: Built-in Class B EMI filtering ensures minimal interference with sensitive internal electronics, meeting EN 55032 standards for conducted and radiated emissions.

• Flexible Interconnect Options: Supports various input/output connectors, from standard Wafer/Terminal blocks to direct-solder pins for PCB-mount applications.

• Comprehensive Protection: Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with auto-recovery features.
