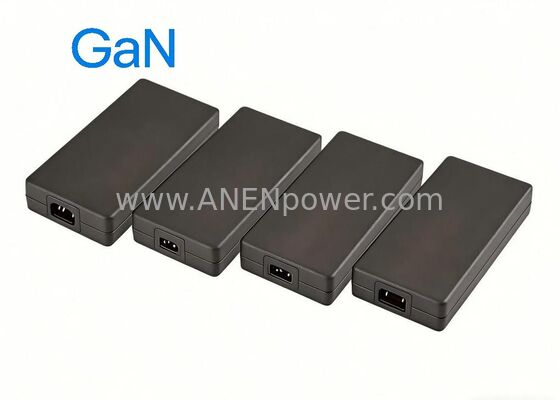

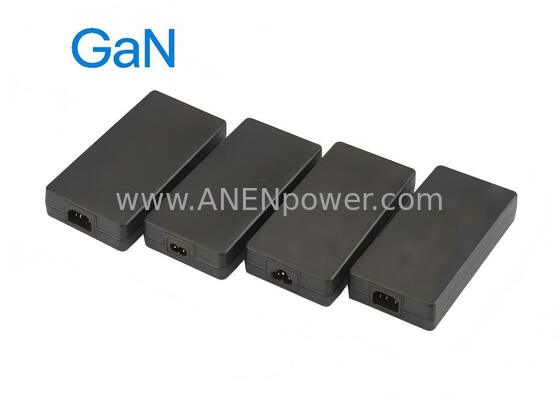

230W GaN Desktop AC/DC Power Supply, 24V 9.6A Output for Industrial Automation Equipment

230W GaN Industrial Desktop AC/DC Power Supply: 24V 9.6A High-Efficiency Solution

Product Overview

The 230W GaN Industrial Desktop AC/DC Power Supply sets a new standard for power density and reliability in industrial environments. By integrating advanced Gallium Nitride (GaN) power semiconductors, this unit achieves an exceptional efficiency of up to 95%, significantly reducing thermal dissipation. This allows for a completely fanless, silent, and ultra-compact design, making it the premier choice for Industrial Automation Equipment, Compact Robotics, and Intelligent Control Systems.

Designed for 24/7 mission-critical operation, the GaN-driven architecture ensures stable power delivery even under high-load industrial conditions. Its rugged desktop form factor provides a "plug-and-play" alternative to traditional internal power supplies, offering superior space-saving benefits for mobile workstations, control consoles, and equipment racks where heat management is a priority.

Key Specifications

Our 230W GaN industrial series offers a versatile range of voltage configurations, ensuring peak performance and electrical safety for a variety of professional hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Input).

• Total Output Power: 230W Continuous Maximum.

• Common Output Configurations:

  • 12V Series: 12V 19.1A (230W Max - High-current version for specialized logic)

  • 19V Series: 19V 12.1A (230W Max - For high-end industrial computing)

  • 24V Series: 24V 9.6A (230W Max - Industrial Automation Standard)

  • 36V Series: 36V 6.38A (230W Max - For precision motion control)

  • 48V Series: 48V 4.79A (230W Max - For telecommunication hardware)

  • 54V Series: 54V 4.25A (230W Max - For PoE+ network switches)

• Ripple & Noise: < 150mVp-p (Typical) – Ensuring clean power delivery to prevent data errors and measurement drift in sensitive logic circuits.

• Industrial Safety Compliance: Fully compliant with IEC/EN/UL 62368-1 (Optional: IEC 61558-1/-2-16).

• GaN Efficiency: Ultra-high efficiency architecture meeting and exceeding Level VI standards.

• EMI/EMC Compliance: Meets Class B standards for low electromagnetic interference in industrial and office grids.

• AC Inlet: IEC320-C14 (3-Pin grounded) or C6 (3-Pin "Mickey Mouse") available.

• MTBF (Reliability): > 100,000 Hours, ensuring minimized downtime in factory environments.

• Global Certifications: UL/cUL, CE, FCC, GS, CB, RoHS, REACH.

Ideal Applications

The 230W GaN industrial-grade output is optimized for high-reliability mechanical and electronic systems:

• Industrial Automation: PLC control systems, human-machine interfaces (HMI), and high-speed sensors.

• Robotics & AGVs: Small-scale robotic arms, automated guided vehicles (AGV), and collaborative robots (Cobots).

• Precision Motion Control: Stepper motor drivers, brushless DC (BLDC) controllers, and automated actuators.

• CNC & 3D Printing: Desktop-scale CNC machines and high-precision 3D printing systems.

• Industrial Computing: High-performance embedded PCs, IoT gateways, and edge computing nodes.

Professional Safety & Reliability Suite

• GaN Thermal Architecture: GaN technology minimizes energy loss as heat, enabling a fanless, fully enclosed design that prevents the ingestion of dust, oil, and debris common in factory environments.

• Advanced Ripple Suppression: Integrated multi-stage LC filtering significantly reduces high-frequency switching noise, protecting the integrity of high-speed digital signals and sensitive analog components.

• Secure Connectivity: Available with standard DC jacks (5.5x2.5mm) or locking 4-pin/6-pin Power DIN connectors to ensure a stable connection under industrial vibrations.

• Inductive Load Handling: Specifically engineered to absorb back-EMF and manage inrush currents typical of motorized industrial actuators and solenoid valves.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery features.
