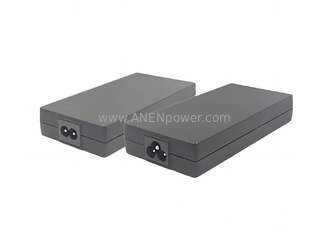

EN/IEC 62368 Certified 150W Max SMPS 24V 48V AC DC Adapter 12V 34V Power Supply 19V Desktop Transformer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 135 ~ 150W |
|---|---|---|---|
| Certificate: | UL/cUL, FCC, CB, GS, CE, TUV, PSE, KC, KCC, SAA, RCM, UKCA | Application: | Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments |
| MTBF: | ＞100,000 Hours | Case Size: | 138.2L X 68.3W X 23.5H Mm |
EN/IEC 62368 Certified 150W Max SMPS 24V 48V AC DC Adapter 12V 34V Power Supply 19V Desktop Transformer
Experience reliable and efficient power delivery with our EN/IEC 61558 certified 150W max SMPS (Switched-Mode Power Supply) adapter. Designed to accommodate a range of voltage outputs—24V, 48V, 12V, 34V, and 19V—this versatile power supply is ideal for various electronic devices and applications.
With its compact design and advanced switching technology, this desktop transformer provides stable and efficient AC to DC conversion, ensuring consistent performance for your equipment. The EN/IEC 61558 certification guarantees compliance with international safety standards, giving you peace of mind when powering sensitive devices.
Whether for industrial, commercial, or personal use, this high-quality power adapter is built to deliver reliable performance and adaptability to meet your diverse power needs. Choose this robust 150W SMPS power supply for a dependable and efficient solution to your power requirements.
| Input Range | 100 ~ 240Vac, 50 / 60Hz |
| Power Range | 135 ~ 150W max |
| Output Range | 12 ~ 56V / 2.96A ~ 11.66A |
| Protection | Over load protection |
| Over voltage protection | |
| Short circuit protection | |
| Safety Approvals | UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA |
| Standard | EN/IEC 62368, EN/IEC 61558, EN/IEC 61347, EN/IEC 60601 for your selection |
| Efficiency | Level VI |
| AC plug | EU / US / UK / AU and Others for your selection |
| Standard DC Connector | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside |
| Operating Temperature Range | 0--40°C |
| Storage Temperature Range | -20 --- 85°C |
| High Humidity Operation | + 40 °C and 90 ~ 95% Humidity |
| Net weight | About 390g per unit |
| MTBF | 100,000 hours |
| Application | Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments |
| Packing | PE bag + Carton or White Box + Carton or As your Request |
| MODEL No. | MAX. OUTPUT POWER (W) |
OUTPUT VOLTAGE (Vo) |
MIN. LOAD (Io) |
MAX. LOAD (Io) |
LOAD REGULATION |
LINE REGULATION |
RIPPLE & NOISE |
||||||
| APS153A | 135W | 12~18V | 0A | 11.25A | ± 5% | ± 1% | 180mV | ||||||
| APS153B | 135W | 19~24V | 0A | 7.1A | ± 5% | ± 1% | 240mV | ||||||
| APS153C | 135W | 32~42V | 0A | 4.21A | ± 5% | ± 1% | 420mV | ||||||
| APS153D | 135W | 44~56V | 0A | 3.06A | ± 5% | ± 1% | 560mV | ||||||
| APS153E | 150W | 12~18V | 0A | 12.5A | ± 5% | ± 1% | 180mV | ||||||
| APS153F | 150W | 19~24V | 0A | 7.89A | ± 5% | ± 1% | 240mV | ||||||
| APS153G | 150W | 32~42V | 0A | 4.68A | ± 5% | ± 1% | 420mV | ||||||
| APS153H | 150W | 44~56V | 0A | 3.4A | ± 5% | ± 1% | 560mV | ||||||
