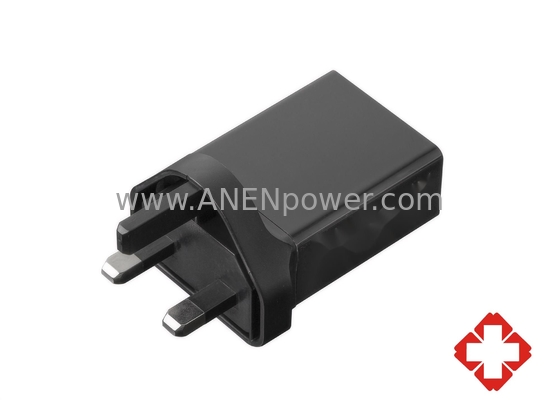

EN/IEC 60601 Certified 5V 2A 2.4A Medical Power Supply AC Adapter | 12V USB Charger with EU Plug for Healthcare Devices
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 10W Max |
|---|---|---|---|
| Color: | Black Or White, Or Customized Colors As Needed | Regular Output:: | 5V 1A, 5V 2A, 9V 1A, 12V 500mA...etc. |
| Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. | Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA |
| Weight: | 70g | MTBF: | 100,000 Calculated Hours |
EN/IEC 60601 Certified 5V 2A 2.4A Medical Power Supply AC Adapter | 12V USB Charger with EU Plug for Healthcare Devices
The EN/IEC 60601 Certified 5V 2A 2.4A Medical Power Supply AC Adapter and 12V USB Charger with EU Plug is a reliable and efficient power solution tailored for healthcare devices. Complying with EN/IEC 60601 standards, this adapter ensures safe and consistent power delivery for sensitive medical equipment, meeting stringent safety requirements for use in healthcare settings.
- Power Output: Dual outputs of 5V 2A and 5V 2.4A, providing flexible options for powering various medical devices and USB-powered equipment
- Certifications: Fully compliant with EN/IEC 60601 standards, ensuring adherence to essential safety and performance criteria for medical use in Europe
- Plug Type: EU plug designed for easy integration into European electrical systems
- Safety Features: Integrated protections against over-voltage, over-current, and short circuits, guaranteeing safe operation in critical medical environments
- Applications: Ideal for powering a wide range of medical devices, including diagnostic tools, monitors, and other essential healthcare equipment
This medical-grade power adapter is crucial for healthcare professionals and facilities dedicated to delivering safe and effective patient care, ensuring that medical devices operate reliably and efficiently.
• Power Range: 10W max
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~24 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Weight: 70g
|
Model NO. |
MAX OUTPUT POWER |
OUTPUT VOLTAGE |
MIN LOAD |
MAX LOAD |
LOAD REGULATION |
LINE REGULATION |
RIPPLE & NOISE |
|
APM10EA |
5W |
5V |
0A |
1.0A |
±5% |
±1% |
100mV |
|
APM10EB |
10W |
5V |
0A |
2.0A |
±5% |
±1% |
100mV |
|
APM10EC |
6W |
12V |
0A |
500mA |
±5% |
±1% |
180mV |
|
APM10ED |
10W |
24V |
0A |
420mA |
±5% |
±1% |
350mV |
