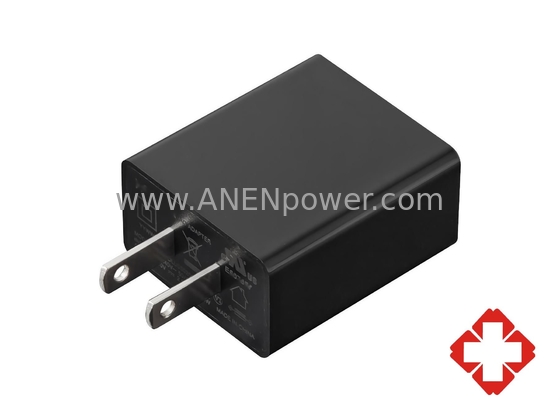

UL/IEC 60601 UL FCC Certified 5V 2A AC Adapter | 12V Medical USB Charger with US Plug for Healthcare Devices
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 10W Max |
|---|---|---|---|
| Color: | Black Or White, Or Customized Colors As Needed | Regular Output:: | 5V 1A, 5V 2A, 9V 1A, 12V 500mA...etc. |
| Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. | Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA |
| Weight: | 70g | MTBF: | 100,000 Calculated Hours |
UL/IEC 60601 UL FCC Certified 5V 2A AC Adapter | 12V Medical USB Charger with US Plug for Healthcare Devices
The UL/IEC 60601 UL FCC Certified 5V 2A AC Adapter and 12V Medical USB Charger with US Plug is an essential power solution designed specifically for healthcare devices. Compliant with UL and IEC 60601 standards, this adapter ensures safe and reliable power delivery, meeting rigorous safety requirements necessary for sensitive medical equipment.
- Power Output: Offers a 5V 2A output, ideal for powering a variety of medical devices, along with a 12V USB charger for versatile charging options
- Certifications: Fully certified to UL and IEC 60601 standards, ensuring compliance with critical safety and performance criteria for medical applications in the US
- Plug Type: US plug designed for seamless integration into American electrical systems
- Safety Features: Built-in protections against over-voltage, over-current, and short circuits, ensuring safe operation in demanding medical environments
- Applications: Perfect for powering medical devices such as diagnostic tools, monitors, and other essential healthcare equipment
This medical-grade power adapter is crucial for healthcare professionals and facilities focused on delivering high-quality patient care, providing dependable and efficient power to ensure that medical devices operate safely and effectively.
• Power Range: 10W max
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~24 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Weight: 70g
|
Model NO. |
MAX OUTPUT POWER |
OUTPUT VOLTAGE |
MIN LOAD |
MAX LOAD |
LOAD REGULATION |
LINE REGULATION |
RIPPLE & NOISE |
|
APM10UA |
5W |
5V |
0A |
1.0A |
±5% |
±1% |
100mV |
|
APM10UB |
10W |
5V |
0A |
2.0A |
±5% |
±1% |
100mV |
|
APM10UC |
6W |
12V |
0A |
500mA |
±5% |
±1% |
180mV |
|
APM10UD |
10W |
24V |
0A |
420mA |
±5% |
±1% |
350mV |
