| Input: | 100-240Vac, 50/60Hz | Output: | 10W Max |
|---|---|---|---|
| Isolation Protection: | 2 X MOPP | Leakage Current: | < 10μA - 50μA |
| Medical Safety: | IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition) | Efficiency: | DoE Level VI And CoC Tier 2 Energy Standards |
| MTBF: | > 100,000 Hours | Certifications: | UL/cUL (Medical), CE (MDD/MDR), TUV-GS, CB, FCC, RoHS, REACH |

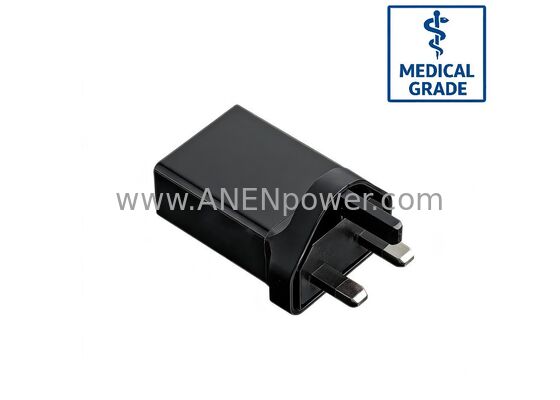

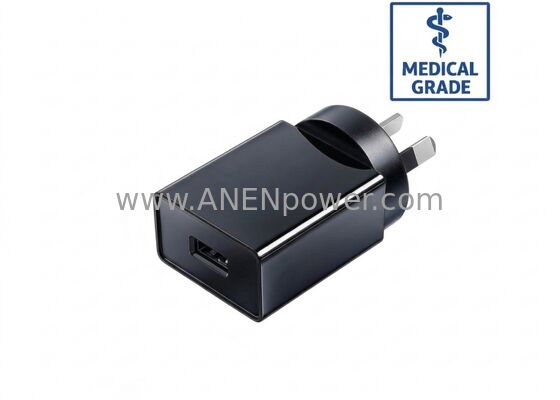

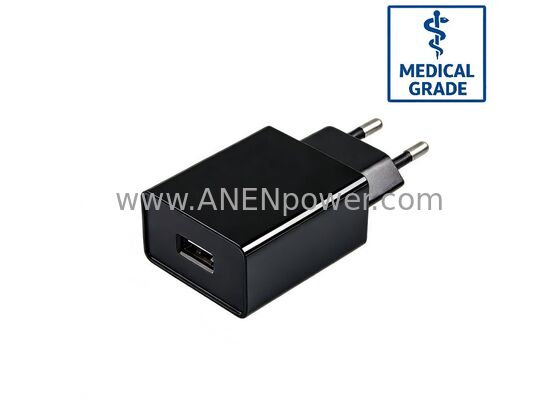

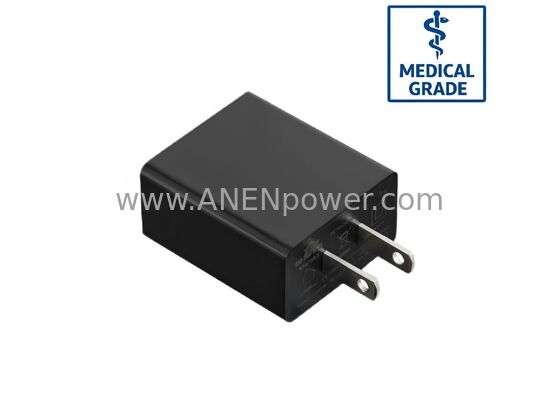

10W Medical Wall-Plug AC/DC Adapter: 5V 2A Ultra-Safe Power Solution
Product Overview
The 10W Medical Wall-Plug AC/DC Adapter is a high-precision, clinical-grade power solution specifically engineered for the reliability and safety demands of modern healthcare technology. Delivering a stable 5V 2A output, this adapter is the premier power choice for Healthcare Electronics, Portable Patient Monitors, and Digital Diagnostic Devices.
Built to the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). It provides double-layered reinforced insulation and an ultra-low leakage current design, ensuring absolute safety for patients and clinicians during active treatment or monitoring. Its compact, wall-plug form factor is optimized for space-constrained clinical settings and home-care environments, providing a secure, interference-free link between the power grid and sensitive digital electronics.
Key Specifications
Our 10W medical series maximizes patient protection while offering a versatile range of voltage outputs to suit various medical device architectures.
Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).
Total Output Power: 10W Continuous Maximum.
Standard Output: 5V 2A (Optimized for high-current USB-powered medical logic and sensors).
Other Available Outputs:
5V 1.5A
6V 1.66A
9V 1.1A
12V 0.85A
15V 0.66A
24V 0.42A
Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).
Home Healthcare Standard: Certified to IEC 60601-1-11 (Safety for home-use medical equipment).
Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.
Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety.
Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.
Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.
MTBF (Reliability): > 100,000 Hours, ensuring long-term durability for clinical environments.
Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.
Ideal Applications
The 10W medical-grade output is optimized for high-sensitivity diagnostic and therapeutic electronics:
Healthcare Electronics: Digital blood pressure monitors, infrared thermometers, and handheld pulse oximeters.
Diagnostic Monitoring: Portable ECG recorders, handheld capnography units, and blood glucose meters.
Therapy Equipment: Mid-power TENS Therapy Units and clinical Therapy Units.
Rehabilitation: Portable massage controllers and micro Rehabilitation Devices.
Home Healthcare: Automated health tracking stations and remote patient monitoring (RPM) gateways.
Professional Safety Suite
Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical or home-care use.
Sensor-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive physiological data and analog-to-digital conversions.
High-Current Stability: Engineered to handle the peak power demands of high-brightness displays and digital processing modules.
Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.
Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
