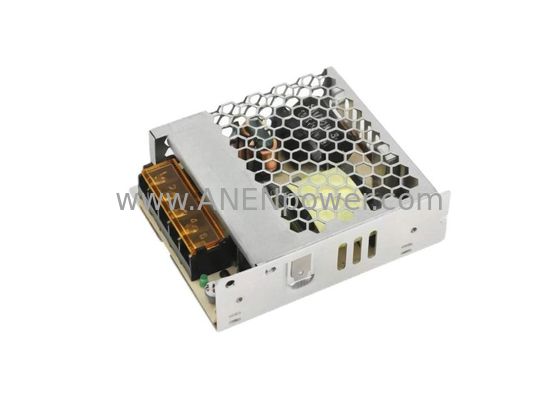

36W Max Super Thin Enclosed AC/DC Power Supply 5V 12V 24V 36V 48V Output for Electronics and Industrial Applications

36W Max Super Thin Enclosed AC/DC Power Supply: Ultra-Slim Precision Solution

Product Overview

The 36W Super Thin Enclosed Power Supply is a high-reliability AC/DC converter engineered for next-generation electronics and compact industrial automation. Featuring an ultra-low profile chassis, this unit is the premier choice for Slimline Digital Signage, Low-Profile Control Cabinets, and Desktop Electronic Devices where vertical space is at a premium but high-density power delivery is essential.

Fully enclosed in a ventilated housing, this power supply combines industrial-grade protection with a "hidden" form factor. Its super-thin architecture is designed to disappear into tight gaps, delivering consistent, low-noise power across a wide range of output voltages to support everything from logic circuits to industrial actuators. We provide Fully Customizable Mechanical Dimensions to ensure the power supply fits perfectly into your proprietary enclosure.

Key Specifications

Our super thin series focuses on thermal efficiency, mechanical flexibility, and global compatibility.

• Input Voltage: 90-264V AC (Full Range), 47-63Hz (Global Universal Input).

• Total Output Power: 36W Continuous Maximum.

• Output Voltage & Current Range:

  • 5V Series: 5V 5A (25W-30W Max - For Digital Logic/SBCs)

  • 12V Series: 12V 3A (36W Max - For Security & Control)

  • 24V Series: 24V 1.5A (36W Max - For Industrial Automation)

  • 36V Series: 36V 1A (36W Max - For Specialized Drivers)

  • 48V Series: 48V 0.75A (36W Max - For PoE & Networking)

• Efficiency: > 88% (Typical) – Advanced switching technology to minimize heat buildup.

• No-Load Power Consumption: < 0.2W (Compliant with DoE Level VI energy standards).

• Dimensions: Ultra-Thin Profile (Fully customizable per client specifications).

• Safety Standards: Compliant with IEC/EN/UL 62368-1 (ICT/Industrial) and EN 61558.

• Operating Temperature: -25°C to +70°C (With standard derating above 50°C).

• Ripple & Noise: < 100mVp-p – Essential for high-speed data integrity and analog precision.

• MTBF: > 300,000 Hours, designed for long-term maintenance-free operation.

Ideal Applications

The 36W super thin enclosed series is optimized for sleek, high-performance environments:

• Digital Signage & Displays: Powering ultra-thin LED posters, menu boards, and smart mirror displays.

• Industrial Automation: Low-profile PLC enclosures, compact control boxes, and edge computing nodes.

• Consumer Electronics: High-end desktop audio systems, smart home hubs, and specialized lab equipment.

• Telecommunications: Slim-line network routers, fiber-optic terminators, and wall-mount communication ports.

• Security & Access Control: Discreet smart locks, slim-profile intercoms, and hidden surveillance controllers.

Professional Reliability & Performance Suite

• Ultra-Slim & Enclosed Protection: The "Super Thin" design allows for installation in extremely narrow spaces, while the enclosed housing provides superior physical protection and enhanced EMI shielding compared to open-frame models.

• Custom Engineering Service: We specialize in Mechanical Adaptation, allowing for modified height, width, or specialized mounting hole positions to meet unique hardware integration requirements.

• Precision Thermal Management: High-conductivity thermal pads and optimized internal airflow ensure the unit remains cool even in confined, non-ventilated spaces.

• Universal Interconnect Options: Available with standard screw terminals, JST/Molex wafers, or customized cable harnesses for plug-and-play integration.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with auto-recovery features.
