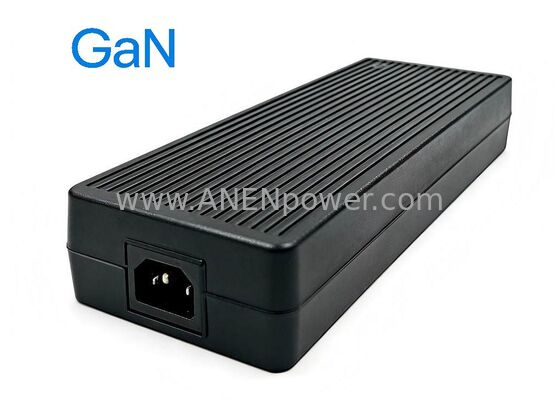

600W GaN Desktop AC/DC Adapter 48V 12.5A Power Supply for Data Center AI Server High Power System

600W Max GaN Desktop AC/DC Adapter: Ultra-Efficient High-Power Solution

Product Overview

The 600W GaN Desktop AC/DC Adapter stands at the absolute frontier of power conversion technology. By fully harnessing the potential of next-generation Gallium Nitride (GaN) semiconductors, this adapter delivers a massive 12.5A at 48V in a fanless, compact desktop enclosure that maintains a remarkably cool profile even under heavy load.

Specially engineered for Data Centers, AI Servers, and High-Power Industrial Systems, the GaN architecture achieves an industry-leading efficiency of over 96%. This near-lossless energy conversion minimizes internal heat build-up, ensuring maximum reliability for mission-critical hardware that requires sustained, high-density power around the clock. Whether supporting deep learning clusters, high-speed edge computing, or sophisticated 5G infrastructure, this 600W unit provides the rock-solid, stable power necessary for the most advanced digital ecosystems.

Key Specifications

Designed with an advanced Interleaved LLC Resonant Topology and Active PFC (Power Factor Correction), the 600W GaN series ensures precise voltage regulation and exceptional transient stability.

• Technology: Next-Gen GaN (Gallium Nitride) FETs for maximum power density and superior thermal management.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 600W Continuous Maximum.

• Common Output Configurations:

  • 48V Series: 48V 10A / 48V 12A / 48V 12.5A (600W Max)

  • 54V Series: 54V 11.1A (600W Max - Ideal for high-density PoE++ systems)

  • 24V Series: 24V 25A (Specialized high-current version)

  • 12V Series: 12V 50A (High-current bus power version)

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: ≥ 96% (at 230VAC full load).

• Ripple & Noise: < 480mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: XT90, Anderson Powerpole, 8-Pin PCIe, or High-Current Terminal Block (Essential for safe delivery of high currents).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 600W ultra-high capacity is optimized for the most energy-intensive commercial and technical environments:

• Data Center & AI: AI training modules, GPU-intensive server clusters, and high-performance edge computing nodes.

• Computing & IT: Micro-server arrays, high-capacity enterprise storage, and 100G network gateways.

• Network Infrastructure: Enterprise-grade PoE++ (802.3bt) injectors and 5G/6G communication hubs.

• Industrial Automation: Heavy-duty robotic controllers, automated testing systems, and high-torque motor drives.

• Large-Scale Displays: High-intensity LED video walls and professional broadcast-grade signage systems.

Professional Safety Suite

• Active Over-Load Protection: Optimized to handle the massive transient spikes common in AI processing and motor startup.

• Intelligent OTP: Advanced Multi-point Thermal Protection to maintain safe operating temperatures in fanless environments.

• Ultra-Low Resistance DC Path: Utilizing industrial-grade 10AWG pure copper wiring and reinforced connectors to ensure minimal voltage drop and maximum efficiency.
