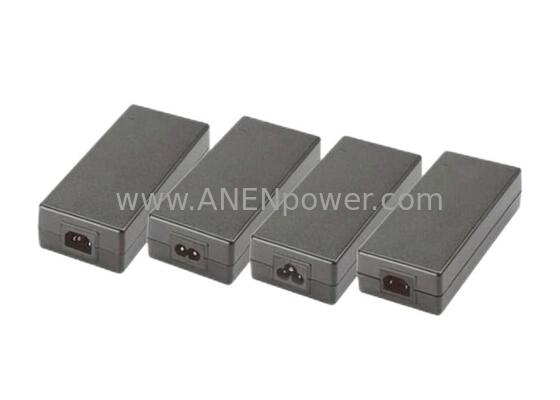

130W Desktop AC Adapter 19V 6.84A 24V 5.4A Power Supply for Monitor Industrial Equipment

130W Max Desktop AC Adapter: 19V 6.84A / 24V 5.4A High-Performance Power Supply

Product Overview

The 130W Max Desktop AC Adapter is a heavy-duty switching power supply engineered to support power-hungry professional displays and sophisticated industrial hardware. Delivering a robust 19V 6.84A or 24V 5.4A output, this adapter is designed to bridge the gap between standard office power bricks and industrial-grade power systems.

Featuring an upgraded thermal management system and high-capacity internal filtering, it ensures clean, stable DC delivery even during peak operational loads. Housed in a flame-retardant, impact-resistant desktop enclosure, it provides the reliability needed for 24/7 mission-critical applications, protecting sensitive electronic components from voltage fluctuations and electromagnetic interference.

Key Specifications

Our 130W series is built for durability and global compliance, incorporating an advanced safety suite for industrial-grade protection.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 130W Continuous Maximum.

• Common Output Configurations:

  • 19V Series: 19V 6.32A / 19V 6.84A (120W-130W Max)

  • 24V Series: 24V 5A / 24V 5.4A (120W-130W Max)

  • 12V Series: 12V 10A / 12V 10.8A (130W Max)

  • 48V Series: 48V 2.5A / 48V 2.7A (130W Max)

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Available for Class I and Class II applications).

• Efficiency: Meet DoE Level VI / CoC Tier 2 standards.

• Ripple & Noise: < 200mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: Standard 5.5mm x 2.1mm / 2.5mm or 4-Pin DIN (Highly recommended for currents above 5A).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The high-wattage 130W output is specifically balanced for power-intensive commercial and technical hardware:

• Professional Displays: 4K/8K ultra-wide monitors, high-brightness digital signage, and studio reference displays.

• Industrial Equipment: HMI panels, PLC controllers, automated sensors, and small-scale CNC machines.

• Network & IT: High-capacity NAS (Network Attached Storage), PoE injectors, and high-performance mini-workstations.

• Motion Control: Precision DC motor drivers, linear actuators, and 3D printing components.

• Security & Surveillance: 16/32-channel NVR systems and high-power PTZ cameras.

Professional Safety Suite

• Over-Voltage & Over-Current Protection: Active monitoring to prevent damage to sensitive sensors.

• Short-Circuit Protection: Auto-recovery feature for uninterrupted industrial operations.

• Thermal Management: Optimized airflow design within the enclosure to maintain low surface temperatures during full-load use.
