170W Desktop AC Adapter 24V 7.08A 19V 8.9A Power Supply for Display System Industrial Control

170W Max Desktop AC Adapter: 24V 7.08A / 19V 8.9A High-Efficiency Power Solution

Product Overview

The 170W Max Desktop AC Adapter is a professional-grade power solution engineered for high-end visual systems and precision industrial controllers. Delivering a robust 24V 7.08A or a high-current 19V 8.9A, this adapter provides the stable, low-noise DC output required for Large-Format Displays, Digital Signage, and Industrial HMI Panels.

Built with high-frequency switching technology and premium internal components, it ensures exceptional voltage regulation and transient response. The fanless, durable enclosure is designed for excellent heat dissipation, making it ideal for 24/7 continuous operation in control rooms, production lines, or commercial environments. Whether powering a multi-screen display array or a sophisticated PLC system, this 170W unit offers the reliability and safety standards demanded by professional integrators.

Key Specifications

Engineered for global reliability and high-load stability, the 170W series incorporates advanced power filtering for sensitive electronic environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 170W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 7A / 24V 7.08A (168W-170W Max)

  • 19V Series: 19V 8.5A / 19V 8.9A / 19.5V 8.7A (160W-170W Max)

  • 12V Series: 12V 14A (168W Max - High-current specialized version)

  • 48V Series: 48V 3.54A (170W Max)

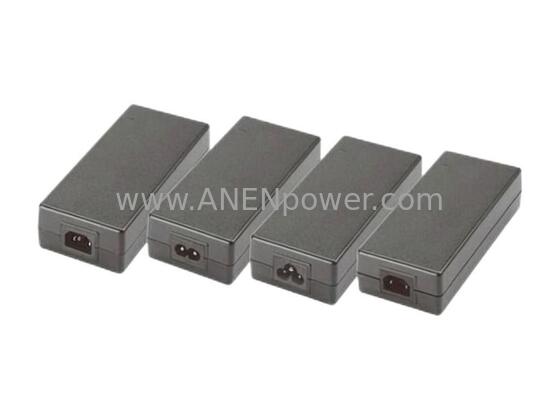

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: Meet DoE Level VI / CoC Tier 2 standards.

• Ripple & Noise: < 240mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: 4-Pin Power DIN or High-Current Terminal Block (Mandatory for safe delivery of currents above 7A).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 170W output is balanced for high-performance visual and control hardware:

• Display Systems: 4K/8K professional monitors, outdoor digital signage, and video wall controllers.

• Industrial Control: PLC systems, HMI touch screens, automated sensors, and robotic controllers.

• Computing & Workstations: High-end mini-PCs, POS terminals, and external storage arrays.

• Security & Surveillance: High-power NVR systems and multi-camera CCTV hubs.

• Visual FX & Lighting: Professional LED studio arrays and high-brightness projectors.

Professional Safety Suite

• Advanced OVP & OCP: Real-time monitoring to safeguard sensitive display panels and controllers.

• Short-Circuit Protection: Instant auto-recovery to prevent downtime in industrial workflows.

• Reinforced Enclosure: Fire-retardant (UL94 V-0) housing with an optimized thermal design for maximum component life.
