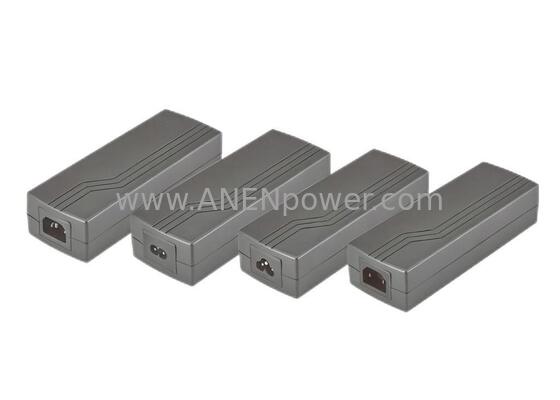

180W Desktop AC Adapter 24V 7.5A 12V 15A Power Supply for Automation System LED Display

180W Max Desktop AC Adapter: 24V 7.5A / 12V 15A High-Performance Solution

Product Overview

The 180W Max Desktop AC Adapter is a heavy-duty power solution specifically engineered for demanding industrial automation and high-intensity visual systems. Delivering a robust 24V 7.5A or a high-current 12V 15A, this adapter provides the necessary power density and stability for PLC Controllers, Automated Sensors, and High-Brightness LED Displays.

Built with high-spec industrial capacitors and an advanced EMI suppression system, it ensures clean, flicker-free power delivery even in environments with significant electrical interference. The fanless, rugged enclosure is designed for superior thermal dissipation, allowing for reliable 24/7 continuous operation. Whether powering a precision robotic arm or a large-scale digital signage array, this 180W unit delivers the sustained wattage and safety standards required by professional system integrators.

Key Specifications

Engineered for global reliability and high-load stability, the 180W series incorporates a comprehensive protection suite for industrial-grade performance.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 180W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 7.5A (180W Max)

  • 12V Series: 12V 15A (180W Max - Specialized high-current version)

  • 19V Series: 19V 9.47A / 19.5V 9.23A (180W Max)

  • 48V Series: 48V 3.75A (180W Max)

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: Meet DoE Level VI / CoC Tier 2 standards.

• Ripple & Noise: < 240mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: 4-Pin Power DIN, XT60, or High-Current Terminal Block (Mandatory for safe delivery of 15A currents).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 180W high-capacity output is optimized for power-hungry electronic and mechanical hardware:

• Automation Systems: PLC units, industrial HMI panels, automated sensors, and robotic controllers.

• LED & Visuals: Mid-to-large LED video walls, high-brightness digital signage, and professional studio lighting.

• Network & IT: High-capacity NAS storage, multi-port PoE injectors, and 5G communication nodes.

• Security & Surveillance: 32-channel NVR systems and high-power PTZ camera arrays.

• Motion Control: DC motor drivers, linear actuators, and 3D printing clusters.

Professional Safety Suite

• Active OVP & OCP: Real-time monitoring to protect sensitive LED drivers and controllers from voltage spikes.

• Short-Circuit Protection: Instant auto-recovery to maintain uptime in critical industrial workflows.

• Advanced Thermal Design: Fire-retardant (UL94 V-0) housing with optimized internal heat-sinking for maximum component longevity.
