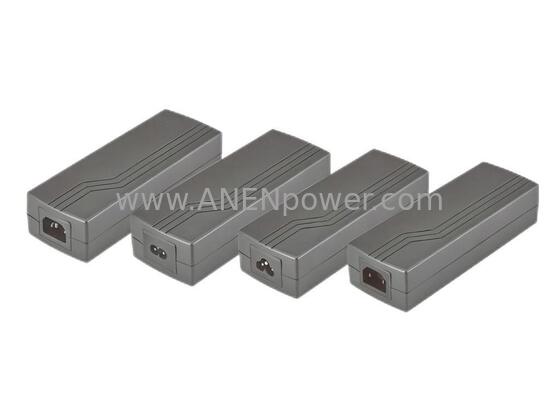

200W Desktop AC Adapter 24V 8.33A 12V 16.6A Power Supply for Industrial Control CNC Equipment

200W Max Desktop AC Adapter: 24V 8.33A / 12V 16.6A High-Power Solution

Product Overview

The 200W Max Desktop AC Adapter is a heavy-duty switching power supply specifically engineered for the rigorous demands of CNC machinery and advanced industrial automation. Delivering a potent 24V 8.33A or a high-current 12V 16.6A, this adapter provides the high-torque power and precision stability required for Stepping Motors, CNC Controllers, and Automated Actuators.

Built with industrial-grade long-life capacitors and a reinforced EMI/EMC filtering system, it ensures peak performance and signal integrity even in environments with heavy electrical noise. The fanless, rugged enclosure is designed for optimized thermal dissipation, allowing for reliable 24/7 continuous operation in factory settings. Whether powering a high-speed spindle controller or a complex industrial HMI panel, this 200W unit delivers the clean, sustained wattage required for modern precision engineering.

Key Specifications

Engineered for maximum reliability and global compatibility, the 200W series incorporates advanced power management for industrial-grade stability.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 200W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 8A / 24V 8.33A (200W Max)

  • 12V Series: 12V 16A / 12V 16.6A (192W-200W Max - High-current specialized version)

  • 19V Series: 19V 10.5A / 19.5V 10.2A (200W Max)

  • 48V Series: 48V 4.16A (200W Max)

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: Meet DoE Level VI / CoC Tier 2 standards.

• Ripple & Noise: < 240mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: 4-Pin Power DIN, XT60/XT90, or High-Current Terminal Block (Mandatory for safe delivery of 16.6A+ currents).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 200W high-current output is optimized for demanding mechanical and electronic systems:

• Industrial Control: PLC controllers, HMI touch screens, and industrial-grade sensor hubs.

• CNC Equipment: Mini CNC machines, laser cutters, 3D printing arrays, and engraving systems.

• Motion Control: High-torque stepping motors, linear actuators, and robotic arm controllers.

• LED & Visuals: High-brightness LED video walls and professional outdoor digital signage.

• Network & Security: High-power PoE++ injectors, multi-channel NVR systems, and 5G routers.

Professional Safety Suite

• Active OVP & OCP: Real-time monitoring to protect sensitive CNC controllers and motor drivers from voltage spikes.

• Short-Circuit Protection: Instant auto-recovery feature to maintain uptime in critical production workflows.

• Reinforced Enclosure: Fire-retardant (UL94 V-0) housing with an optimized internal heat-sinking design for maximum component longevity.
