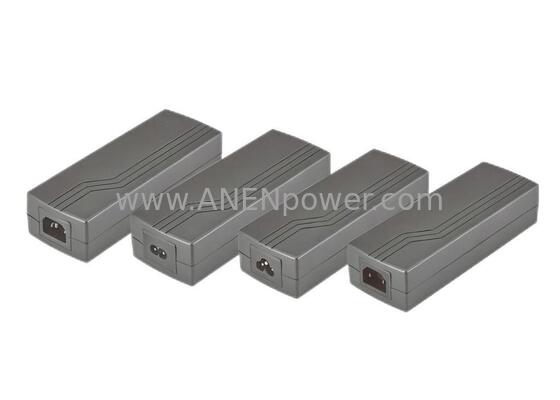

220W Desktop AC Adapter 24V 9.16A 48V 4.58A Power Supply for Automation Equipment Power System

220W Max Desktop AC Adapter: 24V 9.16A / 48V 4.58A High-Power Solution

Product Overview

The 220W Max Desktop AC Adapter is a heavy-duty power conversion solution engineered for the rigorous demands of industrial automation and complex power systems. Delivering a robust 9.16A at 24V or a stable 4.58A at 48V, this adapter provides the high-wattage foundation required for PLC Controllers, Multi-axis Robotic Arms, and Enterprise-grade Networking Hardware.

Built with premium industrial-grade components and an advanced thermal dissipation architecture, it ensures reliable 24/7 continuous operation even in high-load environments. The fanless design operates silently while maintaining strict voltage regulation, protecting sensitive electronic sensors and motor controllers from fluctuations. Whether integrated into an automated production line or a centralized power management system, this 220W unit delivers the sustained performance and safety standards demanded by global industrial integrators.

Key Specifications

Engineered for maximum reliability and global compatibility, the 220W series incorporates advanced EMI filtering and a comprehensive protection suite.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 220W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 9A / 24V 9.16A (220W Max)

  • 48V Series: 48V 4.5A / 48V 4.58A (220W Max)

  • 12V Series: 12V 18A (216W-220W Max - High-current specialized version)

  • 19V / 19.5V Series: 19.5V 11.28A (220W Max - For high-end workstations)

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: Meet DoE Level VI / CoC Tier 2 standards.

• Ripple & Noise: < 240mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: 4-Pin Power DIN, XT60, or High-Current Terminal Block (Mandatory for safe delivery of currents above 9A).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 220W high-capacity output is optimized for power-intensive technical and mechanical systems:

• Automation Equipment: PLC units, industrial HMI panels, and automated sensor clusters.

• Power Systems: Centralized DC power distribution, battery management systems (BMS), and backup power modules.

• Robotics & Motion: Multi-axis robotic controllers, high-torque motor drivers, and linear actuators.

• Network Infrastructure: High-power PoE++ (802.3bt) switches and 5G/6G communication nodes.

• Large-Scale Visuals: High-brightness LED video walls and professional digital signage arrays.

Professional Safety Suite

• Active OVP & OCP: Real-time monitoring to protect sensitive automation controllers from voltage spikes and overloads.

• Short-Circuit Protection: Instant auto-recovery feature to maintain system uptime in critical industrial workflows.

• Reinforced Enclosure: Fire-retardant (UL94 V-0) housing with an optimized internal heat-sinking design for maximum component longevity.
