230W Desktop AC Adapter 24V 9.58A 19V 12.1A Power Supply for High Power Device Monitor System

230W Max Desktop AC Adapter: 24V 9.58A / 19V 12.1A High-Power Solution

Product Overview

The 230W Max Desktop AC Adapter is a heavy-duty power conversion solution designed for high-performance computing, advanced monitoring systems, and power-hungry electronic devices. Delivering a robust 24V 9.58A or a massive 19V 12.1A, this adapter provides the high-wattage foundation required for High-End LCD Monitors, Digital Signage, and Multi-Channel Surveillance Systems.

Built with a high-efficiency power factor correction (PFC) circuit and industrial-grade internal components, it ensures stable, low-noise DC delivery even under maximum load. The fanless, rugged enclosure is engineered with an optimized heat-dissipation structure to maintain reliable 24/7 continuous operation in commercial or industrial environments. Whether integrated into a professional broadcast setup or a complex security control center, this 230W unit offers the sustained performance and global safety compliance demanded by premium device manufacturers.

Key Specifications

Engineered for maximum stability and global compatibility, the 230W series incorporates a comprehensive protection suite to safeguard high-value electronic assets.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 230W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 9.5A / 24V 9.58A (230W Max)

  • 19V / 19.5V Series: 19V 12.1A / 19.5V 11.8A (230W Max - Ideal for high-end workstations/gaming)

  • 12V Series: 12V 18A / 12V 19.1A (Specialized high-current version)

  • 48V Series: 48V 4.79A (230W Max)

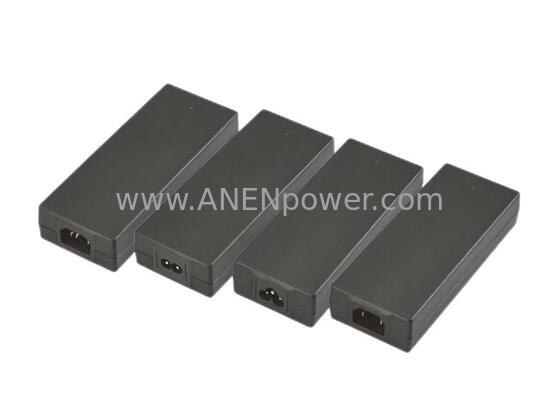

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: Meet DoE Level VI / CoC Tier 2 standards.

• Ripple & Noise: < 250mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: 4-Pin Power DIN, XT60, or 6-Pin Molex (Mandatory for safe delivery of currents exceeding 10A).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 230W high-capacity output is optimized for the most power-intensive visual and technical systems:

• Monitor Systems: Professional 4K/8K displays, ultra-wide studio monitors, and multi-screen control walls.

• Security & Surveillance: 64-channel NVR systems, high-power PTZ camera arrays, and centralized security hubs.

• High-Power Devices: External GPU enclosures, high-performance mini-PCs, and POS workstations.

• Industrial Controls: HMI panels, PLC controllers, and automated diagnostic hardware.

• Commercial Signage: Large-format indoor/outdoor digital billboards and information kiosks.

Professional Safety Suite

• Active OVP & OCP: Real-time monitoring to protect sensitive display panels and circuitry from voltage spikes.

• Short-Circuit Protection: Instant auto-recovery feature to ensure uninterrupted operation in critical monitoring environments.

• Advanced Thermal Management: Fire-retardant (UL94 V-0) housing with an optimized internal heat-sinking design for maximum component longevity.
