240W Desktop AC Adapter 24V 10A 48V 5A Power Supply for Industrial Equipment Battery Charging

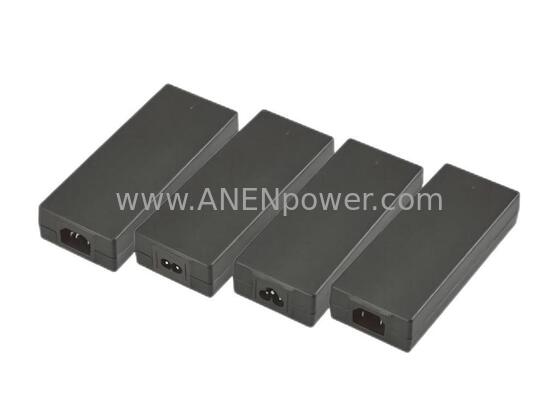

240W Max Desktop AC Adapter: 24V 10A / 48V 5A High-Performance Solution

Product Overview

The 240W Max Desktop AC Adapter is a heavy-duty power conversion engine designed for the most demanding industrial and charging applications. Delivering a precise 24V 10A or a stable 48V 5A, this adapter provides the massive current and voltage consistency required for Industrial Automation, Power Tools, and High-Capacity Battery Charging Systems.

Built with an advanced active power factor correction (PFC) architecture and high-spec industrial capacitors, it ensures an efficiency of up to 94%, minimizing energy waste and heat generation. The fanless, rugged enclosure is engineered with an optimized internal thermal-bridge design, allowing for reliable 24/7 continuous operation in challenging environments. Whether powering a multi-axis robotic controller or acting as a bulk charger for lithium battery packs, this 240W unit delivers the sustained wattage and global safety compliance demanded by professional engineers.

Key Specifications

Engineered for maximum reliability and global compatibility, the 240W series incorporates a comprehensive protection suite to safeguard both the power supply and the connected load.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 240W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 10A (240W Max - Industrial Standard)

  • 48V Series: 48V 5A (240W Max - Ideal for PoE++ and e-Mobility)

  • 12V Series: 12V 16A / 12V 20A (Specialized high-current version)

  • 36V Series: 36V 6.66A (240W Max)

  • 54V Series: 54.6V / 58.8V (Customized for Battery Charging)

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: Meet DoE Level VI / CoC Tier 2 standards.

• Ripple & Noise: < 240mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: 4-Pin Power DIN, XT60, or Terminal Block (Mandatory for safe delivery of 10A currents).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 240W high-capacity output is optimized for power-intensive mechanical and electronic systems:

• Industrial Equipment: PLC controllers, HMI panels, automated sensors, and robotic arm drives.

• Battery Charging: High-speed charging for E-bikes, drones, AGV (Automated Guided Vehicles), and portable power stations.

• Network & IT: High-power PoE++ (802.3bt) switches, micro-servers, and 5G communication hubs.

• Motor Control: High-torque DC motors, linear actuators, and 3D printing clusters.

• Visual Systems: Large-scale outdoor LED displays and professional broadcast-grade signage.

Professional Safety Suite

• Active OVP & OCP: Real-time monitoring to protect sensitive electronics and battery cells from voltage spikes.

• Short-Circuit Protection: Instant auto-recovery feature to ensure uninterrupted operation in industrial workflows.

• Battery Charging Optimization: Precision CC/CV (Constant Current / Constant Voltage) logic available for specialized charging applications.

• Reinforced Enclosure: Fire-retardant (UL94 V-0) housing with optimized heat-sinking for maximum component longevity.
