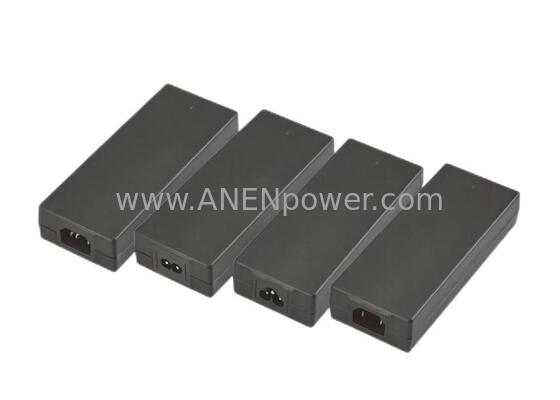

250W Desktop AC Adapter 24V 10.4A 48V 5.2A Power Supply for Automation System Industrial Machine

250W Max Desktop AC Adapter: 24V 10.4A / 48V 5.2A High-Power Solution

Product Overview

The 250W Max Desktop AC Adapter represents the high-performance standard for modern industrial power conversion. Delivering a massive 10.4A at 24V or a stable 5.2A at 48V, this adapter provides the high-wattage foundation required for Multi-axis Robotic Controllers, CNC Machinery, and Precision Automation Systems.

Engineered with an advanced active power factor correction (PFC) architecture and high-spec industrial components, it ensures superior efficiency and minimal heat generation. The fanless, rugged enclosure is designed for optimized thermal management, allowing for reliable 24/7 continuous operation in demanding factory environments. Whether integrated into an automated production line or a centralized industrial control hub, this 250W unit delivers the clean, sustained power and global safety compliance required by mission-critical hardware.

Key Specifications

Designed for maximum stability and global grid compatibility, the 250W series incorporates a comprehensive protection suite to safeguard sophisticated industrial electronics.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 250W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 10A / 24V 10.4A (250W Max)

  • 48V Series: 48V 5A / 48V 5.2A (250W Max)

  • 12V Series: 12V 20A (Specialized ultra-high current version)

  • 36V Series: 36V 6.94A (250W Max)

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: Meet DoE Level VI / CoC Tier 2 standards.

• Ripple & Noise: < 250mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: 4-Pin Power DIN, XT60, or 6-Pin Molex (Mandatory for safe delivery of currents exceeding 10A).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 250W high-capacity output is optimized for power-hungry mechanical and electronic systems:

• Automation Systems: PLC controllers, industrial HMI panels, and automated sensor clusters.

• Industrial Machines: Mini CNC centers, laser engraving systems, and 3D printing arrays.

• Robotics & Motion: High-torque DC motor drivers, linear actuators, and robotic arm controllers.

• Network Infrastructure: High-power PoE++ (802.3bt) switches and 5G communication hubs.

• Medical & Lab: Automated diagnostic equipment and high-capacity laboratory centrifuges.

Professional Safety Suite

• Active OVP & OCP: Real-time monitoring to protect sensitive controllers and sensors from voltage spikes.

• Short-Circuit Protection: Instant auto-recovery feature to maintain system uptime in critical production workflows.

• Advanced Thermal Management: Fire-retardant (UL94 V-0) housing with an optimized internal heat-sinking design for maximum component longevity.

• Industrial-Grade EMI Shielding: Minimized interference for high-precision signal processing.
