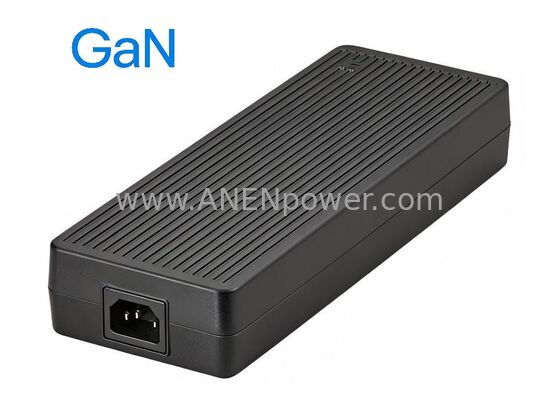

500W GaN AC Adapter, 24V 20.8A Output Desktop Power Supply for Laboratory Instruments

500W GaN Industrial Desktop AC/DC Power Supply: 24V 20.8A High-Precision Solution

Product Overview

The 500W GaN Laboratory Desktop AC/DC Power Supply represents the frontier of power density and efficiency for the most demanding scientific and diagnostic applications. By leveraging cutting-edge Gallium Nitride (GaN) technology, this unit delivers a massive 24V 20.8A output in a sleek, fanless form factor. It is the ultimate choice for Laboratory Instruments, High-Throughput Analyzers, and Automated Research Platforms.

Designed for zero-compromise stability, the GaN-driven architecture ensures an industry-leading efficiency of up to 96%, drastically reducing heat dissipation. This allows for a completely silent, maintenance-free operation, which is critical for maintaining the acoustic and thermal integrity of sensitive laboratory environments. With professional-grade EMI suppression and ultra-low ripple characteristics, it provides the "clean" power necessary for high-resolution sensors and delicate measurement probes.

Key Specifications

Our 500W GaN series is built for maximum reliability, offering a range of high-current voltage configurations optimized for mission-critical professional hardware. All configurations are strictly engineered to remain below 30A to ensure connector and thermal safety.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Input).

• Total Output Power: 500W Continuous Maximum.

• Common Output Configurations:

  • 19V Series: 19V 26.3A (500W Max - For high-performance lab workstations)

  • 24V Series: 24V 20.8A (500W Max - Laboratory Standard)

  • 28V Series: 28V 17.8A (500W Max - For precision medical/lab motor drives)

  • 36V Series: 36V 13.8A (500W Max - For laser and optical systems)

  • 48V Series: 48V 10.4A (500W Max - For telecommunication lab gear)

  • 54V Series: 54V 9.25A (500W Max - For high-power PoE++ network nodes)

• Ripple & Noise: < 240mVp-p (Typical) – Advanced suppression for zero interference with sensitive analog-to-digital (ADC) measurements.

• Industrial Safety Compliance: Fully compliant with IEC/EN/UL 62368-1 (Optional: IEC 61558-1/-2-16).

• GaN Efficiency: Ultra-high efficiency (Up to 96%) meeting and exceeding Level VI requirements.

• EMI/EMC Compliance: Meets Class B standards to ensure no electromagnetic interference with sensitive laboratory equipment.

• AC Inlet: IEC320-C14 (3-Pin grounded) standard for maximum electrical safety.

• Global Certifications: UL/cUL, CE, FCC, GS, CB, RoHS, REACH.

Ideal Applications

The 500W GaN precision output is optimized for high-accuracy electronic and mechanical systems:

• Laboratory Instruments: Large-scale spectrometers, automated liquid handling systems, and chromatography controllers.

• Diagnostic Platforms: High-speed blood chemistry analyzers, DNA sequencers, and cellular imaging hardware.

• Thermal Management: Precision Peltier (TEC) cooling/heating controllers and laboratory incubators.

• Precision Motion Control: High-torque stepper motor drivers for automated microscope stages and 3D bio-printers.

• Analytical Research: Multi-channel data acquisition (DAQ) systems and laser scanning equipment.

Professional Safety & Reliability Suite

• GaN Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, fully enclosed design that prevents the ingestion of dust and laboratory contaminants.

• Ultra-Low Ripple Suppression: Integrated multi-stage LC filtering prevents high-frequency noise from contaminating delicate signal paths, ensuring repeatable and accurate scientific data.

• Heavy-Duty Power Delivery: Equipped with professional high-current locking DC connectors (e.g., 6-Pin Power DIN or industrial-grade circular connectors) to safely manage the 26.3A maximum load without heat buildup.

• Dynamic Load Response: Optimized to handle rapid load changes and high inrush currents typical of motorized laboratory actuators.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
