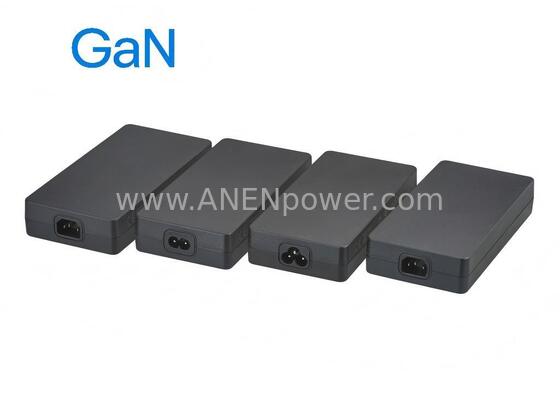

150W GaN Power Supply Unit, 24V 6.25A Output for CNC Control Unit

150W GaN Industrial Desktop AC/DC Power Supply: 24V 6.25A Precision Solution

Product Overview

The 150W GaN Industrial Desktop AC Adapter is a specialized power solution engineered for the high-precision requirements of computerized numerical control systems. By integrating advanced Gallium Nitride (GaN) power semiconductors, this unit achieves an efficiency of up to 94%, allowing for a completely fanless, silent, and slimline design. It delivers a stable 24V 6.25A output, providing the "clean" energy required for CNC Control Units, Digital Signal Processors (DSP), and PLC Modules.

Designed for 24/7 reliability in industrial environments, the GaN-driven architecture ensures ultra-fast transient response, which is critical for maintaining synchronization in multi-axis motion control. Its rugged desktop form factor offers a professional "plug-and-play" alternative to internal power units, ensuring that the sensitive control logic remains thermally isolated from the heat-generating motor drives and spindles within the CNC cabinet.

Key Specifications

Our 150W GaN industrial series is built for electronic integrity and long-term stability, offering a range of voltage configurations optimized for high-performance automation hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Input).

• Total Output Power: 150W Continuous Maximum.

• Common Output Configurations:

  • 12V Series: 12V 12.5A (150W Max - For high-current lighting/logic)

  • 19V Series: 19V 7.89A (150W Max - For industrial computing/HMI)

  • 24V Series: 24V 6.25A (150W Max - CNC & Automation Standard)

  • 36V Series: 36V 4.16A (150W Max - For precision automation)

  • 48V Series: 48V 3.12A (150W Max - For telecommunication hardware)

  • 54V Series: 54V 2.77A (150W Max - For PoE+ network nodes)

• Ripple & Noise: < 150mVp-p (Typical) – Advanced suppression to ensure zero interference with sensitive analog sensors and high-speed communication signals.

• Industrial Safety Compliance: Fully compliant with IEC/EN/UL 62368-1 (Optional: IEC 61558-1/-2-16).

• GaN Efficiency: High-efficiency architecture meeting and exceeding Level VI standards.

• EMI/EMC Compliance: Meets Class B standards for low electromagnetic interference in industrial and laboratory grids.

• AC Inlet: IEC320-C14 (3-Pin grounded) or C6 (3-Pin "Mickey Mouse") available.

• MTBF (Reliability): > 100,000 Hours, ensuring minimized downtime for critical production machinery.

Ideal Applications

The 150W GaN precision output is optimized for high-reliability CNC and automation systems:

• CNC Control Units: Motherboards, motion control cards, and signal processing units for CNC mills, lathes, and routers.

• Industrial Automation: PLC (Programmable Logic Controllers), HMI (Human-Machine Interface), and automated sensor arrays.

• Digital Fabrication: Precision laser cutters, desktop CNC mills, and high-performance 3D printers.

• Motion Feedback: Encoders, proximity sensors, and linear scales requiring ultra-stable 24V DC.

• Embedded Computing: Industrial PC nodes, IoT gateways, and machine vision controllers.

Professional Safety & Reliability Suite

• GaN Thermal Management: GaN technology minimizes energy loss as heat, enabling a fanless, fully enclosed design that prevents the ingestion of metallic dust or oil mist, which is common in CNC workshops.

• Ultra-Fast Transient Response: Optimized to maintain a stable 24V output during rapid load changes, preventing logic errors or system resets during simultaneous multi-axis movements.

• Advanced Ripple Suppression: Integrated multi-stage LC filtering protects the integrity of digital signals, eliminating "signal jitter" in high-speed communication between the controller and the motor drives.

• Secure Connectivity: Available with standard 5.5x2.5mm DC jacks or locking 4-pin Power DIN connectors to ensure a reliable connection under the vibrations of machining tools.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery features.
