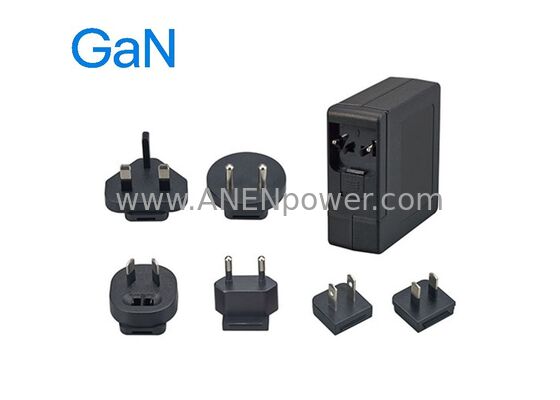

48W GaN AC Adapter, 12V 4A USB-C Power Supply for LED Controllers and IoT Devices

48W GaN Industrial AC/DC Power Supply: 12V 4A High-Current USB-C Solution

Product Overview

The 48W GaN High-Current Power Adapter is a specialized industrial-grade power solution that combines the compact efficiency of Gallium Nitride (GaN) technology with the universal convenience of the USB-C connector. Unlike standard consumer chargers, this unit is engineered to deliver a continuous and stable output, providing a high-density energy source for Professional LED Controllers, Industrial IoT Gateways, and High-Performance Embedded Systems.

By utilizing GaN power semiconductors, this adapter achieves an ultra-slim, fanless design that operates with significantly less heat than traditional silicon power supplies. This makes it ideal for integration into tight equipment enclosures or high-density deployments where thermal management is critical. The fixed output architecture ensures instant-on power without the delays or compatibility issues often associated with complex protocol handshakes.

Key Specifications

Our 48W GaN series is built for electrical endurance and signal integrity, specifically optimized for high-performance hardware across multiple voltage rails.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Input).

• Total Output Power: 48W Continuous Maximum.

• Output Voltage & Current Range:

  • 12V Series: 12V 4A (48W Max - Industrial & LED Standard)

  • 15V Series: 15V 3.2A (48W Max - For high-fidelity audio/visual)

  • 24V Series: 24V 2A (48W Max - Automation & Motor Control)

  • 36V Series: 36V 1.33A (48W Max - For precision analytical tools)

  • 48V Series: 48V 1A (48W Max - PoE & Telecom Standard)

• Connector Type: USB-C (Industrial-Grade reinforced connector).

• GaN Efficiency: High-efficiency architecture (up to 93%), meeting Level VI energy standards.

• Ripple & Noise: < 120mVp-p (Typical) – Advanced suppression ensures "clean" power for sensitive wireless sensors and flicker-free LED operation.

• Global Safety Compliance: Fully compliant with IEC/EN/UL 62368-1 (IT, AV & Industrial standard).

• EMI/EMC Compliance: Meets Class B standards, ensuring low interference with high-frequency communication modules.

• MTBF (Reliability): > 50,000 Hours, designed for 24/7 continuous industrial operation.

Ideal Applications

The 48W precision output is optimized for high-load smart infrastructure:

• LED Control Systems: Professional RGB/RGBW strip controllers, high-density pixel matrices, and PWM-driven architectural lighting.

• Industrial IoT Gateways: High-power cellular (5G/LTE) gateways, Edge computing nodes, and multi-protocol industrial hubs.

• Smart Security: Centralized automation hubs, motorized PTZ cameras, and high-definition smart security monitors.

• Embedded Computing: High-performance single-board computers (SBC), industrial Mini PCs, and automated sensor arrays.

• Specialized Hardware: 36V/48V PoE injectors, telecommunication nodes, and laboratory field instruments.

Professional Safety & Reliability Suite

• GaN Thermal Excellence: GaN technology minimizes internal energy loss, allowing for a compact, fanless enclosure that remains cool even during sustained full-load delivery.

• High-Current Signal Integrity: Integrated multi-stage LC filtering significantly reduces high-frequency switching noise, protecting sensitive wireless data (Wi-Fi, Zigbee, Bluetooth) from crosstalk.

• Line Loss Compensation: Specifically tuned to maintain a stable voltage rail at the end of the cable, compensating for voltage drops common in high-power DC transmission.

• Dynamic Load Handling: Engineered to manage the rapid current fluctuations and inrush demands of motorized actuators and high-speed cooling fans.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
