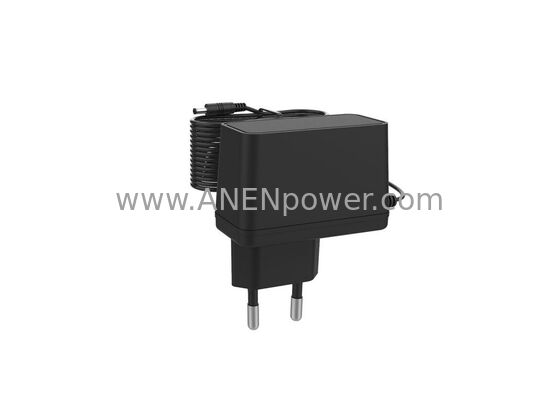

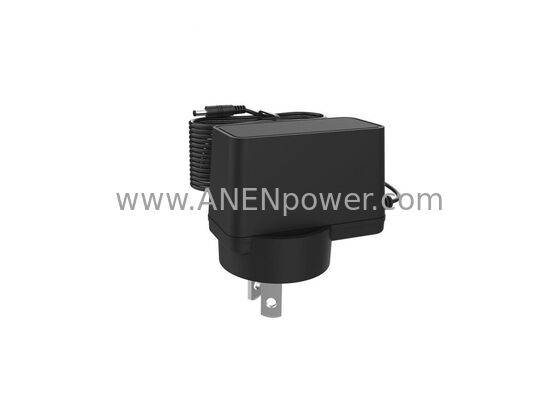

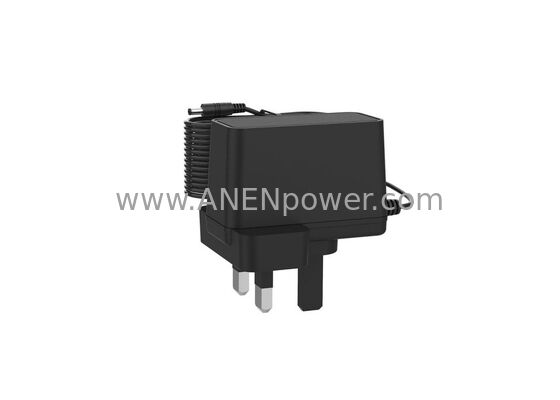

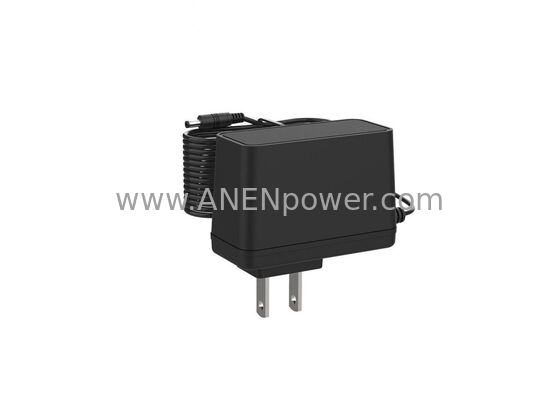

24W Max AC Adapter 12V 2A, 5V 3A for Raspberry Pi Clusters and Edge Computing Gateways

24W Max High-Performance AC/DC Power Adapter: Versatile DC Solution

Product Overview

The 24W High-Performance Power Adapter is a robust energy solution engineered for the intensive power profiles of Raspberry Pi clusters, industrial edge computing gateways, and professional IoT infrastructure. By delivering an increased current capacity—including a precision 5V 4A rail and a sustained 12V 2A output—this unit provides the necessary power overhead to drive Multi-Node SBC Clusters, High-Speed Edge Gateways, and AI Inference Modules without the risk of thermal throttling or system instability during peak computational loads.

The adapter’s refined, compact design achieves superior power density, maintaining a small footprint while delivering a stable 24W maximum output. Built with premium flame-retardant materials and an advanced thermal management system, it serves as a dependable power core for both professional developers and industrial deployments that require 24/7 continuous, high-reliability operation.

Key Specifications

Our high-performance series is built for electrical endurance and broad compatibility, offering a standardized platform for professional hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Input).

• Total Output Power: 24W Continuous Maximum.

• Output Voltage & Current Range:

  • 48V Series: 48V 0.5A (24W Max - Optimized for PoE & VoIP Infrastructure)

  • 36V Series: 36V 0.67A (24W Max - For Specialized LED & Industrial Logic)

  • 24V Series: 24V 1A (24W Max - For CCTV NVRs & Intercom Systems)

  • 12V Series: 12V 2A (24W Max - For High-Power Routers & LED Controllers)

  • 9V Series: 9V 2A (18W Max - For Network Nodes & Specialized Sensors)

  • 5V Series: 5V 4A / 3A (20W Max - Optimized for Raspberry Pi Clusters & IoT Hubs)

• Connector Type: USB-C / Micro-USB or Fixed DC Cable (5.5x2.1mm / 5.5x2.5mm) (Customizable).

• Energy Efficiency: Fully compliant with Level VI standards, minimizing standby power loss.

• Ripple & Noise: < 150mVp-p (Typical) – Ensuring stable wireless data transmission and precise logic signaling.

• Global Safety Compliance: Fully compliant with IEC/EN/UL 62368-1 (IT, AV & Industrial standard).

• EMI/EMC Compliance: Meets Class B standards for low electromagnetic interference in sensitive residential and commercial environments.

• MTBF (Reliability): > 50,000 Hours, designed for heavy-duty 24/7 operation.

Ideal Applications

The 24W precision output is optimized for high-performance digital and industrial systems:

• Computing Clusters: Multi-node Raspberry Pi clusters, Orange Pi arrays, and other single-board computer (SBC) stacks.

• Edge Computing: Industrial IoT edge gateways, localized AI inference modules, and data aggregation hubs.

• Networking Infrastructure: High-gain wireless routers, 4G/5G cellular gateways, and professional signal boosters.

• Industrial Automation: PLC logic controllers, industrial sensors, HMI panels, and automated actuator systems.

• Smart Home Infrastructure: Centralized automation panels, building intercom systems, and motorized smart security blinds.

Professional Safety & Reliability Suite

• Dynamic Load Handling: Specifically engineered to manage the rapid current fluctuations and inrush demands of high-speed processors and peripheral expansion modules.

• Advanced Thermal Dissipation: High-efficiency circuit design minimizes internal heat build-up, allowing for a fanless enclosure that remains stable even during high-load computational cycles.

• Voltage Precision Regulation: Advanced control circuitry maintains a rock-solid DC output, protecting delicate microprocessors and memory modules from voltage fluctuations.

• Signal Integrity Protection: Integrated multi-stage filtering significantly reduces high-frequency switching noise, protecting sensitive Wi-Fi, Bluetooth, and Zigbee signals from interference.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery features.
