24W Vertical Case UK Plug 12 Volt 2000mA AC DC Adapter 24Volt 1000mA Switching Power Supply

China 24W Vertical Case UK Plug 12 Volt 2000mA AC DC Adapter 24Volt 1000mA Switching Power Supply supplier
24W Vertical Case UK Plug 12 Volt 2000mA AC DC Adapter 24Volt 1000mA Switching Power Supply supplier 24W Vertical Case UK Plug 12 Volt 2000mA AC DC Adapter 24Volt 1000mA Switching Power Supply supplier

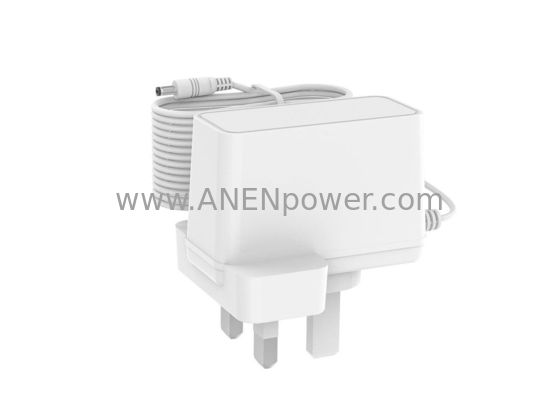

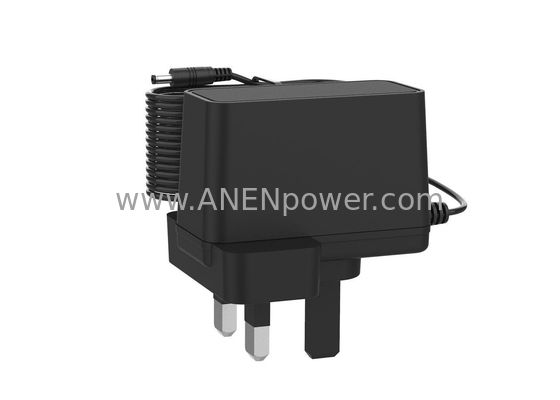

Large Image :  24W Vertical Case UK Plug 12 Volt 2000mA AC DC Adapter 24Volt 1000mA Switching Power Supply

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number: APS24K

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Detailed Product Description
Input: 100 ~ 240V AC , 50 / 60Hz Output Power: 24W Max
Output Range: 5 ~ 48V / 500mA ~ 3000mA Safety Approvals: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA
Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 Warranty: 3~5 Years
AC Plug: EU / US / UK / AU And Others For Your Selection Application: Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments

24W Vertical Case UK Plug 12 Volt 2000mA AC DC Adapter 24Volt 1000mA Switching Power Supply

APS24K is a 24W compact size highly reliable wall-mounted style single-output green adaptor series, which is compact and convenient for carry. APS24K is a class II power unit equipped with the standard 3-Pin UK plug, accepting the input range from 100VAC to 240VAC. The whole series provides different models with output voltages ranging between 5VDC and 48VDC that it can satisfy the demands for various types of consumer electronic devices.

APS24K is compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.​

1, Extreme small and space-saving, takes up one spot on power strip
2, AC input power suitable for the world
3, Meet DOE/CEC/ERP Level VI
4, Over voltage, over current, short circuit and over load protection
5, Per pieces adapter is 100% full load -burn in test (4 hours)
6, All the products have passed the full load test process aging
7, Low interference & noise
8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347
9, Certification: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA



Datasheet
Input 100 to 240V AC , 50 / 60Hz
Output power 24W max
Output Range 5 ~ 48V / 500mA ~ 3000mA
Protection Over load protection
Over voltage protection
Short circuit protection
Safety Approvals UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA
Standard EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347
Efficiency Compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5
AC plug EU / US / UK / AU and Others for your selection
Standard DC Connector 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside
Operating Temperature Range 0--40°C
Storage Temperature Range -20 --- 85°C
High Humidity Operation + 40 °C and 90 ~ 95% Humidity
Net weight About 120g per unit
MTBF 50,000 hours
Application Consumer electronic devices · Telecommunication devices · Office facilities · Industrial equipments
Packing PE bag + Carton or White Box + Carton or As your Request
