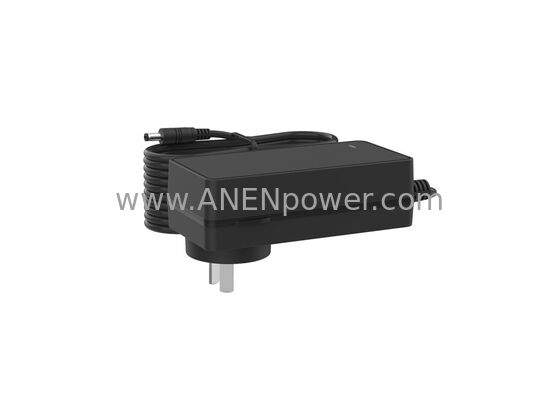

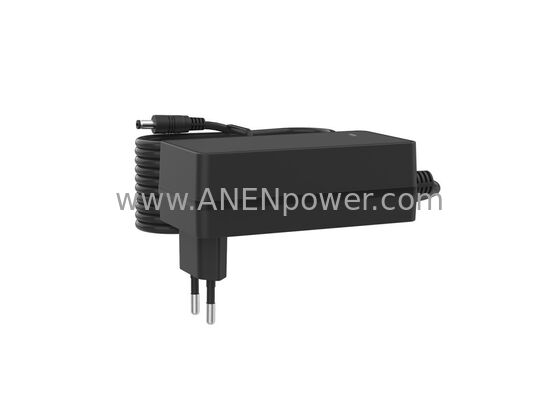

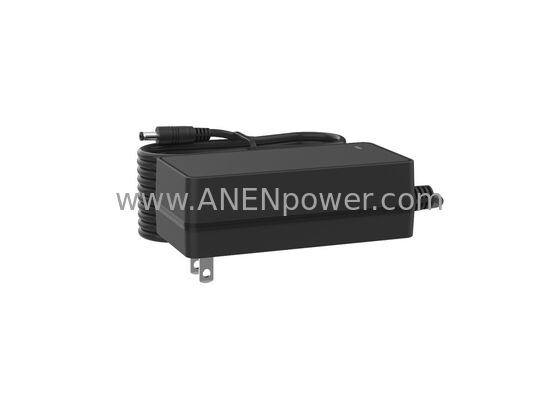

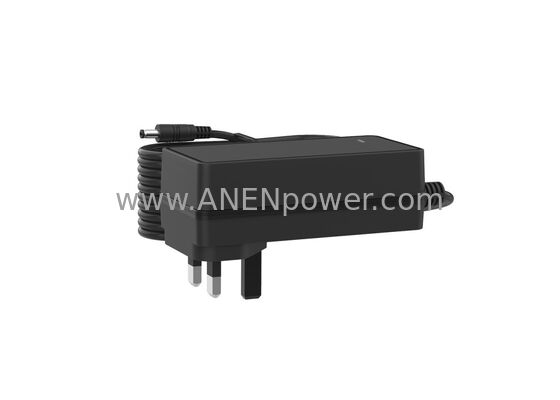

72W Max Switching Power Supply 24V 3A for Industrial Equipment and CNC Controllers

72W Max High-Efficiency Switching Power Supply: 24V 3A / 12V 6A Precision Solution

Product Overview

The 72W High-Performance Switching Power Adapter is a heavy-duty energy solution precision-engineered for the rigorous demands of industrial automation, CNC machining, and professional electronic infrastructure. Delivering a stable 24V 3A or 12V 6A output, this unit provides the essential power density for CNC Controllers, Industrial Equipment, and Automated Logic Arrays that require absolute thermal and electrical stability during 24/7 continuous operation.

Designed for industrial-grade resilience, the adapter features an optimized internal architecture and a premium thermal management system that remains cool even under sustained 72W full-load delivery. Whether used to power multi-axis motion controllers or professional architectural lighting, this power supply ensures minimal electrical noise and maximum long-term reliability, making it the premier choice for professional system integrators and industrial OEM/ODM deployments.

Key Specifications

Our industrial series is built for electrical endurance and signal integrity, offering a standardized platform for high-performance hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Input).

• Total Output Power: 72W Continuous Maximum.

• Output Voltage & Current Range:

  • 48V Series: 48V 1.5A (72W Max - Optimized for PoE & VoIP Infrastructure)

  • 36V Series: 36V 2A (72W Max - For Specialized Industrial Logic)

  • 24V Series: 24V 3A (72W Max - Precision Output for Industrial & CNC Controllers)

  • 19V Series: 19V 3.79A (72W Max - For Enterprise Mini PCs & Displays)

  • 12V Series: 12V 6A (72W Max - For High-End CCTV Systems & Routers)

• Connector Type: Fixed DC Cable (5.5x2.5mm / 5.5x2.1mm) or Custom Industrial Terminals.

• Energy Efficiency: Fully compliant with Level VI standards, minimizing standby power loss.

• Ripple & Noise: < 150mVp-p (Typical) – Ensuring flicker-free LED dimming and stable logic signaling.

• Global Safety Compliance: Fully compliant with IEC/EN/UL 62368-1 (IT, AV & Industrial standard).

• EMI/EMC Compliance: Meets Class B standards for low electromagnetic interference in sensitive industrial environments.

• MTBF (Reliability): > 100,000 Hours, designed for heavy-duty 24/7 industrial operation.

Ideal Applications

The 72W high-precision output is optimized for professional industrial and digital systems:

• Industrial Automation: 24V PLC logic controllers, high-precision industrial sensors, HMI panels, and automated actuator systems.

• CNC & Motion Control: Desktop CNC controllers, 3D printer mainboards (specialized high-efficiency), and multi-axis stepper motor drivers.

• LED Modules & Lighting: Professional 24V LED modules, high-density LED strips, and smart architectural dimming controllers.

• Networking Infrastructure: Managed network switches, high-gain 4G/5G gateways, and multi-bay external storage arrays (NAS).

• Security & Surveillance: High-power PTZ cameras with infrared/heating modules and multi-channel DVR/NVR systems.

Professional Safety & Reliability Suite

• Industrial-Grade Reliability: Boasting an MTBF of over 100,000 hours, this unit is built with high-specification internal components to withstand the rigors of continuous industrial use.

• Dynamic Load & Surge Management: Specifically engineered to handle the back-EMF and high inrush current demands of 24V relays, magnetic valves, and motorized CNC peripherals.

• Advanced Thermal Dissipation: High-efficiency circuit design minimizes internal heat build-up, allowing for a fanless, silent enclosure that remains stable even under sustained 72W full-load delivery.

• Voltage Precision Regulation: Advanced control circuitry maintains a rock-solid DC output, protecting delicate microprocessors and CNC chipsets from voltage fluctuations.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery features.
