24W Vertical USA Plug UL Certified AC DC Adapter - 12V 24V 36V Switching Power Supply (EN/IEC 61558/62368)
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240V AC , 50 / 60Hz | Output Power: | 24W Max |
|---|---|---|---|
| Output Range: | 5 ~ 48V / 500mA ~ 3000mA | Safety Approvals: | UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA |
| Standard: | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 | Warranty: | 3~5 Years |
| AC Plug: | EU / US / UK / AU And Others For Your Selection | Application: | Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments |

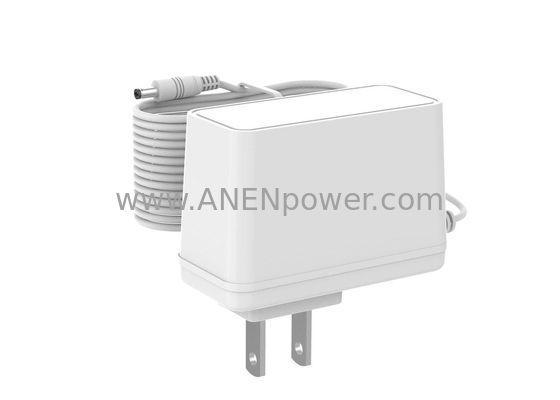

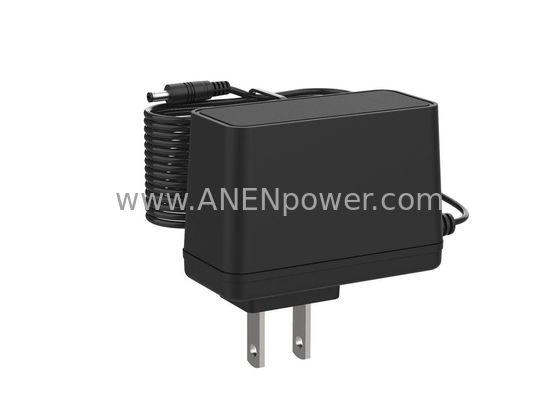

24W Vertical USA Plug UL Certified AC DC Adapter - 12V 24V 36V Switching Power Supply (EN/IEC 61558/62368)
This 24W vertical USA plug AC DC adapter is UL certified and fully compliant with EN/IEC 61558/62368 standards, meeting strict global safety and performance requirements. It offers versatile voltage options (12V, 24V, 36V) to power a wide range of devices, from industrial equipment and consumer electronics to daily-use gadgets.
The compact vertical design saves socket space, while the durable construction ensures stable, long-lasting power output. Equipped with a standard USA plug, it fits seamlessly into North American outlets—ideal for home, office, or industrial use. Trust in certified safety and multi-voltage flexibility for reliable AC/DC power support.
1, Extreme small and space-saving, takes up one spot on power strip
2, AC input power suitable for the world
3, Meet DOE/CEC/ERP Level VI
4, Over voltage, over current, short circuit and over load protection
5, Per pieces adapter is 100% full load -burn in test (4 hours)
6, All the products have passed the full load test process aging
7, Low interference & noise
8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347
9, Certification: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA
| Datasheet | |
| Input | 100 to 240V AC , 50 / 60Hz |
| Output power | 24W max |
| Output Range | 5 ~ 48V / 500mA ~ 3000mA |
| Protection | Over load protection |
| Over voltage protection | |
| Short circuit protection | |
| Safety Approvals | UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA |
| Standard | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 |
| Efficiency | Compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5 |
| AC plug | EU / US / UK / AU and Others for your selection |
| Standard DC Connector | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside |
| Operating Temperature Range | 0--40°C |
| Storage Temperature Range | -20 --- 85°C |
| High Humidity Operation | + 40 °C and 90 ~ 95% Humidity |
| Net weight | About 120g per unit |
| MTBF | 50,000 hours |
| Application | Water purifier, LED, Medical machine, CCTV camera, LCD, Set-top box, DVR, Router, Modem, etc . |
| Packing | PE bag + Carton or White Box + Carton or As your Request |
