36W Isolated Medical AC/DC Power Supply, 2×MOPP & Interchangeable Plug, 12V 3A / 24V 1.5A

36W Isolated Medical AC/DC Power Supply: 12V 3A / 24V 1.5A Ultra-Safe Solution

Product Overview

The 36W Isolated Medical Interchangeable Plug AC/DC Adapter is a premium, clinical-grade power solution engineered for high-performance medical applications where global portability and patient safety are paramount. Delivering a robust 12V 3A or 24V 1.5A output, this adapter is the premier choice for High-Resolution Patient Monitors, Advanced Infusion Systems, and Professional Diagnostic Hubs.

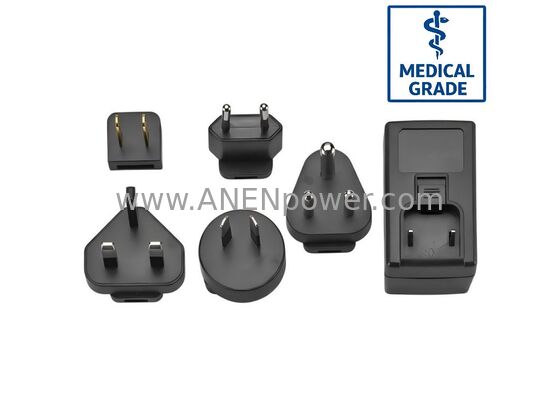

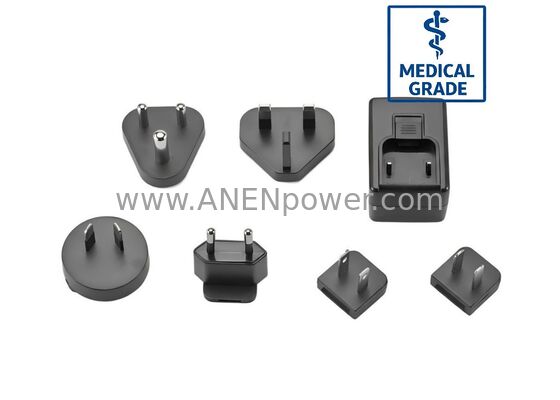

Equipped with a secure, tool-free Interchangeable AC Plug System (US/EU/UK/AU), this unit allows manufacturers to support international markets with a single high-reliability SKU. Built to the most stringent global safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), it features 2 x MOPP (Means of Patient Protection) and an ultra-low leakage current design. This ensures absolute safety for patients and clinicians, providing a secure and interference-free power link for sensitive life-critical electronics.

Key Specifications

Our 36W medical series maximizes power density and global compatibility while offering a range of precise voltage outputs for clinical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 36W Continuous Maximum.

• Standard Output Options:

  • 12V 3A (Optimized for desktop multi-parameter monitors and imaging displays).

  • 24V 1.5A (Ideal for motorized infusion drivers and clinical actuators).

• Other Available Outputs:

  • 12V 2.5A

  • 15V 2.4A

  • 18V 2A

  • 36V 1A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Global Portability: Interchangeable AC Plugs available for US, EU, UK, and AU markets.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

• Efficiency: Meets DoE Level VI and CoC Tier 2 high-efficiency energy standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 36W medical-grade output is optimized for high-sensitivity diagnostic and therapeutic electronics:

• Patient Monitoring: High-resolution bedside monitors, portable ultrasound displays, and telemetry stations.

• Infusion Systems: Volumetric infusion pumps, micro-syringe drivers, and automated feeding controllers.

• Therapy Equipment: High-power professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Motorized Rehabilitation Devices and advanced physical therapy systems.

• Diagnostic Imaging: Portable X-ray controllers and mobile nursing workstations.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Clinical-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive physiological signals (ECG, SpO2) and preventing electronic artifacts.

• Secure Locking Plug System: The interchangeable head mechanism is designed for high retention, preventing accidental disconnection in busy clinical wards or during transport.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
