48W GaN Medical AC/DC Adapter IEC60601 Certified 12V 4A / 24V 2A 2×MOPP Low Leakage Power Supply

48W GaN Medical Wall-Plug AC/DC Adapter: 12V 4A / 24V 2A Ultra-Safe Power Solution

Product Overview

The 48W GaN Medical AC/DC Adapter is a cutting-edge, clinical-grade power solution that leverages Gallium Nitride (GaN) technology to deliver high-wattage performance in a compact, highly efficient form factor. Delivering a robust 12V 4A or 24V 2A output, this adapter is the premier choice for High-Resolution Patient Monitors, Motorized Infusion Systems, and Professional Diagnostic Hubs.

Built to the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The integration of GaN semiconductors allows for 90%+ efficiency, significantly reducing heat generation while maintaining an Ultra-Low Leakage Current design. This ensures absolute safety for patients and clinicians, even in high-acuity environments where interference-free power is critical for life-monitoring electronics.

Key Specifications

Our 48W GaN medical series maximizes power density while offering a versatile range of voltage outputs for high-performance medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 48W Continuous Maximum.

• Standard Output Options:

  • 12V 4A (Optimized for desktop patient monitors and imaging displays).

  • 24V 2A (Ideal for motorized infusion drivers and clinical actuators).

• Other Available Outputs:

  • 15V 3.2A

  • 18V 2.66A

  • 19V 2.52A

  • 48V 1A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in the patient vicinity.

• GaN Architecture: High-efficiency switching for a cooler, more compact, and silent fanless design.

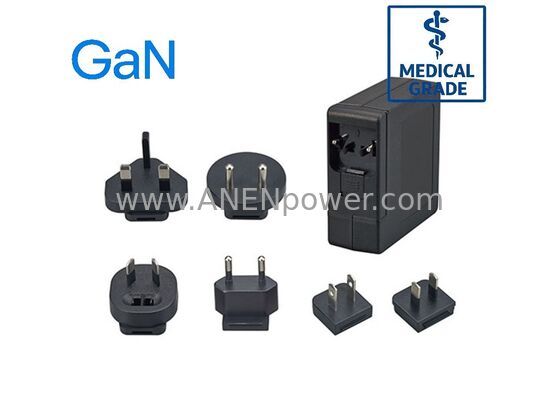

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 48W medical-grade output is optimized for high-power diagnostic and therapeutic electronics:

• Patient Monitoring: High-resolution bedside monitors, portable ultrasound systems, and medical nursing displays.

• Infusion Systems: Volumetric infusion pumps, syringe drivers, and automated feeding controllers.

• Therapy Equipment: Professional-grade Therapy Units and clinical Therapy Units.

• Rehabilitation: Motorized Rehabilitation Devices and advanced physical therapy systems.

• Respiratory Care: Professional-grade portable ventilators and high-flow oxygen concentrators.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Monitoring-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting sensitive physiological signals (ECG, SpO2) even under high current loads.

• Home-Healthcare Ready: Compliant with IEC 60601-1-11, the specific standard for medical equipment used in home environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
