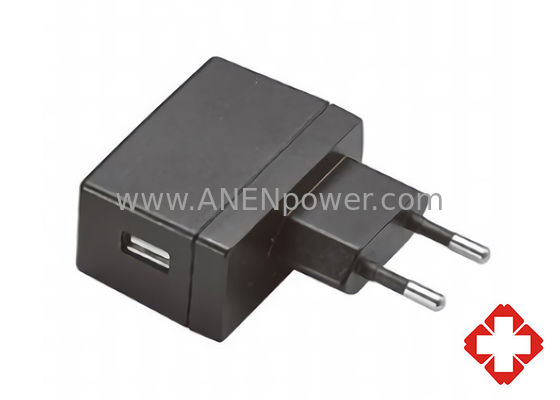

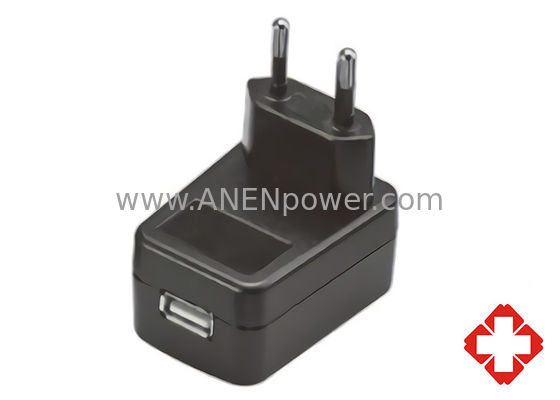

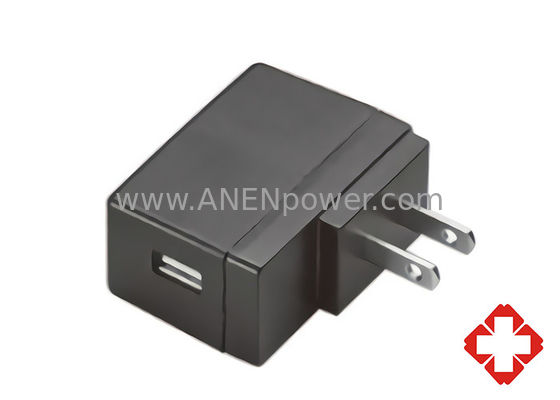

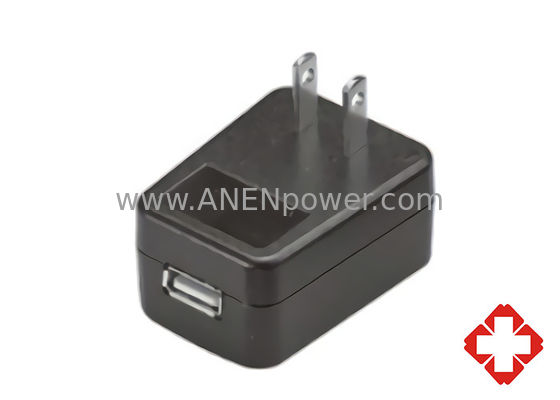

EN 60601 Certified Medical Power Adapter 5V 2A 12V 24V US Plug for Physiotherapy Rehabilitation Equipment Devices
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 12W Max |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 53L X 41W X 30H (mm) |
EN 60601 Certified Medical Power Adapter 5V 2A 12V 24V US Plug for Physiotherapy Rehabilitation Equipment Devices
EN/IEC 60601 certified medical-grade power adapter delivering triple output capability: 5V 2A USB port, 12V DC, and 24V DC power with US plug compatibility for professional physiotherapy and rehabilitation equipment. This safety-certified power supply provides stable, uninterrupted energy for therapeutic devices including ultrasound therapy machines, electrotherapy units, TENS therapy systems, and rehabilitation monitoring equipment. Engineered with medical-grade isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure reliable operation in clinical rehabilitation centers, physical therapy clinics, and home healthcare environments. The compact design features thermal protection and precise voltage regulation for continuous therapeutic sessions where power stability directly impacts treatment effectiveness and patient recovery outcomes. CE certified and built to meet stringent medical safety standards for professional healthcare use requiring certified performance and equipment reliability.
• Power Range: 12W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~24 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 53L x 41W x 30H (mm)
• Weight: 70g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM12UA | 12W | 5-8V | 0A | 2.4A | ±5% | ±1% | 100mV |
| APM12UB | 12W | 9-11V | 0A | 1.33A | ±5% | ±1% | 180mV |
| APM12UC | 12W | 12-17V | 0A | 1.0A | ±5% | ±1% | 250mV |
| APM12UD | 12W | 18-24V | 0A | 0.66A | ±5% | ±1% | 350mV |
