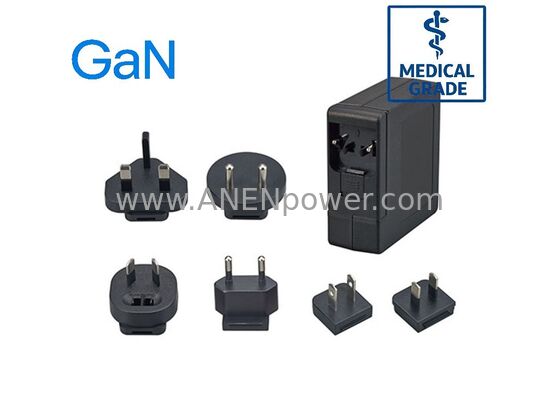

65W GaN Medical AC/DC Adapter High Efficiency 12V 5.42A / 24V 2.71A IEC60601 Certified Hospital Power Supply

65W GaN Medical Wall-Plug AC/DC Adapter: 12V 5.42A / 24V 2.71A Ultra-High Efficiency

Product Overview

The 65W GaN Medical AC/DC Adapter represents the next generation of clinical power technology. By integrating advanced Gallium Nitride (GaN) semiconductors, this adapter delivers high-density power—12V 5.42A or 24V 2.71A—in a significantly smaller, cooler, and more efficient form factor than traditional silicon-based chargers. It is the premier choice for Hospital-Grade Monitors, Portable Medical Computers, and Motorized Diagnostic Systems.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN architecture not only reduces heat generation but also ensures an ultra-low leakage current design, providing absolute safety in high-acuity clinical environments. Its compact, lightweight design is optimized for mobile nursing carts and portable diagnostic stations, providing a secure and high-efficiency power link for critical medical electronics.

Key Specifications

Our 65W GaN medical series maximizes power density while offering a versatile range of voltage outputs for high-performance medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 65W Continuous Maximum.

• Standard Output Options:

  • 12V 5.42A (Optimized for desktop patient monitors and imaging displays).

  • 24V 2.71A (Ideal for infusion pumps and motorized clinical actuators).

• Other Available Outputs:

  • 15V 4.33A

  • 19V 3.42A

  • 20V 3.25A

  • 48V 1.35A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 90%+ Efficiency and reduced thermal footprint.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care zones.

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• MTBF (Reliability): > 100,000 Hours, ensuring long-term durability for hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 65W medical-grade output is optimized for high-power diagnostic and therapeutic electronics:

• Hospital Power Supply: Bedside multi-parameter monitors, portable ultrasound systems, and medical PCs.

• Motorized Equipment: High-precision infusion pumps, syringe drivers, and automated feeding systems.

• Therapy Equipment: High-power professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Motorized Rehabilitation Devices and advanced physical therapy systems.

• Respiratory Care: Hospital-grade ventilators and high-flow oxygen concentrators.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Advanced Thermal Management: GaN technology reduces energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile environments.

• Medical-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting sensitive physiological signals even at high power loads.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
