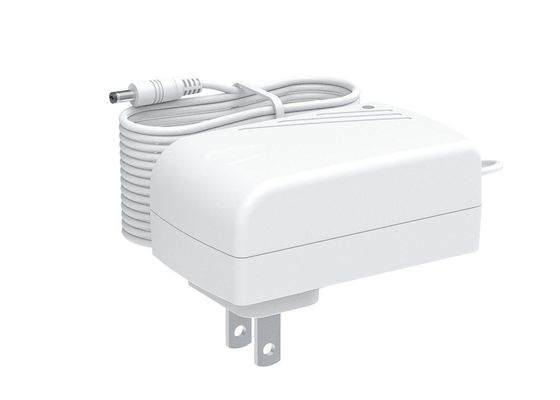

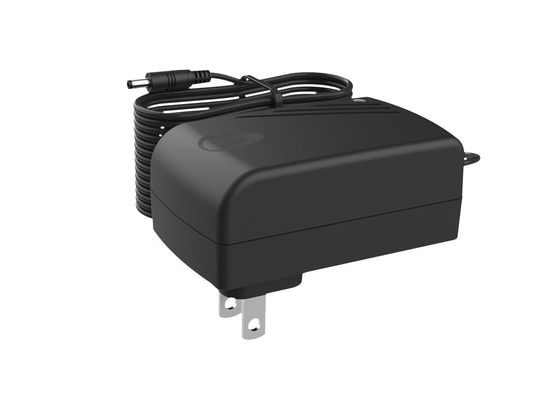

UL Certified 12V 24V AC DC Adapter 36V Switching Power Supply with EN/IEC 62368/61558
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240V AC , 50 / 60Hz | Output Power: | 24W Max |
|---|---|---|---|
| Output Range: | 5 ~ 48V / 500mA ~ 3000mA | Safety Approvals: | UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA |
| Standard: | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 | Warranty: | 3~5 Years |
| AC Plug: | EU / US / UK / AU And Others For Your Selection | Application: | Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments |
UL Certified AC/DC Adapter | 12V / 24V / 36V Switching Power Supply | EN/IEC 62368 / 61558 Compliant
Experience superior reliability and safety with our UL Certified AC/DC Adapter, available in 12V, 24V, and 36V output options. Built to meet the demanding requirements of various electronic devices, this adapter is also fully compliant with EN/IEC 62368 and EN/IEC 61558 standards, ensuring optimal performance for IT equipment, audio-visual devices, and industrial applications.
- Voltage Options: Choose from 12V, 24V, or 36V to power a wide array of devices.
- UL Certified: Meets the stringent UL safety standards, ensuring top-tier protection and reliability.
- EN/IEC 62368 & 61558 Compliant: Designed to meet global safety regulations for both low-voltage and industrial applications.
- Switching Power Technology: Maximizes energy efficiency while minimizing heat generation and power consumption.
- Robust Design: Engineered for long-lasting durability in diverse environments.
- Wide Application: Ideal for use in consumer electronics, industrial controls, and LED systems, ensuring flexible compatibility across industries.
Whether for industrial or consumer use, this UL-certified power supply provides the safety and performance required for a range of critical applications.
| Datasheet | |
| Input Range: | 100 to 240V AC , 50 / 60Hz |
| Output Power: | 24W max |
| Output Range: | 5 ~ 48V / 500mA ~ 3000mA |
| Protection: | Overload protection |
| Over voltage protection | |
| Short circuit protection | |
| Safety Approvals: | UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA |
| Standard: | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 |
| Efficiency: | Compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5 |
| AC plug: | EU / US / UK / AU and Others for your selection |
| Standard DC Connector: | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside |
| Operating Temperature Range: | 0--40°C |
| Storage Temperature Range: | -20 --- 85°C |
| High Humidity Operation: | + 40 °C and 90 ~ 95% Humidity |
| Net weight: | About 120g per unit |
| MTBF: | 50,000 hours |
| Application: | Consumer electronic devices · Telecommunication devices · Office facilities · Industrial equipments |
| Packing: | PE bag + Carton or White Box + Carton or As your Request |
