100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU

China 100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU supplier
100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU supplier 100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU supplier 100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU supplier 100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU supplier 100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU supplier

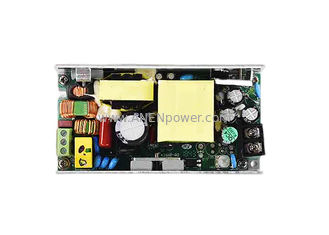

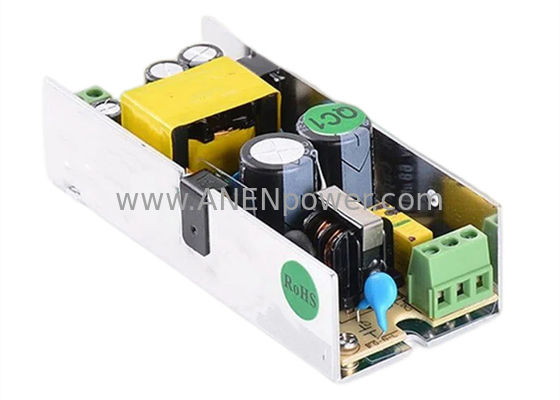

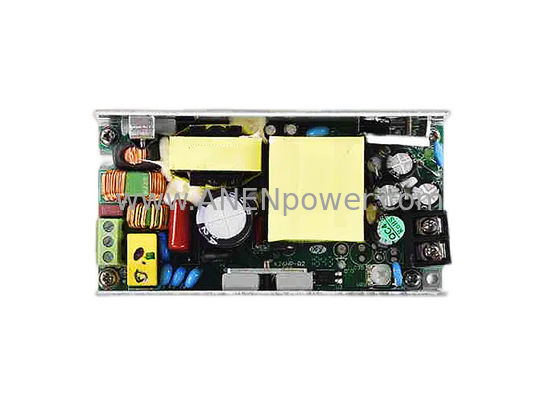

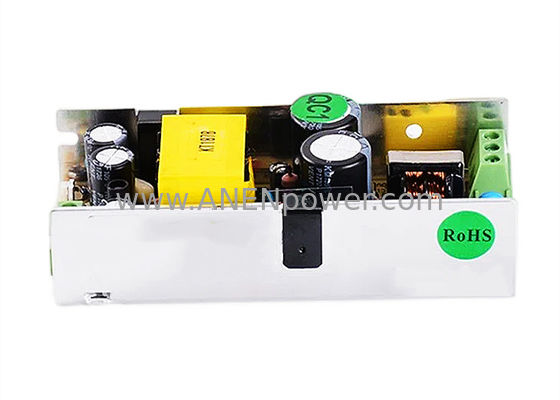

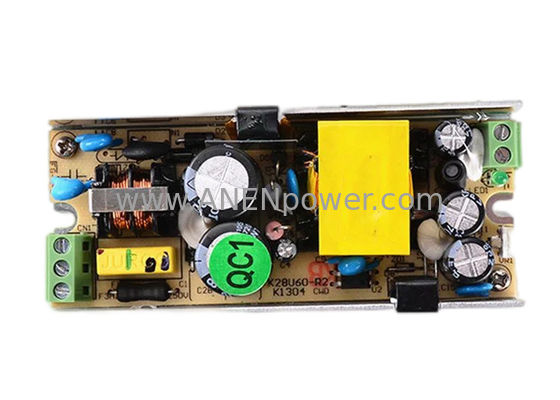

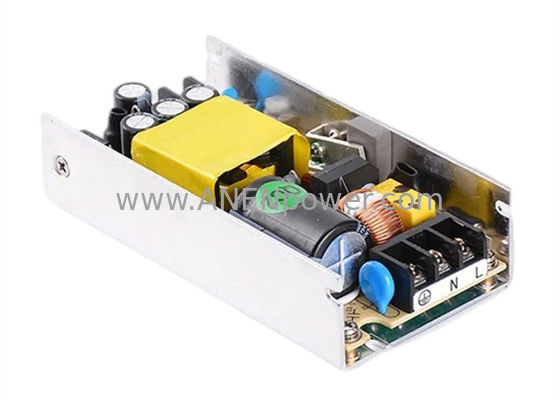

Large Image :  100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number: AP100F

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Detailed Product Description
Power: 100W Max. Input: 90~264V AC
Output Voltage: 5V/ 12V/ 24V/ 36V /48V Efficiency: ≥85%
Dimension: 105*44*27mm(L*W*H) Weight: 0.3Kg

100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU



Designed for maximum resistance to vibration, shock and temperature, our built-in power supply components set standards with their immense service life. In minimal installation spaces, they achieve peak values for efficiency and no-load losses and are also ideally suited for use in medical and measurement technology thanks to their minimal leakage current.


*Universal Input: 90~264V AC 47/63Hz
*Safety: UL/CUL/TUV/GS/CE/CCC compliance
*RoHS Compliance
*With PFC or without PFC for optional
*High efficiency & Low power consumption
*Short Circuit Protection
*Over Current Protection
*Over Voltage Protection
*Light Weight & Small size



SPECIFICATION AP100F-S5 AP100F-S12 AP100F-S24 AP100F-S36 AP100F-S48
OUTPUT DC Output Voltage 5V 12V 24V 36V 48V
Output Rated Current 20A 8.5A 4.0A 2.8A 2.0A
Rated Power 100W 102W 96W 100.8W 96W
Ripple & Noise 50mVp-p 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Dc Voltage Adjustable ±10% (for example:5V: -5%~+10%)
Voltage Tolerance ±1%
Line Regulation ±0.5%
Load Regulation ±0.5%
INPUT Voltage Range 90~264V AC
Input Current 0.3A @ 220V AC
Input Frequency 47~63 Hz
Efficiency 85%
Power Factor >0.99@110V, >0.95@220V
Inrush Current Cold start 15A/115V, 30A/230V
Leakage Current <0.3mA@240V AC
ENVIROMENT Working Temp., Humidity -20~85℃,10~95% RH
Storage Temp., Humidity -20~85℃,10~95% RH
Temp. Coefficient ±0.03%/ (0~50)
Vibration 10~500Hz, 2G 10min./1cycle, Period for 60min, Each axes
OTHER Protection Hiccup, Automatic recovery, Short Circuit Protection, Over Load Protection, Over Voltage Protection, Over Temp. Protection
Satety & EMC EN/IEC 62368, EN/IEC 60601, EN/IEC 61347
Dimension 105*44*27mm(L*W*H)
Weight 0.3Kg

100W 5V SMPS 12V AC DC Converter 24V Open Frame Switching Power Supply 36V Transformer 48V PSU


Advantages:

1, Custom designed power supply developed and manufactured by us.


2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.


3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.



4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.


5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.


6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.





FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.


2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.


3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.


4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.


5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong


6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.





Contact:
Your inquiry and mail will be quickly responded. If you have no ideas on choosing the right power supply, please do not hesitate to contact us: info@ANENpower.com
