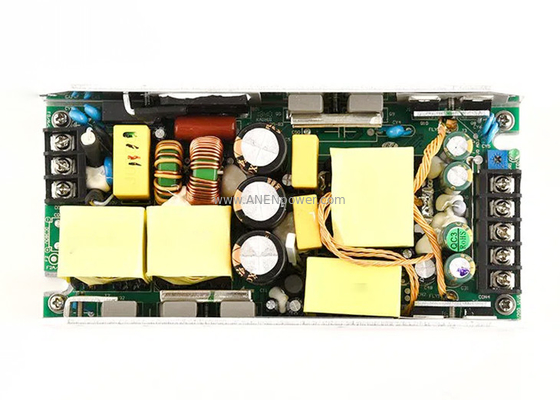

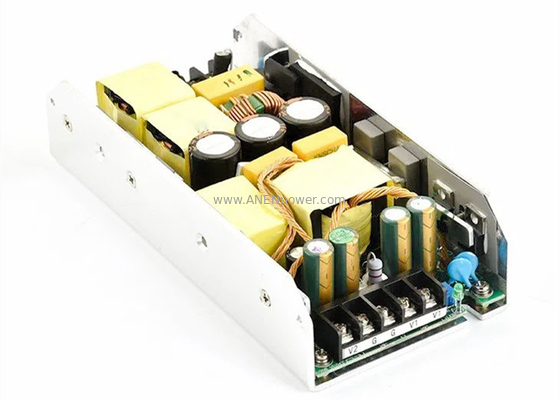

600W SMPS 24V Open Frame Switching Power Supply 36V Transformer 48V PSU 12V AC DC Converter

Large Image : 600W SMPS 24V Open Frame Switching Power Supply 36V Transformer 48V PSU 12V AC DC Converter

Product Details:

Place of Origin:	Shenzhen
Brand Name:	ANENpower
Certification:	UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number:	AP600F

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Please contact our Sales
Packaging Details:	PE bag / White box / Custom made
Delivery Time:	18~25 working days after receiving the deposit
Payment Terms:	50% deposit, 50% before dispatch
Supply Ability:	500,000.00pcs/month

Contact Now

Detailed Product Description

Power:	600W Max.	Input:	90~264V AC
Output Voltage:	12V/ 24V/ 36V /48V	Efficiency:	≥90%
Dimension:	1608240mm(LWH)	Weight:	0.68Kg

600W SMPS 24V Open Frame Switching Power Supply 36V Transformer 48V PSU 12V AC DC Converter

^{Designed for maximum resistance to vibration, shock and temperature, our built-in power supply components set standards with their immense service life. In minimal installation spaces, they achieve peak values for efficiency and no-load losses and are also ideally suited for use in medical and measurement technology thanks to their minimal leakage current.}

^{*Universal Input: 90~264V AC 47/63Hz

*Safety: UL/CUL/TUV/GS/CE/CCC compliance

*RoHS Compliance

*With PFC or without PFC for optional

*High efficiency & Low power consumption

*Short Circuit Protection

*Over Current Protection

*Over Voltage Protection

*Light Weight & Small size}

SPECIFICATION

AP600F-S24

AP600F-S30

AP600F-S32

AP600F-S36

AP600F-S48

OUTPUT

DC Output Voltage

24V

30V

32V

36V

48V

Output Rated Current

25A

20A

18.75A

16.66A

12.5A

Rated Power

240W

300W

320W

360W

480W

Ripple & Noise

240mVp-p

300mVp-p

320mVp-p

360mVp-p

480mVp-p

Dc Voltage Adjustable

±10% (for example:5V: -5%~+10%)

Voltage Tolerance

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

INPUT

Voltage Range

90~264V AC

Input Current

3A/230V, 6A/115V

Input Frequency

47~63 Hz

Efficiency

92%@230VAC, 90%@100VAC

Power Factor

>0.98@220V, >0.95@110V

Inrush Current

Cold start 15A/115V,30A/230V

Leakage Current

<0.5mA@240V

ENVIROMENT

Working Temp., Humidity

-20~85℃,10~95% RH

Storage Temp., Humidity

-20~85℃,10~95% RH

Temp. Coefficient

±0.03%/℃ (0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, Period for 60min, Each axes

OTHER

Protection

Hiccup, Automatic recovery, Short Circuit Protection, Over Load Protection, Over Voltage Protection, Over Temp. Protection

Satety & EMC

EN/IEC 62368, EN/IEC 60601, EN/IEC 61347

Dimension

160*82*40mm(L*W*H)

Weight

0.68Kg

600W SMPS 24V Open Frame Switching Power Supply 36V Transformer 48V PSU 12V AC DC Converter

Advantages:

^{1, Custom designed power supply developed and manufactured by us.}

^{2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.}

^{3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.}

^{4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.}

^{5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.}

^{6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.}

^FAQ:
^{1. Are you a trading company or factory?}
^{We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.}

^{2. Do you provide samples?}
^{Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.}

^{3. What’s your MOQ?}
^{Our MOQ is 1000pcs, but for the first order, there is no MOQ.}

^{4. How long is the lead time?}
^{It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.}

^{5. What’s your payment term and shipping term?}
^{Advanced T/T & FOB Shenzhen / Dongguan / Hongkong}

^{6. How long is the warranty?}
^{It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.}
