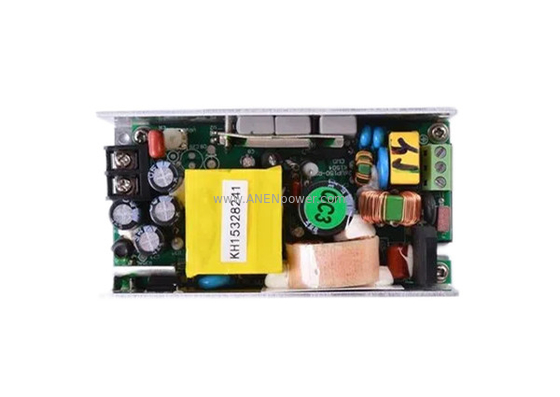

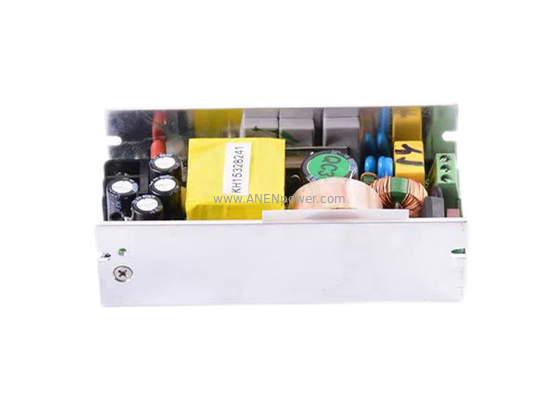

150W Open Frame SMPS 12V 24V 36V 48V AC DC Converter Switching Power Supply Transformer for LED, Industrial, IoT Use

Large Image : 150W Open Frame SMPS 12V 24V 36V 48V AC DC Converter Switching Power Supply Transformer for LED, Industrial, IoT Use

Product Details:

Place of Origin:	Shenzhen
Brand Name:	AnenPower
Certification:	UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number:	AP150F

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Please contact our Sales
Packaging Details:	PE bag / White box / Custom made
Delivery Time:	18~25 working days after receiving the deposit
Payment Terms:	50% deposit, 50% before dispatch
Supply Ability:	500,000.00pcs/month

Contact Now

Detailed Product Description

Power:	150W Max.	Input:	90~264V AC
Output Voltage:	5V/ 12V/ 24V/ 36V/ 48V/ 60V	Efficiency:	≥89%
Dimension:	1278238mm (LWH)	Weight:	0.51Kg

150W Open Frame SMPS 12V 24V 36V 48V AC DC Converter Switching Power Supply Transformer for LED, Industrial, IoT Use

This 150W Open Frame Switching Power Supply offers stable and reliable DC output with multiple voltage options including 12V, 24V, 36V, and 48V. Designed with high efficiency and compact dimensions, it is ideal for embedded systems and applications with space constraints.

Supporting a wide AC input range of 85~264V, this SMPS includes full protection features such as overvoltage, overload, and short circuit. Its open frame design allows easy integration into LED drivers, industrial controls, IoT devices, and communication systems.

Key Features:

Output voltages: 12V / 24V / 36V / 48V DC
Universal AC input: 85–264V
High efficiency and compact footprint
Protection: OVP, OCP, SCP, OTP
Open frame design for flexible installation
Industrial-grade reliability and performance

Typical Applications:
LED Lighting, IoT Devices, Industrial Automation, Smart Control Panels, Communication Equipment, Medical Electronics

SPECIFICATION

AP150F-D1212

AP150F-D2412

AP150F-D3612

AP150F-D4812

OUTPUT

DC Output Voltage

CH1: 12V

CH2: 12V

CH1: 24V

CH2: 12V

CH1: 36V

CH2: 12V

CH1: 48V

CH2: 12V

Output Rated Current

10A

2.5A

3.5A

2.5A

Rated Power

150W

Ripple & Noise

120mVp-p

240mVp-p

120mVp-p

360mVp-p

120mVp-p

480mVp-p

120mVp-p

DC Voltage Adjustable

±10% (for example:5V: -5%~+10%)

Voltage Tolerance

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

INPUT

Voltage Range

90~264V AC

Input Current

2.4A/115V,1.2A/230V

Input Frequency

47~63Hz

Efficiency

>93%@230V,＞89%@115V

Power Factor

>0.91

Inrush Current

Cold start 20A/230V

Leakage Current

<0.5mA@240V

ENVIROMENT

Working Temp., Humidity

-20~85℃,10~95% RH

Storage Temp., Humidity

-20~85℃,10~95% RH

Temp. Coefficient

±0.03%/℃ (0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, Period for 60min, Each axes

OTHER

Protection

Hiccup, Automatic recovery, Short Circuit Protection, Over Load Protection, Over Voltage Protection, Over Temp. Protection

Satety & EMC

EN/IEC 62368, EN/IEC 60601, EN/IEC 61347

Dimension

127*82*38mm (L*W*H)

Weight

0.5Kg

150W Open Frame SMPS 12V 24V 36V 48V AC DC Converter Switching Power Supply Transformer for LED, Industrial, IoT Use

Advantages:

^{1, Custom designed power supply developed and manufactured by us.}

^{2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.}

^{3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.}

^{4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.}

^{5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.}

^{6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.}

^FAQ:
^{1. Are you a trading company or factory?}
^{We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.}

^{2. Do you provide samples?}
^{Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.}

^{3. What’s your MOQ?}
^{Our MOQ is 1000pcs, but for the first order, there is no MOQ.}

^{4. How long is the lead time?}
^{It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.}

^{5. What’s your payment term and shipping term?}
^{Advanced T/T & FOB Shenzhen / Dongguan / Hongkong}

^{6. How long is the warranty?}
^{It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.}
