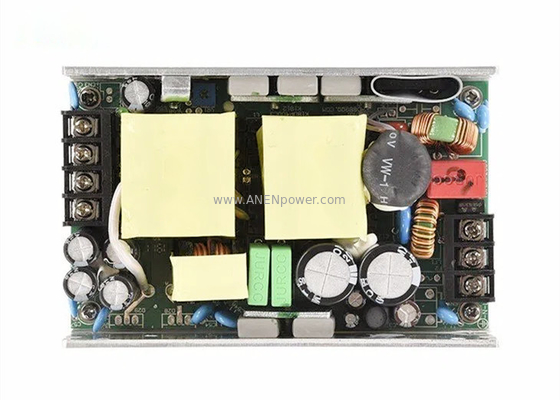

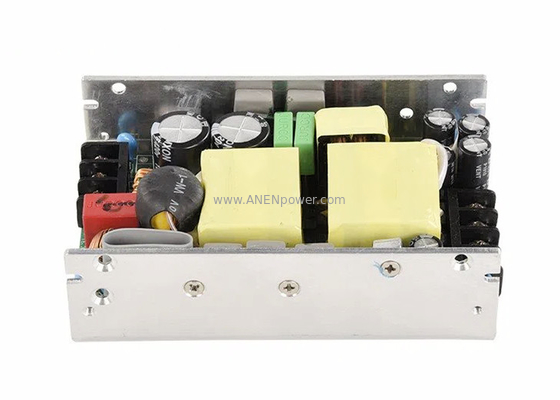

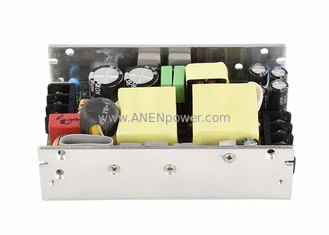

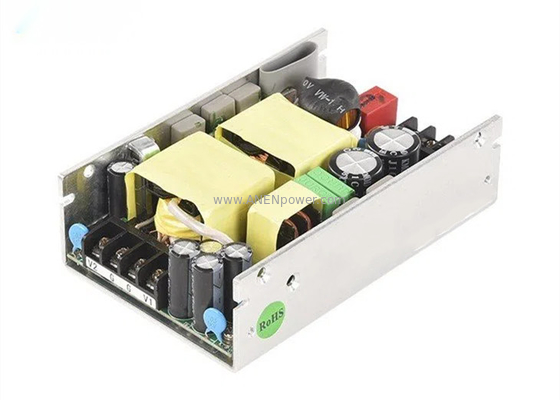

400W Open Frame SMPS 12V 24V 36V 48V Dual Output AC DC Converter Power Supply Transformer for LED, Industrial, CNC Use

Large Image : 400W Open Frame SMPS 12V 24V 36V 48V Dual Output AC DC Converter Power Supply Transformer for LED, Industrial, CNC Use

Product Details:

Place of Origin:	Shenzhen
Brand Name:	AnenPower
Certification:	UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number:	AP400F

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Please contact our Sales
Packaging Details:	PE bag / White box / Custom made
Delivery Time:	18~25 working days after receiving the deposit
Payment Terms:	50% deposit, 50% before dispatch
Supply Ability:	500,000.00pcs/month

Contact Now

Detailed Product Description

Power:	400W Max.	Input:	90~264V AC
Output Voltage:	5V/ 12V/ 24V/ 36V/ 48V/ 60V	Efficiency:	≥89%
Dimension:	1278240mm(LWH)	Weight:	0.6Kg

400W Open Frame SMPS 12V 24V 36V 48V Dual Output AC DC Converter Power Supply Transformer for LED, Industrial, CNC Use

This 400W Open Frame Switching Power Supply delivers stable and efficient DC output with dual voltage options, including 12V, 24V, 36V, and 48V. Designed for industrial-grade performance, it supports a wide input range (85~264V AC) and offers full protections for safe and long-term operation.

Its open frame design allows for easy integration in systems where space and cooling are critical, making it ideal for use in LED lighting, CNC machinery, automation systems, telecom equipment, and medical devices.

Key Features:

Dual output options: 12V / 24V / 36V / 48V DC
Wide AC input: 85–264V
High efficiency, low ripple, compact footprint
Protections: Overvoltage, Overload, Short Circuit, Overtemperature
Industrial-grade durability and long service life
Easy to install open frame structure

Applications:
LED Lighting Systems, CNC Equipment, Industrial Automation, Control Panels, Telecom Devices, Medical Instruments

SPECIFICATION

AP400F-D2412

AP400F-D3612

AP400F-D4812

AP400F-D4824

OUTPUT

DC Output Voltage

CH1: 24V

CH2: 12V

CH1: 36V

CH2: 12V

CH1: 48V

CH2: 12V

CH1: 48V

CH2: 24V

Output Rated Current

15A

10A

7.5A

1.7A

Rated Power

400W

Ripple & Noise

120mVp-p

360mVp-p

120mVp-p

480mVp-p

120mVp-p

480mVp-p

240mVp-p

Dc Voltage Adjustable

±10% (for example:5V: -5%~+10%)

Voltage Tolerance

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

INPUT

Voltage Range

90~264V AC

Input Current

6A/115V, 3A/230V AC

Input Frequency

47~63Hz

Efficiency

>93%@230V,＞89%@115V

Power Factor

>0.91

Inrush Current

COLD START 30A/230VAC, 15A@115VAC

Leakage Current

< 3.5mA/240VAC

ENVIROMENT

Working Temp., Humidity

-20~85℃,10~95% RH

Storage Temp., Humidity

-20~85℃,10~95% RH

Temp. Coefficient

±0.03%/℃ (0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, Period for 60min, Each axes

OTHER

Protection

Hiccup, Automatic recovery, Short Circuit Protection, Over Load Protection, Over Voltage Protection, Over Temp. Protection

Satety & EMC

EN/IEC 62368, EN/IEC 60601, EN/IEC 61347

Dimension

127*82*40mm(L*W*H)

Weight

0.6Kg

400W Open Frame SMPS 12V 24V 36V 48V Dual Output AC DC Converter Power Supply Transformer for LED, Industrial, CNC Use

Advantages:

^{1, Custom designed power supply developed and manufactured by us.}

^{2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.}

^{3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.}

^{4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.}

^{5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.}

^{6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.}

^FAQ:
^{1. Are you a trading company or factory?}
^{We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.}

^{2. Do you provide samples?}
^{Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.}

^{3. What’s your MOQ?}
^{Our MOQ is 1000pcs, but for the first order, there is no MOQ.}

^{4. How long is the lead time?}
^{It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.}

^{5. What’s your payment term and shipping term?}
^{Advanced T/T & FOB Shenzhen / Dongguan / Hongkong}

^{6. How long is the warranty?}
^{It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.}
