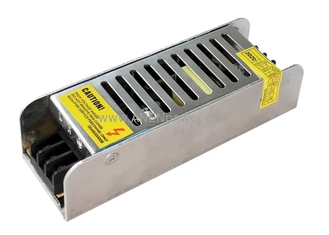

Aluminium Case 25W PSU | 5V 12V 24V Long Strip Enclosed Power Supply for Industrial, LED, and Electronic Applications
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 220-240V AC, 50~60Hz | Output Power: | 25W Max |
|---|---|---|---|
| Output Voltage: | 5V ~24V | Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
| Standard: | TUV BS EN/IEC62368 | Applicants: | Industrial Automation Control, Communication Equipment, Led Lighting, Industrial Control Equipment |
| Warranty: | 3~5 Years |
Aluminium Case 25W PSU | 5V 12V 24V Long Strip Enclosed Power Supply for Industrial, LED, and Electronic Applications
| SPEC | APE025-0505000 | APE025-1202008 | APE025-2401004 | |
| INPUT | Input Voltage: | 220-240V AC | ||
| Input Frequency: | 50Hz | |||
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load | |||
| AC Current: | 0.2A/115VAC 0.21A/230VAC | |||
| Leakage Current: | ＜0.25mA/240VAC | |||
| Efficiency: | 78% | 80% | 82% | |
| OUTPUT | DC Voltage: | 5V | 12V | 24V |
| Rated Current: | 4A | 2.08A | 1.04A | |
| Rated Power: | 20W | 25W | 25W | |
| Voltage Tolerance: | ±5.0% | ±5.0% | ±5.0% | |
| Ripple and Noise: | 75mVp-p | 120mVp-p | 200mVp-p | |
| Line Regulation: | ±3% | |||
| Load Regulation: | ±5% | ±5% | ±5% | |
| Setup, Rise, Hold Up time: | 500ms, 30ms/120ms 230VAC 1000ms, 30ms/25ms 115VAC at full load | |||
| ENVIRONMENT AL | Operating Temperature: | -20 ~ +60 (Refer to "Derating Curve") | ||
| Storage Temp: | -40℃ ~ 85℃ | |||
| Storage Humidity: | 10 ~ 95% RH | |||
| Working Humidity: | 20 ~ 95% RH non-condensing | |||
| PROTECTION | Over Load: | Above 105% rated output power | ||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over Voltage: | 5V:5.75~ 6.75V 12V:13.8 ~ 16.2V 15V:17.25 ~ 20.25V 24V:27.6 ~ 32.4V | |||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | |||
| SAFETY & EMC | Safety Regulations: | UL508, TUV BS EN/IEC62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved | ||
| Withstand Voltage: | I/P-O/P:3KV AC I/P-FG:2KV AC O/P-FG:0.5KV AC | |||
| Isolation Resistance: | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC Emission: | Compliance to BS EN/IEC 55032 (CISPR32), BS EN/IEC 61204-3 Class B, BS EN/IEC 61000-3-2,-3, EAC TP TC 020, CNS13438 Class B | |||
| EMC Immunity: | EN/IEC 61000-4-2,3,4,5,6,8,11 | |||
| OTHER | MTBF: | 500Khrs min. MIL-HDBK-217F(25℃) | ||
| Size: | 120*46*30mm | |||
| Weight: | 100g / pcs | |||
| Packaging: | 100PCS/CTN | |||
Advantages:
1, Custom designed power supply developed and manufactured by us.
2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.
3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.
4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.
5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.
6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.
FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.
5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
Contact:
Your inquiry and mail will be quickly responded. If you have no ideas on choosing the right power supply, please do not hesitate to contact us: info@ANENpower.com
