Durable Enclosed Power Supply 360W MAX | 12V/24V/36V/48V Selectable Output For Industrial Control Equipment

China Durable Enclosed Power Supply 360W MAX | 12V/24V/36V/48V Selectable Output For Industrial Control Equipment supplier

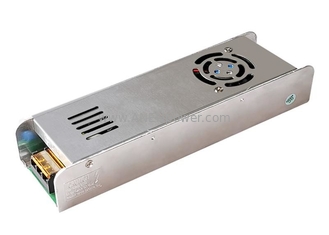

Large Image :  Durable Enclosed Power Supply 360W MAX | 12V/24V/36V/48V Selectable Output For Industrial Control Equipment

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number: APE360
Document: APE360L.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Detailed Product Description
Input: 220-240V AC, 50~60Hz Output Power: 360W Max
Output Voltage: 5V-48V DC Safety Approvals: UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard: TUV BS EN/IEC62368 Applicants: Industrial Automation Control, Communication Equipment, Led Lighting, Industrial Control Equipment
Warranty: 3~5 Years

Durable Enclosed Power Supply 360W MAX | 12V/24V/36V/48V Selectable Output For Industrial Control Equipment



This durable 360W MAX enclosed power supply offers selectable output voltages of 12V, 24V, 36V, and 48V, making it ideal for industrial control equipment applications. The robust metal casing ensures long-term durability and reliable performance, even in demanding environments. Its high efficiency and stable output ensure consistent power delivery, reducing energy consumption and optimizing system performance.



With a selectable output design, users can easily adjust the voltage to suit various industrial control equipment requirements, providing flexibility for different systems and devices. Whether for automation systems, industrial machinery, or other control equipment, this power supply delivers dependable and efficient performance.



Built to meet global quality and safety standards, it offers superior safety, minimizes electromagnetic interference, and provides excellent heat dissipation, making it a trusted solution for industrial control applications requiring high-performance power supplies.



SPEC APE360-05040000 APE360-12030000 APE360-24015000
INPUT Input Voltage: 220-240V AC
Input Frequency: 50Hz
Inrush Current: 65 Amps max. at 230VAC/50Hz,full load
AC Current: 0.2A/115VAC 0.21A/230VAC
Leakage Current: <0.25mA/240VAC
Efficiency: 78% 80% 82%
OUTPUT DC Voltage: 5V 12V 24V
Rated Current: 40A 30A 15A
Rated Power: 200W 360W 360W
Voltage Tolerance: ±5.0% ±5.0% ±5.0%
Ripple and Noise: 75mVp-p 120mVp-p 200mVp-p
Line Regulation: ±3%
Load Regulation: ±5% ±5% ±5%
Setup, Rise, Hold Up time: 500ms, 30ms/120ms 230VAC 1000ms, 30ms/25ms 115VAC at full load
ENVIRONMENT AL Operating Temperature: -20 ~ +60 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 10 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 5V:5.75~ 6.75V 12V:13.8 ~ 16.2V 15V:17.25 ~ 20.25V 24V:27.6 ~ 32.4V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: UL508, TUV BS EN/IEC 62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved
Withstand Voltage: I/P-O/P:3KV AC I/P-FG:2KV AC O/P-FG:0.5KV AC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC Emission: Compliance to BS EN/IEC 55032 (CISPR32), BS EN/IEC 61204-3 Class B, BS EN/IEC 61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC Immunity: EN/IEC 61000-4-2,3,4,5,6,8,11
OTHER MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
Size: 223*68*40mm
Weight: 215g / pcs
Packaging: 20PCS/CTN

Durable Enclosed Power Supply 360W MAX | 12V/24V/36V/48V Selectable Output For Industrial Control Equipment



Advantages:

1, Custom designed power supply developed and manufactured by us.


2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.


3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.



4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.

5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.


6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.





FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.


2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.


3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.


4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.


5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong


6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
