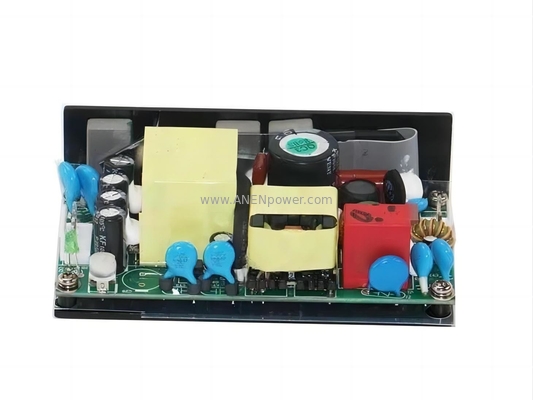

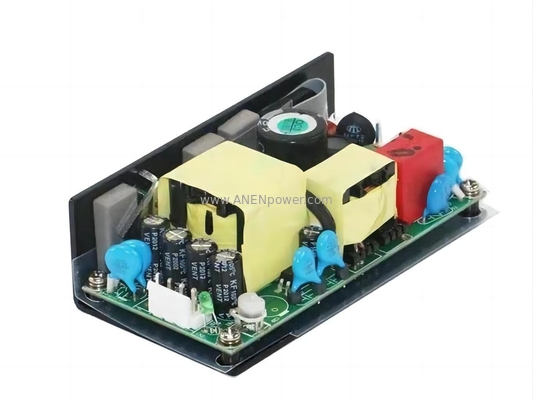

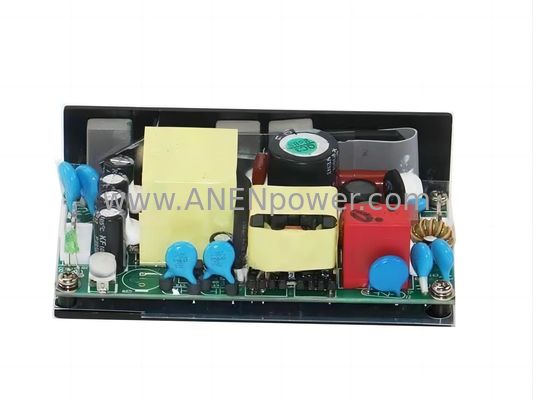

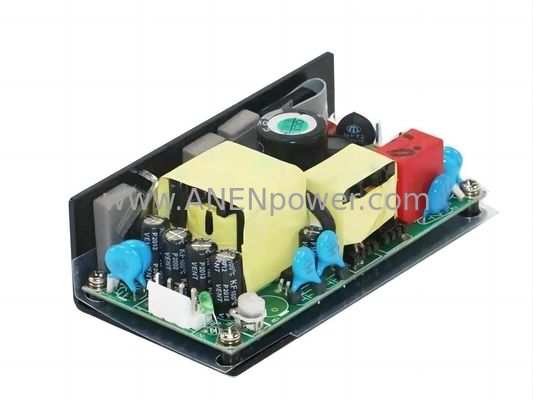

60W Open Frame Power Supply 5V 10A, 12V 5A, 15V 4A, 24V 2.5A for Industrial Control Application

60W Open Frame Power Supply: Multi-Voltage Industrial Series

Product Overview

The 60W Industrial Open Frame Power Supply is a high-density, small-form-factor AC/DC switching module engineered for high-reliability integration within industrial control cabinets and embedded electronic systems. Available in high-current 5V, standard 12V/15V, and automation-standard 24V configurations, this unit provides a rock-solid, ultra-stable power foundation for PLC CPU Modules, Industrial SBCs, and Smart Sensor Nodes.

Recognizing that space is often at a premium in modern industrial designs, this 60W series features an ultra-compact footprint with optimized thermal management. We offer Full Dimension Customization Services, allowing the PCB layout, mounting hole positions, and connector types (e.g., JST, Molex, or Screw Terminals) to be tailored to your proprietary equipment housing.

Key Specifications

Our industrial open-frame series is built with long-life components to ensure a decade-long service life in 24/7 mission-critical applications.

• Input Voltage: 90-264V AC (Full Range), 47-63Hz (Global Universal Input).

• Total Output Power: 60W Continuous Max.

• Output Voltage & Current Options:

  • 5V Series: 5V 10A (60W Max - For High-Density Logic & FPGA)

  • 12V Series: 12V 5A (60W Max - For Displays & Computing)

  • 15V Series: 15V 4A (60W Max - For Precision Analog & Audio)

  • 24V Series: 24V 2.5A (60W Max - Standard Industrial Automation)

• Efficiency: > 89% (Typical) – High efficiency to minimize heat buildup in small enclosures.

• No-Load Power Consumption: < 0.3W (Meets global green energy standards).

• Dimensions: Ultra-Compact Profile (Fully customizable to fit specific equipment housing).

• Safety Standards: Compliant with IEC/EN/UL 62368-1 (Industrial/ICT) and EN 61000 (EMC).

• Operating Temperature: -20°C to +70°C (With standard derating above 50°C).

• Ripple & Noise: < 100mVp-p – Essential for high-accuracy analog sensors and stable logic operations.

• MTBF: > 300,000 Hours, utilizing 105°C long-life industrial capacitors for heavy-duty cycles.

Ideal Applications

The 60W open frame series is the trusted choice for professional embedded ecosystems:

• Industrial Control: Powering compact PLC controllers, remote I/O modules, and automated testing jigs.

• Embedded Systems: High-reliability power for industrial Single Board Computers (SBC), IoT gateways, and edge computing nodes.

• Automation Sensors: Stable power for multi-channel laser sensors, ultrasonic flow meters, and vision system cameras.

• Precision Instruments: Low-noise power for laboratory measurement tools and specialized medical diagnostic logic.

• Smart Security: Powering access control hubs, electronic locking systems, and localized NVR units.

Professional Reliability & Performance Suite

• Ultra-Compact PCB Integration: Specifically designed for space-constrained applications, our layout maximizes power density while maintaining necessary safety isolation distances (Creepage/Clearance).

• Superior MTBF Performance: Utilizing high-specification industrial components and a derated design, this unit achieves >300,000 hours of reliable operation—far outperforming consumer-grade adapters.

• Industrial-Grade EMI/EMC: Built-in Class B EMI filtering ensures minimal electromagnetic interference, critical for preventing "noise" in sensitive analog measurement signals and high-speed data transmission.

• Optimized Transient Response: Fast feedback loops ensure the output remains stable even during rapid load fluctuations common in industrial logic switching.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery features.
